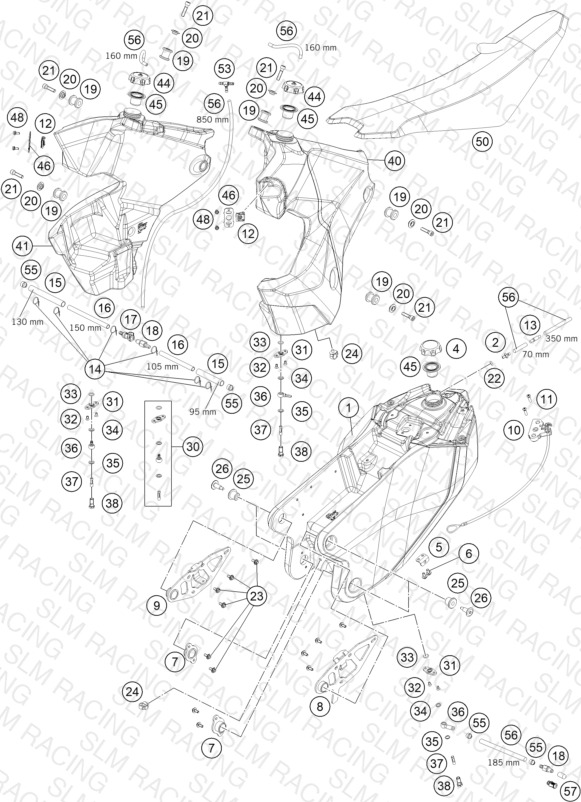

TANK, SEAT
Parts (45)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 7640701500028A REARTANK WHITE | REARTANK WHITE | 1 | — | Check availability | |
| 2 | 76407029000 BLEEDER SCREW M6 | BLEEDER SCREW M6 | 1 | — | Check availability | |
| 4 | 76307108000 FILLER CAP TANK RALLY | FILLER CAP TANK RALLY | 1 | — | Check availability | |
| 5 | 76407031000 STRAP SIDE STAND RUBBER | STRAP SIDE STAND RUBBER | 1 | — | Check availability | |
| 6 | 0024060136 HH collar screw M6x13 TX30 | HH collar screw M6x13 TX30 | 2 | — | Check availability | |
| 7 | 76407032000 STIFFENERS REARTANK CPL. | STIFFENERS REARTANK CPL. | 2 | — | Check availability | |
| 8 | 76407027000 SUPPORT REARTANK LEFT CPL. | SUPPORT REARTANK LEFT CPL. | 1 | — | Check availability | |
| 9 | 76407028000 SUPPORT REARTANK RIGHT CPL. | SUPPORT REARTANK RIGHT CPL. | 1 | — | Check availability | |
| 10 | 76407050000 SEAT LOCK | SEAT LOCK | 1 | — | Check availability | |
| 11 | 0991060202 Flat head screw DIN7991 M6X20 | Flat head screw DIN7991 M6X20 | 2 | — | Check availability | |
| 12 | 45007040052 Clip | Clip | 2 | — | Check availability | |
| 13 | 57307019000 VALVE FOR TANK BREATHING 02 | VALVE FOR TANK BREATHING 02 | 1 | — | Check availability | |
| 14 | 76311093280 CABLE TIE 280MM | CABLE TIE 280MM | 6 | — | Check availability | |
| 15 | 76407030000 HEAT PROTECTION HOSE | HEAT PROTECTION HOSE | 1 | — | Check availability | |
| 16 | 58507116100 HOSE OG.ECO 1TBSE 7X13MM | HOSE OG.ECO 1TBSE 7X13MM | 0 | — | Check availability | |
| 17 | 58507010500 CLUTCH F. FUEL HOSE CPC 03 | CLUTCH F. FUEL HOSE CPC 03 | 1 | — | Check availability | |
| 18 | 58507010300 PLUG F. FUEL HOSE CPC 2003 | PLUG F. FUEL HOSE CPC 2003 | 3 | — | Check availability | |
| 19 | 76407061000 RUBBER BUSHING | RUBBER BUSHING | 6 | — | Check availability | |
| 20 | 76407064000 BUSHING SLEEVE | BUSHING SLEEVE | 6 | — | Check availability | |
| 21 | 0912080303 AH SCREW DIN0912-M 8X30 | AH SCREW DIN0912-M 8X30 | 6 | — | Check availability | |
| 23 | 0024060156 HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 12 | — | Check availability | |
| 24 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 2 | — | Check availability | |
| 25 | 76407066000 RUBB.BEAR.BOX 14x24x35 L=24,5 | RUBB.BEAR.BOX 14x24x35 L=24,5 | 4 | — | Check availability | |
| 26 | 76407060000 BEARING SKREW | BEARING SKREW | 4 | — | Check availability | |
| 30 | 58507008000 FUEL CONNECTION CPL. 01 | FUEL CONNECTION CPL. 01 | 3 | — | Check availability | |
| 31 | 58507008050 FUEL FLANGE SHEET 01 | FUEL FLANGE SHEET 01 | 2 | — | Check availability | |
| 32 | 0991050102 Flat head screw DIN7991 M5X10 | Flat head screw DIN7991 M5X10 | 6 | — | Check availability | |
| 33 | 0770120020 O-RING 12,00X2,00 NBR 70 | O-RING 12,00X2,00 NBR 70 | 3 | — | Check availability | |
| 34 | 0603101420 COPPER GASKET 10,2X14X2 MM 01 | COPPER GASKET 10,2X14X2 MM 01 | 3 | — | Check availability | |
| 35 | 42013226000 CU-SEAL RING DIN7603-10X16X1 | CU-SEAL RING DIN7603-10X16X1 | 3 | — | Check availability | |
| 36 | 49138493000 RING COMPONENT 10/6MM | RING COMPONENT 10/6MM | 3 | — | Check availability | View Details |
| 37 | 58507008010 FUEL FLANGE-STRAINER 03 | FUEL FLANGE-STRAINER 03 | 3 | — | Check availability | |
| 38 | 58507025000 HOLLOW SCREW M10X1X24 RALLY 02 | HOLLOW SCREW M10X1X24 RALLY 02 | 3 | — | Check availability | |
| 40 | 7640701300028A FUEL TANK CPL. FRONT L/S | FUEL TANK CPL. FRONT L/S | 1 | — | Check availability | |
| 41 | 7640701400028A FUEL TANK CPL. FRONT R/S | FUEL TANK CPL. FRONT R/S | 1 | — | Check availability | |
| 44 | 76407108000 TANK CAP | TANK CAP | 2 | — | Check availability | |
| 45 | 59007009000 GASKET FOR FILLER CAP HIGH | GASKET FOR FILLER CAP HIGH | 3 | — | Check availability | |
| 46 | 76407013041 CLIP HOLDING PLATE | CLIP HOLDING PLATE | 2 | — | Check availability | |
| 48 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 4 | — | Check availability | |
| 50 | 76407040000 SEAT RALLY CPL. | SEAT RALLY CPL. | 1 | — | Check availability | |
| 53 | 60015022000 T-connector TS-6 03 | T-connector TS-6 03 | 1 | — | Check availability | |
| 55 | 58007117200 OETIKER HOSE CLAMP 13,3MM | OETIKER HOSE CLAMP 13,3MM | 6 | — | Check availability | View Details |
| 56 | 58507007001 Hose 5x8mm | Hose 5x8mm | 0 | — | Check availability | View Details |
| 57 | 81212016100 WASH CAP SET | WASH CAP SET | 0 | — | Check availability | |
| 22 | 0770035020 O-RING 3,5X2,00 NBR | O-RING 3,5X2,00 NBR | 1 | — | Check availability |
