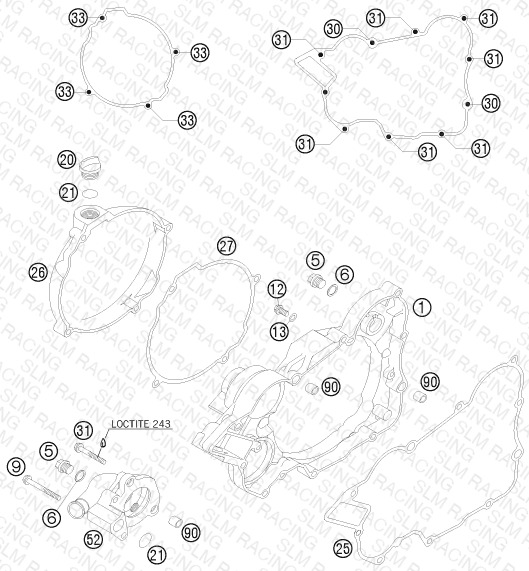

CLUTCH COVER
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 5033000114498 CLUTCH COVER CPL.125/200 02 | CLUTCH COVER CPL.125/200 02 | 1 | $235.06 | Backorder — Restocking | 1 |
| 5 | 0910100003 PLUG DIN0910-M 10X1 | PLUG DIN0910-M 10X1 | 1 | $4.99 | Available | 1 |
| 6 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | $2.99 | Available | 2 |
| 9 | 0015060503 HH COLLAR SCREW M 6X50 WS=8 | HH COLLAR SCREW M 6X50 WS=8 | 6 | $3.99 | Available | 6 |
| 12 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 | HH COLLAR SCREW M 6X12 WS=8 | 3 | $3.99 | Available | 3 |
| 13 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 20 | 58030020000 PLUG M 24X3 | PLUG M 24X3 | 1 | $6.15 | Available | 1 |
| 21 | 0770160030 O-RING 16,00X3,00 NBR 70 | O-RING 16,00X3,00 NBR 70 | 1 | $2.99 | Available | 1 |
| 25 | 50330025000 CLUTCH COVER GASKET 0,5MM | CLUTCH COVER GASKET 0,5MM | 1 | $17.81 | Available | 1 |
| 26 | 5033002600098 CLUTCH OUTS.COVER 125/200 01 | CLUTCH OUTS.COVER 125/200 01 | 1 | $96.68 | Available | 1 |
| 27 | 50330027000 CLUTCH OUTS.COVER GASKET 1MM | CLUTCH OUTS.COVER GASKET 1MM | 1 | $17.15 | Available | 1 |
| 30 | 0015060403 HH COLLAR SCREW M 6X40 WS=8 | HH COLLAR SCREW M 6X40 WS=8 | 1 | $3.99 | Available | 1 |
| 31 | 0015060353 HH COLLAR SCREW M 6X35 WS=8 | HH COLLAR SCREW M 6X35 WS=8 | — | $3.99 | Available | 1 |
| 33 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | $3.99 | Available | 5 |
| 52 | 50335052000 WATER PUMP COVER 125/200 98 | WATER PUMP COVER 125/200 98 | 1 | $98.66 | Available | 1 |
| 90 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | $2.99 | Available | 2 |
