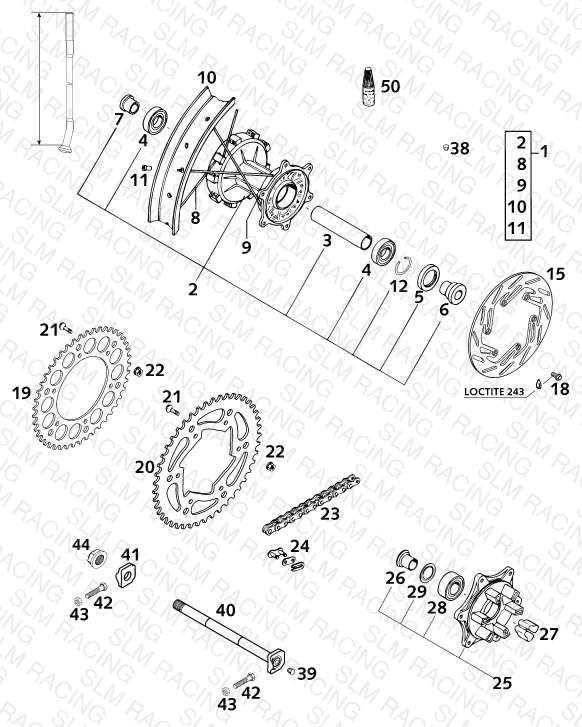

REAR WHEEL
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58410001244 | 1 | — | Check availability | ||
| 2 | 58410010044 REAR WHEEL HUB DAMPED CPL.'01 | REAR WHEEL HUB DAMPED CPL.'01 | 1 | — | Check availability | View Details |
| 3 | 58410011000 BUSHING SPACER TUBE L=98,3MM | BUSHING SPACER TUBE L=98,3MM | 1 | — | Check availability | |
| 4 | 0625062052 Grooved ball bear. 6205-2RSHC3 | Grooved ball bear. 6205-2RSHC3 | 2 | — | Check availability | |
| 5 | 0760325272 SHAFT SEAL RING 32X52X7 B | SHAFT SEAL RING 32X52X7 B | 1 | — | Check availability | |
| 6 | 58410016000 BUSHING FOR HUB | BUSHING FOR HUB | 1 | — | Check availability | View Details |
| 7 | 54610416300 BUSHING FOR REAR DAMPED HUB | BUSHING FOR REAR DAMPED HUB | 1 | — | Check availability | |
| 8 | 54610471000 SPOKE M5X223-10G 18'' | SPOKE M5X223-10G 18'' | 18 | — | Check availability | |
| 9 | 50310071197 SPOKE M5X197-10G 18'' DDE | SPOKE M5X197-10G 18'' DDE | 18 | — | Check availability | |
| 10 | 58010470100 REAR RIM 2,50X18'' DID | REAR RIM 2,50X18'' DID | 1 | — | Check availability | View Details |
| 11 | 58309072000 SPOKE NIPPLE M5-TA (8X21MM) | SPOKE NIPPLE M5-TA (8X21MM) | 36 | — | Check availability | View Details |
| 12 | 0472052200 CIRCLIP DIN0472-52X2 | CIRCLIP DIN0472-52X2 | 1 | — | Check availability | |
| 15 | 58010060600 REAR BRAKE DISK 220MM COUNTERS | REAR BRAKE DISK 220MM COUNTERS | 1 | — | Check availability | |
| 18 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 | SPECIAL SCREW M6X13 WS=8 10.9 | 6 | — | Check availability | |
| 19 | 58310051038 REAR SPROCKET 38-T | REAR SPROCKET 38-T | 0 | — | Check availability | |
| 19 | 58310051042 REAR SPROCKET 42-T | REAR SPROCKET 42-T | 0 | — | Check availability | |
| 19 | 58310151040 REAR SPROCKET 40-T | REAR SPROCKET 40-T | 0 | — | Check availability | |
| 19 | 58310151045 REAR SPROCKET 45-T | REAR SPROCKET 45-T | 0 | — | Check availability | View Details |
| 20 | 58310151048 REAR SPROCKET 48-T | REAR SPROCKET 48-T | 0 | — | Check availability | View Details |
| 20 | 58310151050 REAR SPROCKET 50-T | REAR SPROCKET 50-T | 0 | — | Check availability | View Details |
| 20 | 58310151052 REAR SPROCKET 52-T | REAR SPROCKET 52-T | 0 | — | Check availability | View Details |
| 21 | 54510052100 SPROCKET SCREW-AH M8X26 WS=6 | SPROCKET SCREW-AH M8X26 WS=6 | 6 | — | Check availability | View Details |
| 22 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 6 | — | Check availability | |
| 23 | 50010065100 | 1 | — | Check availability | ||
| 23 | 50010065101 X-R.CHAIN 5/8X1/4''/M W.LINK | X-R.CHAIN 5/8X1/4''/M W.LINK | 0 | — | Check availability | |
| 24 | 50010066100 MASTER LINK 5/8X1/4'' X-RING | MASTER LINK 5/8X1/4'' X-RING | 1 | — | Check availability | View Details |
| 25 | 58310050044 SPROCKET SUPPORT CPL. | SPROCKET SUPPORT CPL. | 1 | — | Check availability | View Details |
| 26 | 54610417300 BUSH. F.SPROCKETSUPPORT L=25MM | BUSH. F.SPROCKETSUPPORT L=25MM | 1 | — | Check availability | |
| 27 | 54610459000 Rubber damping block 91 | Rubber damping block 91 | 6 | — | Check availability | |
| 28 | 0625032057 GR. BALL BEARING 3205B-2RSRTNG | GR. BALL BEARING 3205B-2RSRTNG | 1 | — | Check availability | View Details |
| 29 | 54610018000 SEAL WASHER 3205 AV | SEAL WASHER 3205 AV | 1 | — | Check availability | View Details |
| 38 | 55003135000 PLUG FOR RIM | PLUG FOR RIM | 0 | — | Check availability | |
| 39 | 50210086000 Plug SFL16 | Plug SFL16 | 2 | — | Check availability | |
| 40 | 50210085044 WHEEL SPINDLE REAR CPLL=264MM | WHEEL SPINDLE REAR CPLL=264MM | 1 | — | Check availability | View Details |
| 41 | 56510084100 CHAIN TENSIONER '95 | CHAIN TENSIONER '95 | 1 | — | Check availability | View Details |
| 42 | 50203030090 HH SCREW M8X40 WS=10 | HH SCREW M8X40 WS=10 | 2 | — | Check availability | |
| 43 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | — | Check availability | |
| 44 | 50310099000 Hexagon nut M20x1.5 | Hexagon nut M20x1.5 | 1 | — | Check availability | |
| 50 | 6899785 LOCTITE 243 BLUE 5 ML | LOCTITE 243 BLUE 5 ML | 1 | — | Check availability |
