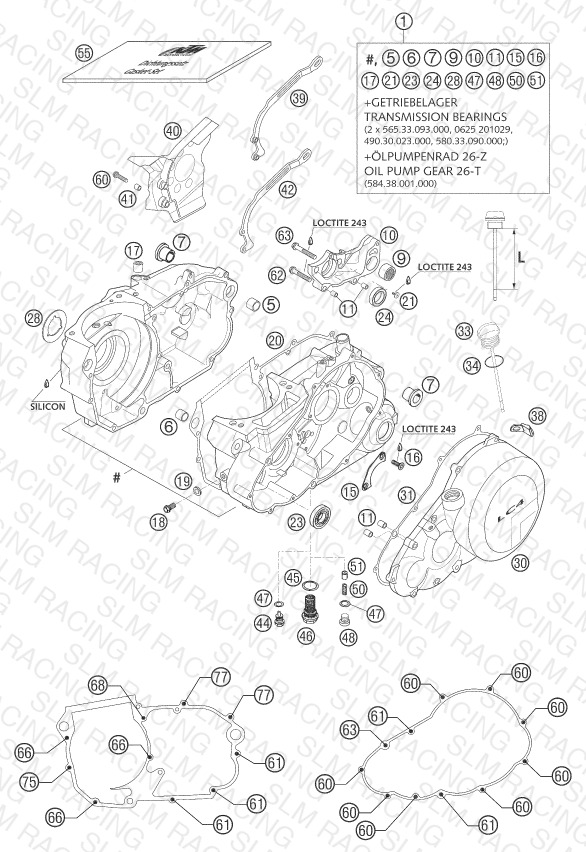

ENGINE CASE
Parts (42)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 5843000014430 ENGINE CASE CPL.W.TR.BEAR 2000 | ENGINE CASE CPL.W.TR.BEAR 2000 | 1 | — | Obsolete | View Details |
| 5 | 50130027000 DOWEL 19 X15,1X12 | DOWEL 19 X15,1X12 | 1 | — | Obsolete | View Details |
| 6 | 51030026100 DOWEL 17 X 13 X 12 | DOWEL 17 X 13 X 12 | 1 | $7.58 | Available | 1 |
| 7 | 50130010000 CRANK CASE BUSH | CRANK CASE BUSH | 2 | — | Obsolete | View Details |
| 9 | 58033097000 NEEDLE BEARING HK 2216 | NEEDLE BEARING HK 2216 | 4 | $16.49 | Available | 4 |
| 10 | 58330011000 SHIFT MECHANISM SUPPORT LC4'94 | SHIFT MECHANISM SUPPORT LC4'94 | 1 | — | Obsolete | View Details |
| 11 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | $2.99 | Available | 2 |
| 15 | 56530017000 RETAINING PLATE | RETAINING PLATE | 1 | — | Obsolete | View Details |
| 16 | 0991060163 FLAT HEAD SCR. DIN7991-M 6X16 | FLAT HEAD SCR. DIN7991-M 6X16 | 5 | $2.99 | Available | 5 |
| 17 | 50332095000 NEEDLE BEARING HK 1212 | NEEDLE BEARING HK 1212 | 2 | $9.45 | Available | 2 |
| 18 | 0015080163 HH COLLAR SCREW M 8X16 WS=10 | HH COLLAR SCREW M 8X16 WS=10 | 1 | $4.99 | Available | 1 |
| 19 | 0603082121 SEAL RING CU DIN7603- 8X12X1 | SEAL RING CU DIN7603- 8X12X1 | 2 | $3.99 | Available | 2 |
| 20 | 58430039100 ENGINE CASE GASKET LC4 02 | ENGINE CASE GASKET LC4 02 | 1 | $16.93 | Available | |
| 21 | 0985050103 OVAL HEAD SCR. DIN7985-M 5X10 | OVAL HEAD SCR. DIN7985-M 5X10 | 1 | $1.99 | Available | 1 |
| 23 | 0625160030 GROOVED BALL BEARING 16003 C3 | GROOVED BALL BEARING 16003 C3 | 1 | $24.19 | Available | 1 |
| 24 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | $51.69 | Available | 1 |
| 28 | 58440091000 STOP DISK 33 X 58 X 1,5 | STOP DISK 33 X 58 X 1,5 | 1 | — | Obsolete | View Details |
| 30 | 58330101100 CLUTCH COVER LC4 BLACK 99 | CLUTCH COVER LC4 BLACK 99 | 1 | — | Obsolete | View Details |
| 31 | 58330025000 CLUTCH COVER GASKET '94 | CLUTCH COVER GASKET '94 | 1 | $25.84 | Available | 1 |
| 33 | 58330020144 OIL DIPSTICK CPL. L=93MM '96 | OIL DIPSTICK CPL. L=93MM '96 | 1 | — | Obsolete | View Details |
| 34 | 0770160030 O-RING 16,00X3,00 NBR 70 | O-RING 16,00X3,00 NBR 70 | 1 | $2.99 | Available | 1 |
| 38 | 58333041000 BUMP RUBBER | BUMP RUBBER | 1 | — | Obsolete | View Details |
| 39 | 58730047000 CHAIN DAMPER SHEET 17Z DUKE'99 | CHAIN DAMPER SHEET 17Z DUKE'99 | 1 | — | Obsolete | View Details |
| 40 | 58430060000 * SPROCKET COVER BLACK '96 | * SPROCKET COVER BLACK '96 | 1 | — | Obsolete | View Details |
| 41 | 54613038150 BUSHING 6,5X8X11 | BUSHING 6,5X8X11 | 2 | $4.99 | Available | 2 |
| 42 | 58430047000 CHAIN DAMPERSHEET 17T LC4-E | CHAIN DAMPERSHEET 17T LC4-E | — | — | Obsolete | View Details |
| 42 | 58430047100 CHAIN DAMPERSHEET 15/16T LC4-E | CHAIN DAMPERSHEET 15/16T LC4-E | 1 | — | Obsolete | View Details |
| 44 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 45 | 58038017100 CU-SEAL RING DIN7603-22X27X2 | CU-SEAL RING DIN7603-22X27X2 | 1 | $3.99 | Available | 1 |
| 46 | 58038019100 OIL DRAIN PLUG M22X1,5 | OIL DRAIN PLUG M22X1,5 | 1 | — | Obsolete | View Details |
| 47 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 48 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | $4.99 | Available | 1 |
| 50 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | $6.15 | Available | 1 |
| 51 | 58038028000 VALVE PISTON D=10MM | VALVE PISTON D=10MM | 1 | $44.43 | Available | 1 |
| 55 | 58430099100 GASKET SET LC4 2002 | GASKET SET LC4 2002 | 1 | — | Obsolete | View Details |
| 60 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | $3.99 | Available | 5 |
| 61 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 1 | $3.99 | Available | 1 |
| 62 | 0015060353 HH COLLAR SCREW M 6X35 WS=8 | HH COLLAR SCREW M 6X35 WS=8 | — | $3.99 | Available | 1 |
| 63 | 0015060403 HH COLLAR SCREW M 6X40 WS=8 | HH COLLAR SCREW M 6X40 WS=8 | 1 | $3.99 | Available | 1 |
| 66 | 0015060553 HH COLLAR SCREW M 6X55 WS=8 | HH COLLAR SCREW M 6X55 WS=8 | 5 | — | Obsolete | View Details |
| 68 | 0015060653 HH COLLAR SCREW M 6X65 WS=8 | HH COLLAR SCREW M 6X65 WS=8 | 1 | $2.99 | Available | 1 |
| 75 | 0015060953 HH COLLAR SCREW M 6X95 WS=8 | HH COLLAR SCREW M 6X95 WS=8 | 1 | $3.99 | Available | 1 |
