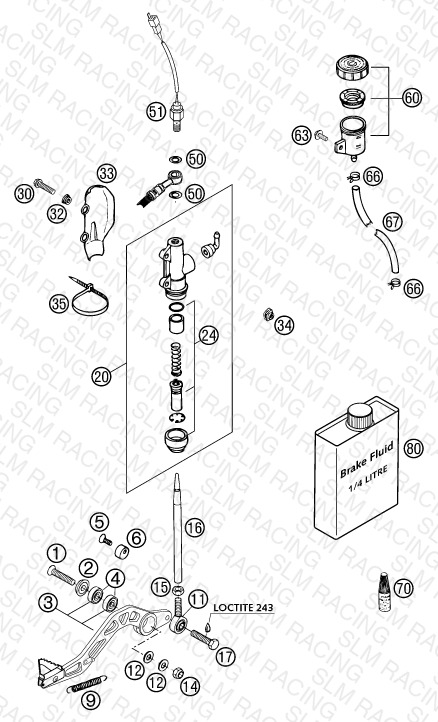

REAR BRAKE CONTROL
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 0991080353 FLAT HEAD SCREW DIN7991-M 8X35 | FLAT HEAD SCREW DIN7991-M 8X35 | 1 | — | Obsolete | View Details |
| 2 | 58303061000 SPECIAL WASHER ALU 8 X 24 MM | SPECIAL WASHER ALU 8 X 24 MM | 6 | $6.15 | Available | 6 |
| 3 | 58403070044 FOOT BRAKE LEVER KPL. LC4 2001 | FOOT BRAKE LEVER KPL. LC4 2001 | 1 | — | Obsolete | View Details |
| 4 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | $25.18 | Available | 2 |
| 5 | 0991060203 FLAT H.SCREW DIN7991-M6X20 | FLAT H.SCREW DIN7991-M6X20 | 6 | $2.99 | Available | 6 |
| 6 | 58303063000 BRAKE LEVER STOP '93 | BRAKE LEVER STOP '93 | 1 | $7.03 | Available | 1 |
| 9 | 13003062000 RETURN SPRING | RETURN SPRING | 1 | $6.81 | Available | 1 |
| 11 | 58303062000 HEIM JOINT M8 W=12MM '93 | HEIM JOINT M8 W=12MM '93 | 1 | — | Obsolete | View Details |
| 12 | 0125080003 washer DIN 125 A -8.4 | washer DIN 125 A -8.4 | 1 | $1.99 | Available | 1 |
| 14 | 0985080003 SELF LOCKING NUT DIN0985-M 8 | SELF LOCKING NUT DIN0985-M 8 | 2 | $2.99 | Available | 2 |
| 15 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | $2.99 | Available | 2 |
| 16 | 58303068100 PUSH ROD ALU L=178MM '93 | PUSH ROD ALU L=178MM '93 | 1 | — | Obsolete | View Details |
| 17 | 0933080223 HH SCREW DIN0933-M 8X22 8.8 | HH SCREW DIN0933-M 8X22 8.8 | 1 | — | Obsolete | View Details |
| 20 | 54513101044 MAIN BRAKE CYLINDER '89 | MAIN BRAKE CYLINDER '89 | 1 | $149.09 | Available | 1 |
| 24 | 54513150000 REPAIR KIT PISTON 13MM | REPAIR KIT PISTON 13MM | 1 | $54.66 | Available | 1 |
| 30 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | $3.99 | Available | 5 |
| 32 | 50213161000 COLLAR BUSHING | COLLAR BUSHING | 2 | $3.99 | Available | 2 |
| 33 | 54513038000 BRAKE CYL. PROTECTOR ''BREMBO' | BRAKE CYL. PROTECTOR ''BREMBO' | 1 | $8.24 | Available | 1 |
| 34 | 50235033300 SNAP-NUT HOLDER M6 KP142 | SNAP-NUT HOLDER M6 KP142 | 2 | $4.99 | Available | 2 |
| 35 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 3 | $2.99 | Available | 3 |
| 50 | 42013226000 CU-SEAL RING DIN7603-10X16X1 | CU-SEAL RING DIN7603-10X16X1 | 1 | $2.99 | Available | 1 |
| 51 | 50311051100 BRAKE LIGHT SWITCH REAR '98 | BRAKE LIGHT SWITCH REAR '98 | 1 | $43.44 | Available | 1 |
| 60 | 54513030044 BRAKE FLUID RESERVOIR '89 | BRAKE FLUID RESERVOIR '89 | 1 | $24.19 | Available | 1 |
| 63 | 0014060103 HH COLLAR SCREW M 6X10 WS=8 | HH COLLAR SCREW M 6X10 WS=8 | 2 | $3.99 | Available | 2 |
| 66 | 58007017000 YDNAC-clamp 10101 (10.4MM) | YDNAC-clamp 10101 (10.4MM) | 2 | $3.99 | Available | 2 |
| 67 | 58007016101 HOSE FOR RESERVOIR 6X1,5 | HOSE FOR RESERVOIR 6X1,5 | — | $19.24 | Available | 1 |
| 70 | 6899785 LOCTITE 243 BLUE 5 ML | LOCTITE 243 BLUE 5 ML | 1 | $32.99 | Available | 1 |
| 80 | 306054 BRAKE FLUID DOT 4.0 | BRAKE FLUID DOT 4.0 | 1 | — | Obsolete | View Details |
