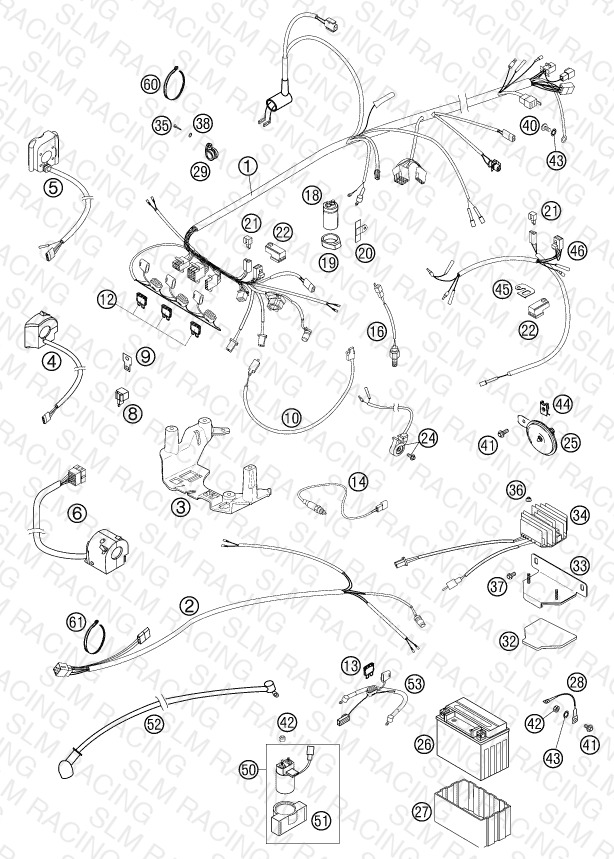

WIRING HARNESS
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58411175300 WIRING HARNESS LC4 02 | WIRING HARNESS LC4 02 | 1 | — | Obsolete | View Details |
| 2 | 58411176200 WIRING HARNESS REAR LC4 2001 | WIRING HARNESS REAR LC4 2001 | 1 | — | Obsolete | View Details |
| 3 | 58411083100 BRACKET FOR PLUGS LC4 '98 | BRACKET FOR PLUGS LC4 '98 | 1 | — | Obsolete | View Details |
| 4 | 58411074100 START-STOP SWITCH AD LC4 02 | START-STOP SWITCH AD LC4 02 EU, GB, USA | 1 | $89.97 | Available | |
| 5 | 59011074100 START-STOP SWITCH 2000 | START-STOP SWITCH 2000 AUSTRALIEN | 1 | $73.58 | Available | 1 |
| 6 | 58411070100 HEAD LIGHT SWITCH AD LC4 02 | HEAD LIGHT SWITCH AD LC4 02 | 1 | — | Obsolete | View Details |
| 8 | 44611207200 FLASHER UNIT 97 | FLASHER UNIT 97 | 1 | $58.62 | Available | 1 |
| 9 | 58211031100 BRACKET FOR FLASHER RELAY | BRACKET FOR FLASHER RELAY | 1 | $6.70 | Available | 1 |
| 10 | 50311050100 BRAKE LIGHT SWITCH FRONT 2002 | BRAKE LIGHT SWITCH FRONT 2002 | 1 | $76.00 | Available | 1 |
| 12 | 58011109110 Plug-in fuse, big 10A | Plug-in fuse, big 10A | 2 | $2.99 | Available | 2 |
| 13 | 58011109120 Plug-in fuse, big 20A | Plug-in fuse, big 20A | 1 | $1.99 | Available | 1 |
| 14 | 58411049000 CLUTCH SWITCH '96 | CLUTCH SWITCH '96 | 1 | — | Obsolete | View Details |
| 16 | 50311051100 BRAKE LIGHT SWITCH REAR '98 | BRAKE LIGHT SWITCH REAR '98 | 1 | $43.44 | Available | 1 |
| 18 | 49111435100 CONDENSATOR 25V, 10.000 MF | CONDENSATOR 25V, 10.000 MF | 1 | $67.75 | Available | 1 |
| 19 | 54511048000 CAPACITOR BRACKET | CAPACITOR BRACKET | 2 | — | Obsolete | View Details |
| 20 | 54611448000 BRACKET FOR CAPACITOR | BRACKET FOR CAPACITOR | 1 | — | Obsolete | View Details |
| 21 | 58411096100 DIODE S3H-15 97 | DIODE S3H-15 97 | 1 | $11.54 | Available | 1 |
| 22 | 58411057000 STARTER RELAY '96 | STARTER RELAY '96 | 1 | — | Obsolete | View Details |
| 24 | 58411045000 SIDE STAND SWITCH CPL. '97 | SIDE STAND SWITCH CPL. '97 | 1 | $115.16 | Out of Stock | Notify Me |
| 25 | 50311060000 DC HORN 12V K80/L LEB | DC HORN 12V K80/L LEB | 1 | $37.83 | Available | 1 |
| 26 | 58411053000 BATTERY 12V 8AH '96 | BATTERY 12V 8AH '96 | 1 | $251.78 | Available | 1 |
| 27 | 58411053050 BATTERY COVER 96 | BATTERY COVER 96 | 1 | — | Obsolete | View Details |
| 28 | 58411097100 GROUND CABLE D=6MM L=140MM '97 | GROUND CABLE D=6MM L=140MM '97 | 1 | $10.55 | Available | 1 |
| 29 | 49007439000 CLAMP RSGU 15/12 | CLAMP RSGU 15/12 | 1 | $6.15 | Available | 1 |
| 32 | 58411055150 METAMOLL FOR BATTERY BRACKET | METAMOLL FOR BATTERY BRACKET | 1 | — | Obsolete | View Details |
| 33 | 58411055100 BATTERY BRACKET LC4-E/DUKE'97 | BATTERY BRACKET LC4-E/DUKE'97 | 1 | — | Obsolete | View Details |
| 34 | 58411034100 VOLT.REGULATOR-RECTIFIER 12V | VOLT.REGULATOR-RECTIFIER 12V | 1 | $252.33 | Available | 1 |
| 35 | 0981480133 SHEET MET.SCR.DIN7981- 4,8X13 | SHEET MET.SCR.DIN7981- 4,8X13 | 1 | — | Obsolete | View Details |
| 36 | 56509064100 Self locking nut M6 - 10 | Self locking nut M6 - 10 | 1 | $2.99 | Available | 1 |
| 37 | 0015060103 HH COLLAR SCREW M 6X10 WS=8 | HH COLLAR SCREW M 6X10 WS=8 | 1 | $3.99 | Available | 1 |
| 38 | 0797050003 TOOTH LOCK WASH. DIN6797-J 5,3 | TOOTH LOCK WASH. DIN6797-J 5,3 | 1 | — | Obsolete | View Details |
| 40 | 0014060103 HH COLLAR SCREW M 6X10 WS=8 | HH COLLAR SCREW M 6X10 WS=8 | 2 | $3.99 | Available | 2 |
| 41 | 0014060153 HH COLLAR SCREW M 6X15 WS=8 | HH COLLAR SCREW M 6X15 WS=8 | 2 | $3.99 | Available | 2 |
| 42 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 43 | 58411098100 CONTACT WASHER M6 VSV-K6 | CONTACT WASHER M6 VSV-K6 | 2 | $2.99 | Available | 2 |
| 44 | 54603048100 clip nut M6 | clip nut M6 | 1 | $4.99 | Available | 1 |
| 45 | 58311031000 RETAINING PLATE | RETAINING PLATE | 1 | — | Obsolete | View Details |
| 46 | 58411046000 * SIDE STAND CABLE 400/640 '99 | * SIDE STAND CABLE 400/640 '99 | 1 | — | Obsolete | View Details |
| 50 | 58411058000 STARTER RELAY WITH HOLD.RUBBER | STARTER RELAY WITH HOLD.RUBBER | 1 | — | Obsolete | View Details |
| 51 | 58411058050 HOLD. RUBBER FOR STARTRELAY | HOLD. RUBBER FOR STARTRELAY | 1 | — | Obsolete | View Details |
| 52 | 58411059100 STARTERCABLE 700 MM '97 | STARTERCABLE 700 MM '97 | 1 | $27.82 | Available | 1 |
| 53 | 58411059250 BATTERY CABLE 190MM 20A '98 | BATTERY CABLE 190MM 20A '98 | 1 | — | Obsolete | View Details |
| 60 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 3 | $2.99 | Available | 3 |
| 61 | 44011076100 CABLE TIE 100/2,5MM BLACK | CABLE TIE 100/2,5MM BLACK | — | $1.99 | Available | 1 |
