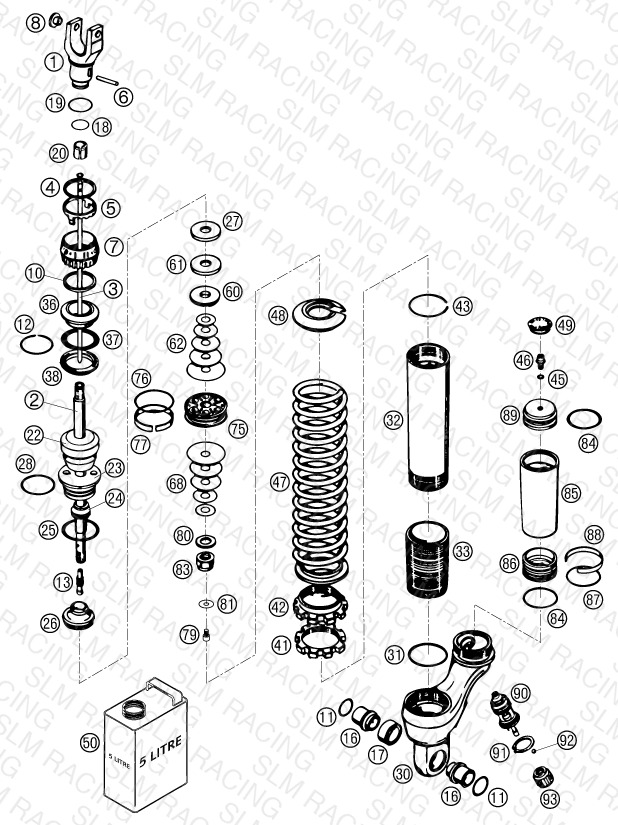

SHOCK ABSORBER DISASSEMBLED
Parts (77)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 46811558 SHOCK ABS. BOTTOM-FORK L75B | SHOCK ABS. BOTTOM-FORK L75B | 1 | — | Obsolete | View Details |
| 2 | 46811560 % PISTON ROD D=14 BA, M14X1 | % PISTON ROD D=14 BA, M14X1 | 1 | — | Obsolete | View Details |
| 3 | 46811545S NEEDLE CPL. D=4 BA, L=183 | NEEDLE CPL. D=4 BA, L=183 | 1 | — | Obsolete | View Details |
| 4 | 46811222 O-RING 36X0,5 | O-RING 36X0,5 | 1 | — | Obsolete | View Details |
| 5 | 46811263 WASHER | WASHER | 1 | — | Obsolete | View Details |
| 6 | 46811261 PIN 4X35 | PIN 4X35 | 1 | — | Obsolete | View Details |
| 7 | 46811262 ADJ. KNOB D=41 | ADJ. KNOB D=41 | 1 | — | Obsolete | View Details |
| 8 | 46811205 Bush M10x12/15/13x9,5 | Bush M10x12/15/13x9,5 | 1 | $7.91 | Available | 1 |
| 10 | 46811221 Shaft seal 29x35x3 | Shaft seal 29x35x3 | 1 | — | Obsolete | View Details |
| 11 | 46811050 SEAL KGW | SEAL KGW | 4 | $9.56 | Available | 4 |
| 12 | 46811268 CIRCLIP 22X1,2 | CIRCLIP 22X1,2 | 1 | — | Obsolete | View Details |
| 13 | 46811259 NEEDLE SEAT 5X17,25 | NEEDLE SEAT 5X17,25 | 1 | — | Obsolete | View Details |
| 16 | 46811078 Bearing bush 10x15,05/22/19x24 | Bearing bush 10x15,05/22/19x24 | 2 | — | Obsolete | View Details |
| 17 | 46811027 Ball joint bearing 15x25x13 | Ball joint bearing 15x25x13 | 2 | $34.53 | Available | 2 |
| 18 | 46811499 O-ring 21x2 NBR70 | O-ring 21x2 NBR70 | 4 | $1.20 | Available | 4 |
| 19 | 46811500 O-RING NBR 32X1,5 | O-RING NBR 32X1,5 | 1 | — | Obsolete | View Details |
| 20 | 46811559 * BUSH D=18X14 | * BUSH D=18X14 | 1 | — | Obsolete | View Details |
| 22 | 46810365 Rubber pad 13,9x39x43 white | Rubber pad 13,9x39x43 white | 1 | — | Obsolete | View Details |
| 23 | 46811045 SCREW CAP M47,4, H=22,5 | SCREW CAP M47,4, H=22,5 | 1 | — | Obsolete | View Details |
| 24 | 46811044 DUST SEAL 1424 | DUST SEAL 1424 | 1 | — | Obsolete | View Details |
| 25 | 46810325 O-ring 35x5 NBR70 | O-ring 35x5 NBR70 | 1 | — | Obsolete | View Details |
| 26 | 46811540S1 ADAPTER CPL. D=46, H=23 BA | ADAPTER CPL. D=46, H=23 BA | 1 | — | Obsolete | View Details |
| 27 | 46811002 SPACER 35X14X2 | SPACER 35X14X2 640 LC4 SUPERMOTO | 1 | — | Obsolete | View Details |
| 27 | 46811004 SPACER 14X35X5 | SPACER 14X35X5 640 LC4 | 1 | — | Obsolete | View Details |
| 28 | 46811042 O-ring 40x2 NBR70 black | O-ring 40x2 NBR70 black | 2 | $2.41 | Available | 2 |
| 30 | 46811481 SHOCK ABSORB. TOP H-35/79 84 | SHOCK ABSORB. TOP H-35/79 84 | 1 | — | Obsolete | View Details |
| 31 | 46810016 O-ring 48x2 NBR70 siliconized | O-ring 48x2 NBR70 siliconized | 2 | $1.20 | Available | 2 |
| 32 | 46810092 TUBE L=175 | TUBE L=175 640 LC4 | 1 | — | Obsolete | View Details |
| 32 | 46810093 TUBE L=180 | TUBE L=180 640 LC4 SUPERMOTO | 1 | — | Obsolete | View Details |
| 33 | 46810346 THREADED BUSH L=60 BLACK | THREADED BUSH L=60 BLACK | 1 | — | Obsolete | View Details |
| 36 | 46811561 BUSHING RING D=55X19 | BUSHING RING D=55X19 | 1 | — | Obsolete | View Details |
| 37 | 46811512 O-RING NBR 32X8 | O-RING NBR 32X8 | 1 | — | Obsolete | View Details |
| 38 | 46811511 SUPPORT RING D=55X7,5 | SUPPORT RING D=55X7,5 | 1 | — | Obsolete | View Details |
| 41 | 46810109 COUNTERNUT | COUNTERNUT | 1 | — | Obsolete | View Details |
| 42 | 46810108 ADJUSTING NUT | ADJUSTING NUT | 1 | — | Obsolete | View Details |
| 43 | 46810010 Round-wire snap ring 49x1,5 | Round-wire snap ring 49x1,5 | 1 | $3.62 | Available | 1 |
| 45 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | $0.76 | Available | 1 |
| 46 | 36120151 HS lock screw M5x6 | HS lock screw M5x6 | 1 | $2.19 | Available | 1 |
| 47 | 91010111 SPRING 75-260 (59) | SPRING 75-260 (59) 640 LC4 SUPERMOTO | 1 | — | Obsolete | View Details |
| 47 | 91010253 SPRING 66-260 59 | SPRING 66-260 59 640 LC4 | 1 | — | Obsolete | View Details |
| 48 | 46810063 SPRING RETAINER D=58,H=13,L=15 | SPRING RETAINER D=58,H=13,L=15 | 1 | — | Obsolete | View Details |
| 49 | 46811208 Rubber cap do not open 22x5,5 | Rubber cap do not open 22x5,5 | 1 | $3.62 | Available | 1 |
| 50 | 46810208S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT 0,33 L | 1 | — | Obsolete | View Details |
| 60 | 46811216 REBOUND BUSH PLANE H=6,5 | REBOUND BUSH PLANE H=6,5 | 1 | — | Obsolete | View Details |
| 61 | 46811005 Bush 14x35x10 | Bush 14x35x10 | 1 | — | Obsolete | View Details |
| 62 | 46810491 Shim 12x26x0,20 | Shim 12x26x0,20 | 1 | $2.41 | Available | 1 |
| 62 | 46810492 Shim 12x28x0,20 | Shim 12x28x0,20 | 1 | $2.41 | Available | 1 |
| 62 | 46810493 SHIM 12X30X0,20 | SHIM 12X30X0,20 | 1 | $2.41 | Available | 1 |
| 62 | 46810498 Shim 12x40x0,20 | Shim 12x40x0,20 | 4 | $2.41 | Available | 4 |
| 62 | 46810507 Shim 12x40x0,25 | Shim 12x40x0,25 | 1 | $2.41 | Available | 1 |
| 62 | 46810521 SHIM 12X32X0,15 | SHIM 12X32X0,15 | 1 | $2.41 | Available | 1 |
| 62 | 46810522 SHIM 12X34X0,15 | SHIM 12X34X0,15 | 1 | $2.41 | Available | 1 |
| 62 | 46810523 SHIM 12X36X0,15 | SHIM 12X36X0,15 | 1 | $2.41 | Available | 1 |
| 62 | 46810524 SHIM 12X38X0,15 | SHIM 12X38X0,15 | 1 | $2.41 | Available | 1 |
| 62 | 46810606 SHIM 12X22X0,10 | SHIM 12X22X0,10 | 1 | $2.41 | Available | 1 |
| 62 | 46810610 Shim 12x17x0,15 | Shim 12x17x0,15 | 1 | $2.41 | Available | 1 |
| 68 | 46810494 Shim 12x32x0,20 | Shim 12x32x0,20 | 1 | $2.41 | Available | 1 |
| 68 | 46810520 SHIM 12X30X0,15 | SHIM 12X30X0,15 | 1 | $2.41 | Available | 1 |
| 68 | 46810607 SHIM 12X23X0,10 | SHIM 12X23X0,10 | 1 | $2.41 | Available | 1 |
| 68 | 46810641 Shim 12X21X0,30 | Shim 12X21X0,30 | 1 | $2.41 | Available | 1 |
| 75 | 46811218 PISTON 6+6XD=7 BA | PISTON 6+6XD=7 BA | 1 | — | Obsolete | View Details |
| 76 | 46810035 O-ring 37x,82x1,78 Viton70 gre | O-ring 37x,82x1,78 Viton70 gre | 1 | $2.41 | Available | 1 |
| 77 | 46811206 Piston ring 43,95x45,95x8 | Piston ring 43,95x45,95x8 | 1 | $20.89 | Available | 1 |
| 79 | 46180056 HH screw ventilation M6 l5,5 | HH screw ventilation M6 l5,5 | 1 | — | Obsolete | View Details |
| 80 | 46811258 Washer 12x24x2,5 | Washer 12x24x2,5 | 1 | $29.14 | Backorder — Restocking | 1 |
| 81 | 40540403 Shim 6x18x0,10 | Shim 6x18x0,10 | 4 | $2.41 | Available | 4 |
| 83 | 46180060 Piston rod nut M12x1 | Piston rod nut M12x1 | 1 | — | Obsolete | View Details |
| 84 | 46810340 O-ring 45x2 NBR70 siliconized | O-ring 45x2 NBR70 siliconized | 2 | $1.20 | Available | 2 |
| 85 | 46811453 RESERVOIR SCREW L=123 GREY | RESERVOIR SCREW L=123 GREY | 1 | — | Obsolete | View Details |
| 86 | 46810322 SEPARATION PISTON D=46 | SEPARATION PISTON D=46 | 1 | — | Obsolete | View Details |
| 87 | 46811043 O-ring 35x5 Viton70 | O-ring 35x5 Viton70 | 1 | — | Obsolete | View Details |
| 88 | 46810324 Pistonring 42,5x45,5x3,9 | Pistonring 42,5x45,5x3,9 | 1 | $39.19 | Out of Stock | Notify Me |
| 89 | 46811209 RESERVOIR CAP D=46 | RESERVOIR CAP D=46 | 1 | — | Obsolete | View Details |
| 90 | 46811539S CC-COMPRE.DAMPING CONTROL CPL. | CC-COMPRE.DAMPING CONTROL CPL. | 1 | — | Obsolete | View Details |
| 91 | 46810334 LOCK WASHER JV24 | LOCK WASHER JV24 | 1 | — | Obsolete | View Details |
| 92 | 46810333 Steel ball 4.75mm | Steel ball 4.75mm | 1 | — | Obsolete | View Details |
| 93 | 46811272S ADJUSTING KNOB CC-MECH. CPL. | ADJUSTING KNOB CC-MECH. CPL. | 1 | — | Obsolete | View Details |
