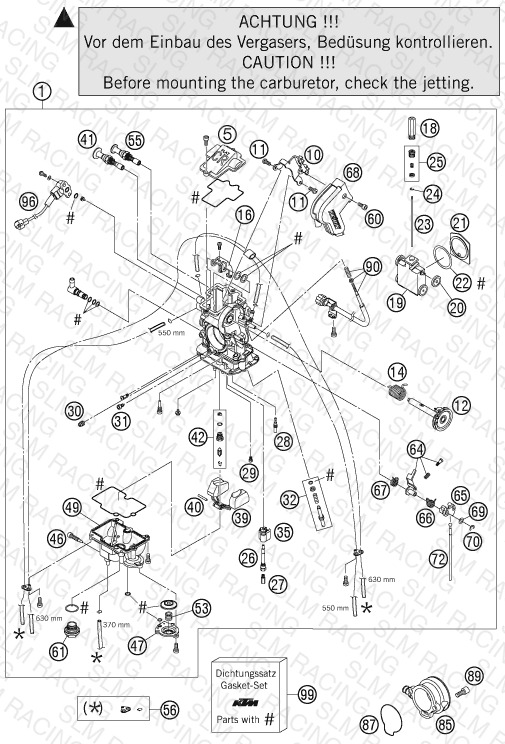

CARBURETOR
Parts (68)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58331001100 CARBURETOR KEIHIN FCR-41 MX 03 | CARBURETOR KEIHIN FCR-41 MX 03 | 1 | — | Obsolete | View Details |
| 5 | 57331027000 CARBURETOR COVER 2002 | CARBURETOR COVER 2002 | 1 | $46.19 | Available | 1 |
| 10 | 57331080000 BRACKET PLATE FOR THR. CABLE | BRACKET PLATE FOR THR. CABLE | 1 | $76.33 | Out of Stock | Notify Me |
| 11 | 57331055000 SCREW M 5 X 8 | SCREW M 5 X 8 | 2 | — | Obsolete | View Details |
| 12 | 57331046000 THROTTLE SHAFT CPL. | THROTTLE SHAFT CPL. | 1 | $151.24 | Available | 1 |
| 14 | 57331046050 COIL SPRING THROTTLE SHAFT | COIL SPRING THROTTLE SHAFT | 1 | $10.77 | Available | 1 |
| 16 | 57331035051 LINK ARM THROTTLE VALVE CPL. | LINK ARM THROTTLE VALVE CPL. | 1 | $99.87 | Out of Stock | Notify Me |
| 18 | 58331029014 SLIDE STOP L=34,5MM 03 | SLIDE STOP L=34,5MM 03 | 1 | $23.97 | Out of Stock | Notify Me |
| 19 | 57331035000 THROTTLE VALVE CPL. | THROTTLE VALVE CPL. | 1 | $405.89 | Out of Stock | Notify Me |
| 20 | 59031035050 BUSHING THROTTLE VALVE | BUSHING THROTTLE VALVE | 4 | $12.53 | Available | 4 |
| 21 | 57331035153 GASKET PLATE THROTTLE VALVE 04 | GASKET PLATE THROTTLE VALVE 04 | 1 | $225.71 | Available | 1 |
| 22 | 59031035052 GASKET WASHER THROTTLE VALVE | GASKET WASHER THROTTLE VALVE | 1 | $21.11 | Available | 1 |
| 23 | 57331034100 JET NEEDLE KEIHIN OBEKP | JET NEEDLE KEIHIN OBEKP | — | $31.23 | Available | 1 |
| 23 | 57331034200 JET NEEDLE KEIHIN OBEKQ | JET NEEDLE KEIHIN OBEKQ | — | $40.69 | Available | 1 |
| 23 | 57331034300 JET NEEDLE KEIHIN OBEKR | JET NEEDLE KEIHIN OBEKR | — | $37.06 | Available | 1 |
| 23 | 57331034400 JET NEEDLE KEIHIN OBEKS | JET NEEDLE KEIHIN OBEKS | — | $40.69 | Available | 1 |
| 23 | 57331034500 JET NEEDLE KEIHIN OBEKT | JET NEEDLE KEIHIN OBEKT | — | — | Obsolete | View Details |
| 23 | 59031023200 JET NEEDLE KEIHIN OBDVT | JET NEEDLE KEIHIN OBDVT | 1 | $34.20 | Available | 1 |
| 24 | 59031029000 BAR CLIP | BAR CLIP | 1 | $6.15 | Available | 1 |
| 25 | 57331032000 NEEDLE SET SCREW CPL. | NEEDLE SET SCREW CPL. | 1 | $47.18 | Available | 1 |
| 26 | 59031121000 NEEDLE JET FCR-MX | NEEDLE JET FCR-MX | 1 | $38.49 | Available | 1 |
| 27 | 54531623160 MAIN JET 160 KEIHIN | MAIN JET 160 KEIHIN | — | $15.39 | Available | 1 |
| 27 | 54531623162 MAIN JET 162 KEIHIN | MAIN JET 162 KEIHIN | — | $14.95 | Available | 1 |
| 27 | 54531623165 MAIN JET 165 KEIHIN | MAIN JET 165 KEIHIN | 1 | $15.17 | Available | 1 |
| 27 | 54531623168 MAIN JET 168 KEIHIN | MAIN JET 168 KEIHIN | — | $15.39 | Available | 1 |
| 27 | 54531623170 MAIN JET 170 KEIHIN | MAIN JET 170 KEIHIN | — | $15.06 | Available | 1 |
| 27 | 54531623172 MAIN JET 172 KEIHIN | MAIN JET 172 KEIHIN | — | $15.06 | Available | 1 |
| 27 | 54531623175 MAIN JET 175 KEIHIN | MAIN JET 175 KEIHIN | — | $15.06 | Available | 1 |
| 27 | 54531623178 MAIN JET 178 KEIHIN | MAIN JET 178 KEIHIN | — | $16.05 | Available | 1 |
| 27 | 54531623180 MAIN JET 180 KEIHIN | MAIN JET 180 KEIHIN | — | $14.95 | Available | 1 |
| 27 | 54531623182 MAIN JET 182 KEIHIN | MAIN JET 182 KEIHIN | — | $15.17 | Available | 1 |
| 27 | 54531623185 MAIN JET 185 KEIHIN | MAIN JET 185 KEIHIN | — | $15.06 | Available | 1 |
| 27 | 54531623188 MAIN JET 188 KEIHIN | MAIN JET 188 KEIHIN | — | $14.84 | Available | 1 |
| 27 | 54531623190 MAIN JET 190 KEIHIN | MAIN JET 190 KEIHIN | — | $14.84 | Available | 1 |
| 28 | 54531607040 IDLE JET 40 KEIHIN | IDLE JET 40 KEIHIN | — | $14.84 | Available | 1 |
| 28 | 54531607042 IDLE JET 42 KEIHIN | IDLE JET 42 KEIHIN | — | $14.95 | Available | 1 |
| 28 | 54531607045 IDLE JET 45 KEIHIN | IDLE JET 45 KEIHIN | — | $14.73 | Available | 1 |
| 29 | 59031051085 STARTER JET 85 | STARTER JET 85 | 1 | $19.68 | Available | 1 |
| 30 | 57331007100 IDLE AIR JET 100 KEIHIN | IDLE AIR JET 100 KEIHIN | 1 | $18.25 | Out of Stock | Notify Me |
| 31 | 57331037200 MAIN AIR JET 200 KEIHIN | MAIN AIR JET 200 KEIHIN | 1 | — | Obsolete | View Details |
| 32 | 59031017100 ADJUST SCREW CPL. FCR-MX | ADJUST SCREW CPL. FCR-MX | 1 | $23.09 | Available | 1 |
| 35 | 57331085000 BUFFER PLATE | BUFFER PLATE | 1 | $14.51 | Available | 1 |
| 39 | 57331009000 FLOAT CPL. | FLOAT CPL. | 1 | $70.17 | Available | 1 |
| 40 | 57331008000 ARM PIN FLOAT | ARM PIN FLOAT | 1 | $2.99 | Available | 1 |
| 41 | 57331075000 HOT-STARTER VALVE CPL. | HOT-STARTER VALVE CPL. | 1 | $115.16 | Available | 1 |
| 42 | 57331020000 NEEDLE VALVE CPL. | NEEDLE VALVE CPL. | 1 | $95.47 | Available | 1 |
| 46 | 57331155000 DRAIN SCREW FLOAT CHAMBER | DRAIN SCREW FLOAT CHAMBER | 1 | $7.03 | Available | 1 |
| 47 | 57331060000 COVER ACCELERATOR PUMP | COVER ACCELERATOR PUMP | 1 | $31.78 | Available | 1 |
| 49 | 57331011000 FLOAT CHAMBER CPL. SET | FLOAT CHAMBER CPL. SET | 1 | $209.98 | Available | 1 |
| 53 | 59031059000 COIL SPRING | COIL SPRING | 1 | $8.68 | Available | 1 |
| 55 | 57331048000 STARTER VALVE CPL. | STARTER VALVE CPL. | 1 | $102.18 | Available | 1 |
| 56 | 57331098000 BREATH.HOSE FCR-MX KEIHIN CPL. | BREATH.HOSE FCR-MX KEIHIN CPL. | 1 | $126.49 | Backorder — Restocking | 1 |
| 60 | 57331038100 SCREW F. COVER KEIHIN | SCREW F. COVER KEIHIN | 1 | — | Obsolete | View Details |
| 61 | 57331014000 HOLDING BOLT | HOLDING BOLT | 1 | $24.41 | Available | 1 |
| 64 | 57331062000 INTERMEDIATE LEVER CPL. | INTERMEDIATE LEVER CPL. | 1 | $39.15 | Available | 1 |
| 65 | 57331056000 LINK LEVER | LINK LEVER | 1 | $9.56 | Out of Stock | Notify Me |
| 66 | 57331059000 SPRING LINK LEVER | SPRING LINK LEVER | 1 | — | Obsolete | View Details |
| 67 | 57331159000 SPRING INTERMEDIATE LEVER | SPRING INTERMEDIATE LEVER | 1 | $12.75 | Available | 1 |
| 68 | 57331038000 CARBURETOR COVER | CARBURETOR COVER | 1 | $28.92 | Available | 1 |
| 69 | 57331087000 WASHER LINK LEVER | WASHER LINK LEVER | 1 | $2.99 | Available | 1 |
| 70 | 57331084000 E-CLIP | E-CLIP | 1 | $2.99 | Available | 1 |
| 72 | 57331061000 ROD ACCELERATOR PUMP | ROD ACCELERATOR PUMP | 1 | $31.45 | Out of Stock | Notify Me |
| 85 | 59031040200 INTAKE FUNNEL FCR/FCR-MX 02 | INTAKE FUNNEL FCR/FCR-MX 02 SIDEWARDS CLOSED | 1 | — | Obsolete | View Details |
| 87 | 59031040010 O-RING FOR INTAKE FUNNEL | O-RING FOR INTAKE FUNNEL | 1 | $3.99 | Backorder — Restocking | 1 |
| 89 | 0912050123 AH SCREW DIN0912-M 5X12 | AH SCREW DIN0912-M 5X12 | 1 | $2.99 | Available | 1 |
| 90 | 57331025000 STOP SCREW CPL. FCR-MX | STOP SCREW CPL. FCR-MX | 1 | $66.65 | Available | 1 |
| 96 | 58331077000 TPS-SENSOR FCRMX 220MM 03-05 | TPS-SENSOR FCRMX 220MM 03-05 | 1 | — | Obsolete | View Details |
| 99 | 57331099000 GASKET SET FCR-MX KEIHIN | GASKET SET FCR-MX KEIHIN | 1 | $140.79 | Available | 1 |
