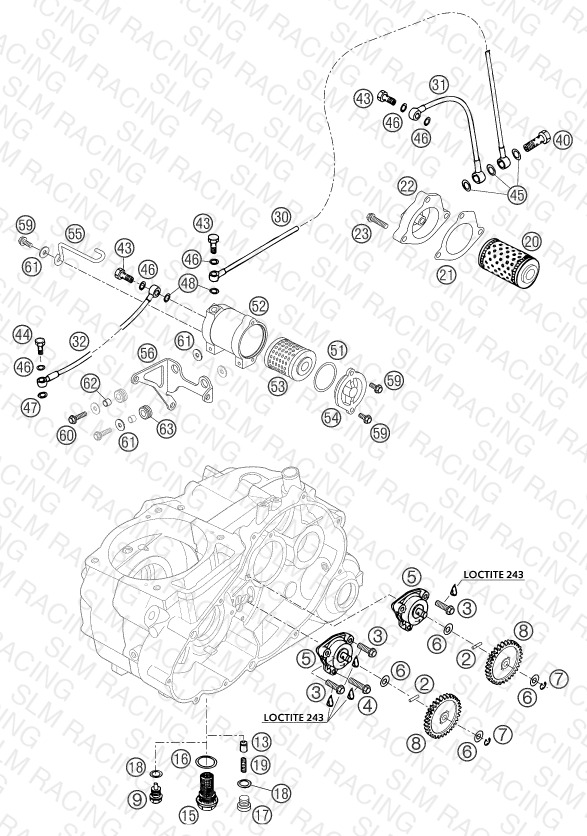

LUBRICATING SYSTEM
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 | NEEDLEROL.DIN5402 NRA 2,5X19,8 | 2 | — | Check availability | |
| 3 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 5 | — | Check availability | View Details |
| 4 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 1 | — | Check availability | View Details |
| 5 | 58038007700 OIL PUMP MIKUNI G-73-10 | OIL PUMP MIKUNI G-73-10 | 2 | — | Check availability | |
| 6 | 58038007755 STOP DISK 8,1 X 15 X 0,5 | STOP DISK 8,1 X 15 X 0,5 | 4 | — | Check availability | |
| 7 | 0799060000 TAB WASHER DIN6799-RS 6,0 | TAB WASHER DIN6799-RS 6,0 | 2 | — | Check availability | |
| 8 | 58438001000 OIL PUMP GEAR 26-T | OIL PUMP GEAR 26-T | 2 | — | Check availability | |
| 9 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | — | Check availability | View Details |
| 13 | 58038028000 VALVE PISTON D=10MM | VALVE PISTON D=10MM | 1 | — | Check availability | |
| 15 | 58038019100 OIL DRAIN PLUG M22X1,5 | OIL DRAIN PLUG M22X1,5 | 1 | — | Check availability | View Details |
| 16 | 58038017100 CU-SEAL RING DIN7603-22X27X2 | CU-SEAL RING DIN7603-22X27X2 | 1 | — | Check availability | |
| 17 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | — | Check availability | |
| 18 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 2 | — | Check availability | |
| 19 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | — | Check availability | |
| 20 | 58038005000 OIL FILTER LONG | OIL FILTER LONG | 1 | — | Check availability | |
| 21 | 58530041000 OIL FILTER COVER GASKET 2001 | OIL FILTER COVER GASKET 2001 | 1 | — | Check availability | |
| 22 | 58030008700 OIL FILTER COVER 2001 | OIL FILTER COVER 2001 | 1 | — | Check availability | View Details |
| 23 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 3 | — | Check availability | View Details |
| 30 | 58338334000 OIL LINE O.FILTER/M.FIL. 315MM | OIL LINE O.FILTER/M.FIL. 315MM R10/R8 - 315MM | 1 | — | Check availability | View Details |
| 31 | 58338034000 OIL LINE CLUTCH COVER-FRAME | OIL LINE CLUTCH COVER-FRAME R10/R8 - 206MM | 1 | — | Check availability | View Details |
| 32 | 58538046000 OIL LINE JUNC.B-CRANK.300MM 01 | OIL LINE JUNC.B-CRANK.300MM 01 R8/R8 - 300MM | 1 | — | Check availability | View Details |
| 40 | 58038033100 DUAL BANJO BOLT M10 X 1 | DUAL BANJO BOLT M10 X 1 | 1 | — | Check availability | View Details |
| 43 | 58038030000 BANJO BOLT M8 X 1 DIN7643 | BANJO BOLT M8 X 1 DIN7643 | 3 | — | Check availability | View Details |
| 44 | 58038130000 JET SCREW M 8 X 1 ''150'' | JET SCREW M 8 X 1 ''150'' | 1 | — | Check availability | |
| 45 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 3 | — | Check availability | |
| 46 | 0603082121 SEAL RING CU DIN7603- 8X12X1 | SEAL RING CU DIN7603- 8X12X1 | 5 | — | Check availability | |
| 47 | 58038032300 CU-SEAL RING 8 X 12 X 1,5 | CU-SEAL RING 8 X 12 X 1,5 | 1 | — | Check availability | View Details |
| 48 | 0603821220 COPPER GASKET 8,2X12X2 MM 2001 | COPPER GASKET 8,2X12X2 MM 2001 | 2 | — | Check availability | View Details |
| 51 | 0770400025 O-RING 40,00X2,50 NBR 70 | O-RING 40,00X2,50 NBR 70 | 1 | — | Check availability | |
| 52 | 58338043000 MICRO FILTER HOUSING 02 | MICRO FILTER HOUSING 02 | 1 | — | Check availability | |
| 53 | 59038046000 OIL FILTER SHORT | OIL FILTER SHORT | 1 | — | Check availability | |
| 54 | 59038041000 OIL FILTER COVER RACING | OIL FILTER COVER RACING | 1 | — | Check availability | |
| 55 | 58613073000 HANGER FOR BRAKE HOSE REAR 03 | HANGER FOR BRAKE HOSE REAR 03 | 1 | — | Check availability | View Details |
| 56 | 58338040100 BRACKET FOR MICRO FILTER 03 | BRACKET FOR MICRO FILTER 03 | 1 | — | Check availability | |
| 59 | 0015050123 HH COLLAR SCREW M 5X12 WS=8 | HH COLLAR SCREW M 5X12 WS=8 | 3 | — | Check availability | View Details |
| 60 | 0015050203 HH COLLAR SCREW M 5X20 WS=8 | HH COLLAR SCREW M 5X20 WS=8 | 2 | — | Check availability | View Details |
| 61 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 5 | — | Check availability | |
| 62 | 58011039000 SPACER BUSHING 6,5 X 8 X 7 | SPACER BUSHING 6,5 X 8 X 7 | 2 | — | Check availability | |
| 63 | 31008060000 rubber grommet D=8mm open | rubber grommet D=8mm open | 2 | — | Check availability |
