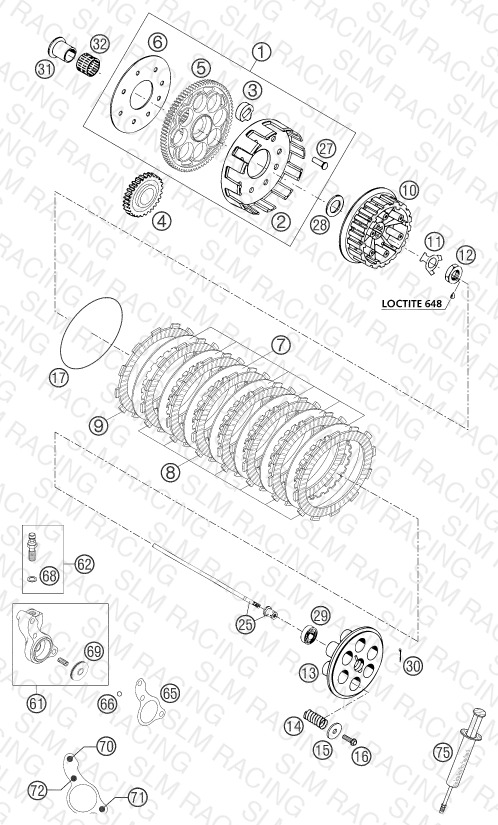

CLUTCH
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58432001044 OUT.CLUTCH HUB CPL.79-T LC4 03 | OUT.CLUTCH HUB CPL.79-T LC4 03 | 1 | — | Obsolete | View Details |
| 2 | 58332001000 OUTER CL.HUB LOOSE D=160MM ' | OUTER CL.HUB LOOSE D=160MM ' | 1 | — | Obsolete | View Details |
| 3 | 58332026000 DAMPING ELEMENT '94 | DAMPING ELEMENT '94 | 8 | $13.85 | Out of Stock | Notify Me |
| 4 | 58532000131 PRIMARY GEAR WHEEL 31-T 2001 | PRIMARY GEAR WHEEL 31-T 2001 | 1 | — | Obsolete | View Details |
| 5 | 58532000079 CLUTCH WHEEL 79-T 2001 | CLUTCH WHEEL 79-T 2001 | 1 | — | Obsolete | View Details |
| 6 | 58332028000 BRACKET 57 x 132 x 1,5 '94 | BRACKET 57 x 132 x 1,5 '94 | 1 | — | Obsolete | View Details |
| 7 | 58332112000 STEEL DISK 1,5 MM LC4'94 | STEEL DISK 1,5 MM LC4'94 | 7 | $16.27 | Available | 7 |
| 8 | 58332011300 LINING DISK 2,7MM FCC 02 | LINING DISK 2,7MM FCC 02 | 7 | $34.09 | Available | 7 |
| 9 | 58332111300 LINING DISK TURN OUT FCC 02 | LINING DISK TURN OUT FCC 02 | 1 | $35.85 | Available | 1 |
| 10 | 58332002200 INNER CL HUB LC4/LC4-E '98 | INNER CL HUB LC4/LC4-E '98 | 1 | — | Obsolete | View Details |
| 11 | 58332018000 LOCK WASHER '94 | LOCK WASHER '94 | 1 | — | Obsolete | View Details |
| 12 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | $9.12 | Available | 1 |
| 13 | 58332003200 PRESSURE CAP LC4/LC4-E '98 | PRESSURE CAP LC4/LC4-E '98 | 1 | — | Obsolete | View Details |
| 14 | 58332080000 CLUTCH SPRING 2,8 X 37 | CLUTCH SPRING 2,8 X 37 | 6 | $9.34 | Available | 6 |
| 15 | 58432081000 WASHER 6,5 X 20 X 2 | WASHER 6,5 X 20 X 2 | 6 | $3.99 | Available | 6 |
| 16 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 17 | 0770116030 O-RING 116,00X3,00 HNBR 70 | O-RING 116,00X3,00 HNBR 70 | 1 | $10.33 | Available | 1 |
| 25 | 57332017044 PUSH ROD L=215MM CPL. 03 | PUSH ROD L=215MM CPL. 03 WITH PRESSURE BOLT | 1 | — | Obsolete | View Details |
| 27 | 58332007000 RIVET 6 X 23 X 11,2 | RIVET 6 X 23 X 11,2 | 8 | $4.99 | Available | 8 |
| 28 | 57532013000 SUPPORTWASHER 22,2X35X3 HARDE. | SUPPORTWASHER 22,2X35X3 HARDE. | 1 | — | Obsolete | View Details |
| 29 | 0625060016 deep groove ball bearing 6001. | deep groove ball bearing 6001. | 4 | $22.21 | Available | 4 |
| 30 | 0094020163 PIN DIN0094-2,0X16 | PIN DIN0094-2,0X16 | 1 | — | Obsolete | View Details |
| 31 | 50332070000 INNER RING WITH COLLAR | INNER RING WITH COLLAR | 1 | $57.96 | Available | 1 |
| 32 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 61 | 50332061044 CYLINDER CPL. 125/200'98 | CYLINDER CPL. 125/200'98 | 1 | $196.01 | Available | 1 |
| 62 | 50332062000 Hollow screw cmpl. M 10x1 98 | Hollow screw cmpl. M 10x1 98 | 1 | $41.13 | Available | 1 |
| 65 | 50332065053 CLUTCH RELEASE GASKET 0,75MM | CLUTCH RELEASE GASKET 0,75MM | — | $3.99 | Available | 1 |
| 66 | 0401070003 BALL DIN5401-7 | BALL DIN5401-7 | 1 | $1.99 | Available | 1 |
| 68 | 42013226000 CU-SEAL RING DIN7603-10X16X1 | CU-SEAL RING DIN7603-10X16X1 | 1 | $2.99 | Available | 1 |
| 69 | 50332066000 PISTON W. O-RING 125/200 2000 | PISTON W. O-RING 125/200 2000 | 1 | $105.81 | Available | 1 |
| 70 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | $2.99 | Available | 4 |
| 71 | 0984060163 AH SCREW DIN6912-M 6X16 | AH SCREW DIN6912-M 6X16 WITH LOW HEAD | 1 | $2.99 | Available | 1 |
| 72 | 0912060253 AH SCREW DIN0912-M 6X25 | AH SCREW DIN0912-M 6X25 | 6 | $2.99 | Available | 6 |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
