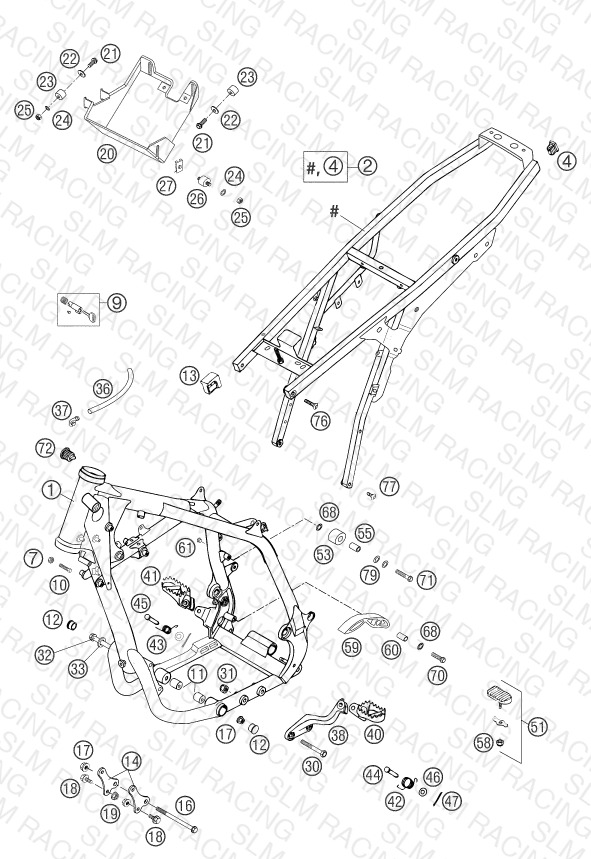

FRAME
Parts (51)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 5830310154490 FRAME CPL. 625SXC/660SM 03 | FRAME CPL. 625SXC/660SM 03 | 1 | — | Obsolete | View Details |
| 2 | 5840300234490 SUBFRAME CPL. STEEL SILVER 00 | SUBFRAME CPL. STEEL SILVER 00 | 1 | — | Obsolete | View Details |
| 4 | 58303002090 PLUG 12 X 17 MM | PLUG 12 X 17 MM | 2 | — | Obsolete | View Details |
| 7 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | $2.99 | Available | 2 |
| 9 | 71003007000 STEERING HEAD LOCK CPL. ZADI | STEERING HEAD LOCK CPL. ZADI | 1 | $37.72 | Available | 1 |
| 10 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | $3.99 | Available | 2 |
| 11 | 58003012000 SPACER ROLLER 10,3X20X22 | SPACER ROLLER 10,3X20X22 | 2 | — | Obsolete | View Details |
| 12 | 71001012100 PVC CAP D=22MM | PVC CAP D=22MM | 2 | $3.99 | Available | 2 |
| 13 | 58307015000 TANK SUPPORT '93 | TANK SUPPORT '93 | 2 | — | Obsolete | View Details |
| 14 | 58303055000 ENGINE SUPPORT AGW '94 | ENGINE SUPPORT AGW '94 | 2 | — | Obsolete | View Details |
| 16 | 58403013000 ENGINE BRAC.SCREW M10X110 WS13 | ENGINE BRAC.SCREW M10X110 WS13 | 1 | — | Obsolete | View Details |
| 17 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | $1.99 | Available | 1 |
| 18 | 49109481052 HH COLLAR SCREW M 8X16 WS=13 | HH COLLAR SCREW M 8X16 WS=13 | 4 | $3.99 | Available | 4 |
| 19 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 3 | $3.99 | Available | 3 |
| 20 | 58403002370 BATTERY BOX 03 | BATTERY BOX 03 | 1 | — | Obsolete | View Details |
| 21 | 0015060103 HH COLLAR SCREW M 6X10 WS=8 | HH COLLAR SCREW M 6X10 WS=8 | 1 | $3.99 | Available | 1 |
| 22 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 2 | $2.99 | Available | 2 |
| 23 | 43205062100 silentbloc 20x15-M6x10-(1) | silentbloc 20x15-M6x10-(1) | 2 | $16.38 | Available | 2 |
| 24 | 0797060003 TOOTH LOCK WASH. DIN6797-A 6,4 | TOOTH LOCK WASH. DIN6797-A 6,4 | 1 | $1.99 | Available | 1 |
| 25 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | $1.99 | Available | 1 |
| 26 | 58403002010 RUBBER GROMMET 20X15-M6X8-(2) | RUBBER GROMMET 20X15-M6X8-(2) | 4 | $13.52 | Available | 4 |
| 27 | 54603048100 clip nut M6 | clip nut M6 | 1 | $4.99 | Available | 1 |
| 30 | 0931100603 HH SCREW DIN0931-M10X60 | HH SCREW DIN0931-M10X60 | 2 | — | Obsolete | View Details |
| 31 | 0982100003 SELF LOCK.NUT DIN0982-M10 HIGH | SELF LOCK.NUT DIN0982-M10 HIGH | 2 | $2.99 | Available | 2 |
| 32 | 58403014000 ENGINE BRAC.SCREW M10X160 WS13 | ENGINE BRAC.SCREW M10X160 WS13 | 1 | — | Obsolete | View Details |
| 33 | 31004001100 WASHER 10,5 X 21 X 3 | WASHER 10,5 X 21 X 3 | 1 | — | Obsolete | View Details |
| 36 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | — | $7.14 | Available | 1 |
| 37 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 1 | $6.15 | Available | 1 |
| 38 | 5830303800090 *FOOTREST BRACKET L/S SILVER99 | *FOOTREST BRACKET L/S SILVER99 | 1 | — | Obsolete | View Details |
| 40 | 5830304000090 FOOTREST L/S SILVER '99 | FOOTREST L/S SILVER '99 | 1 | — | Obsolete | View Details |
| 41 | 5460314000090 FOOT REST R/S SILVER '98 | FOOT REST R/S SILVER '98 | 1 | — | Obsolete | View Details |
| 42 | 58303041000 FOOTREST SPRING L/S '93 | FOOTREST SPRING L/S '93 | 1 | — | Obsolete | View Details |
| 43 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | $6.15 | Available | 2 |
| 44 | 58303044000 BOLT FOR FOOTREST | BOLT FOR FOOTREST | 1 | — | Obsolete | View Details |
| 45 | 54603044000 BOLT FOR FOOTREST 9,8 X 50 | BOLT FOR FOOTREST 9,8 X 50 | 2 | $14.62 | Available | 2 |
| 46 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 47 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 51 | 58303045044 FOOTREST RUBBER CPL. '94 | FOOTREST RUBBER CPL. '94 | 2 | $21.22 | Available | 2 |
| 53 | 58403060000 CHAIN ROLL 12X29X22,5 '98 | CHAIN ROLL 12X29X22,5 '98 | 1 | $7.14 | Available | 1 |
| 55 | 58403060065 BUSH CHAIN ROLL 8X12X23 '98 | BUSH CHAIN ROLL 8X12X23 '98 | 1 | $3.99 | Available | 1 |
| 58 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 59 | 51103053000 CHAIN SLIDING PIECE BELOW '97 | CHAIN SLIDING PIECE BELOW '97 | 1 | $10.77 | Available | 1 |
| 60 | 51103053051 BUSHING 8,2X10X20 | BUSHING 8,2X10X20 | 1 | $4.99 | Available | 1 |
| 61 | 54403135000 PLASTIC CAP SFL10 | PLASTIC CAP SFL10 | 1 | $2.99 | Available | 1 |
| 68 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 2 | $2.99 | Available | 2 |
| 70 | 0015080303 HH COLLAR SCREW M 8X30 WS=10 | HH COLLAR SCREW M 8X30 WS=10 | 2 | $3.62 | Available | 2 |
| 71 | 0015080453 HH COLLAR SCREW M 8X45 WS=10 | HH COLLAR SCREW M 8X45 WS=10 | 1 | $2.99 | Available | 1 |
| 72 | 42007049000 PLASTIC CAP | PLASTIC CAP | — | — | Obsolete | View Details |
| 76 | 54510052100 SPROCKET SCREW-AH M8X26 WS=6 | SPROCKET SCREW-AH M8X26 WS=6 | 6 | $3.99 | Available | 6 |
| 77 | 54610052000 SPROCKET SCREW-AH M8X20 WS=6 | SPROCKET SCREW-AH M8X20 WS=6 | 2 | $2.99 | Available | 2 |
| 79 | 0125080003 washer DIN 125 A -8.4 | washer DIN 125 A -8.4 | 1 | $1.99 | Available | 1 |
