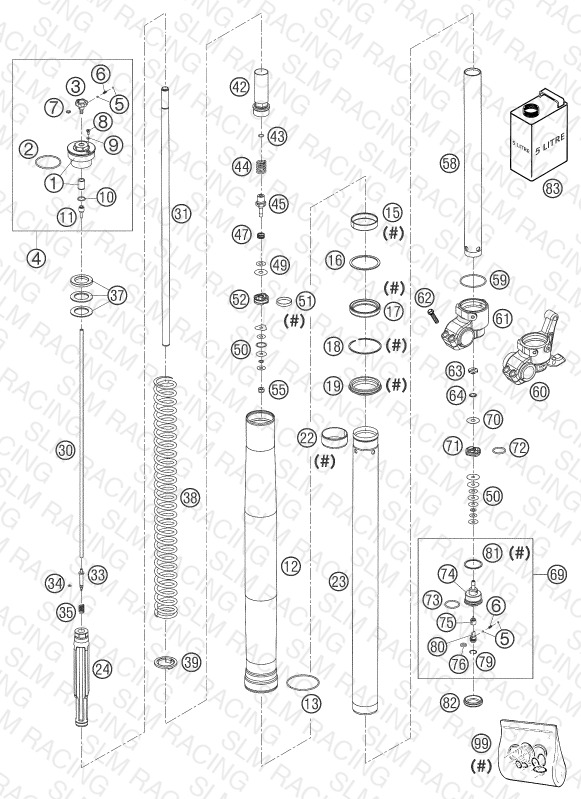

FRONT FORK DISASSEMBLED

← FRONT BRAKE CONTROL FRONT FORK, TRIPLE CLAMP →

Parts (81)

#	Part Number	Description	Qty	Price	Status
1	48600020S SREW CAP+BUSH M51X1,5	SREW CAP+BUSH M51X1,5	2	$47.06	Obsolete	View Details
2	46810340 O-ring 45x2 NBR70 siliconized	O-ring 45x2 NBR70 siliconized	2	$1.20	Available	2
3	48600018 Adjuster rebound	Adjuster rebound	2	$4.83	Available	2
4	48600020S1 SCREW CAP M51X1,5 CPL.	SCREW CAP M51X1,5 CPL.	2	$118.39	Obsolete	View Details
5	40540603 Steel ball d3	Steel ball d3	8	$1.20	Available	8
6	48600028 Spring (1,7) l7,9	Spring (1,7) l7,9	4	$3.62	Available	4
7	48600044 O-ring 6x1,5 NBR70	O-ring 6x1,5 NBR70	2	$1.20	Available	2
8	48600058 Cross flat head screw M4x6	Cross flat head screw M4x6	2	$2.19	Out of Stock	Notify Me
9	48600009 O-ring 3,7x1,6 NBR70	O-ring 3,7x1,6 NBR70	2	$1.20	Available	2
10	48600043 O-ring 12x1,5 NBR70	O-ring 12x1,5 NBR70	2	$2.41	Available	2
11	48600019 Tube tap d4x25	Tube tap d4x25	2	$3.62	Available	2
12	43570211 OUTER TUBE L=577 D=54/57 03	OUTER TUBE L=577 D=54/57 03 ANTHRACITE	2	$698.43	Obsolete	View Details
13	43570099 Round-wire snap ring 53x2	Round-wire snap ring 53x2	2	$31.12	Available	2
15	43570204 pilot bushing 43x47x12	pilot bushing 43x47x12	2	$28.44	Obsolete	View Details
16	43570092 Supportwasher 45x52,5x1,5	Supportwasher 45x52,5x1,5	2	$23.64	Available	2
12	43570209 OUTER TUBE L=577 D=54/57 03	OUTER TUBE L=577 D=54/57 03 GOLD - NATUREL	2	—	Check availability
17	43570201 Seal ring 43x52,9x9,5	Seal ring 43x52,9x9,5	2	$18.59	Obsolete	View Details
18	43570008 Snap ring SB53x1,5 acc drawing	Snap ring SB53x1,5 acc drawing	2	$3.62	Available	2
19	43570202 Dirtscarper NOK 43mm	Dirtscarper NOK 43mm	2	$20.00	Obsolete	View Details
22	43570203 Guide bushing 42x44x20	Guide bushing 42x44x20	2	$28.44	Obsolete	View Details
23	43570145 INNER TUBE D=43MM L=585MM	INNER TUBE D=43MM L=585MM	2	—	Check availability
24	43570142S HYDR.STOP L=200MM D=27,5 CPL	HYDR.STOP L=200MM D=27,5 CPL	2	$55.86	Obsolete	View Details
30	48600014 ADJUSTMENT TUBE L=512MM	ADJUSTMENT TUBE L=512MM	2	$16.60	Obsolete	View Details
31	48600250 PISTON ROD D=14 L=546 M11X1	PISTON ROD D=14 L=546 M11X1	2	—	Check availability
33	48600189 Needle 6x42,6 rebound	Needle 6x42,6 rebound	2	$40.80	Available	2
34	48600046 O-ring 3x1,5 NBR70	O-ring 3x1,5 NBR70	2	$1.99	Available	2
35	48600033 Spring (7,2) 4-23 needle	Spring (7,2) 4-23 needle	2	$6.15	Available	2
51	48600060 Pistonring 26x28x5	Pistonring 26x28x5	2	$6.15	Available	2
52	48600042 Piston 6,05x27,65x12 rebound	Piston 6,05x27,65x12 rebound	2	$14.19	Out of Stock	Notify Me
55	40540486 Nut M6x0,5 h6,5 WAF10 rebound	Nut M6x0,5 h6,5 WAF10 rebound	2	$4.83	Available	2
58	48600081 TUBE 29,3X1X390 D=8,5MM	TUBE 29,3X1X390 D=8,5MM	2	$186.99	Out of Stock	Notify Me
59	43570023 O-ring 41x2 NBR70 siliconized	O-ring 41x2 NBR70 siliconized	2	$15.94	Available	2
60	43570124 AXLE CLAMP L/S 260MM M8 2000	AXLE CLAMP L/S 260MM M8 2000	1	$408.69	Obsolete	View Details
61	43570123 AXLE CLAMP RIGHT M8 2000	AXLE CLAMP RIGHT M8 2000	1	$195.23	Obsolete	View Details
62	50600061 HH COLLAR SCREW M 8X30	HH COLLAR SCREW M 8X30	4	$5.24	Obsolete	View Details
63	48600163 Nut valve M6x0,5 h6,5 WAF17	Nut valve M6x0,5 h6,5 WAF17	2	$3.62	Available	2
64	48600202 Spring (8,5) l6,5 valve	Spring (8,5) l6,5 valve	2	$2.41	Available	2
69	48600152S1 TAP COMPRESSION CPL. 03	TAP COMPRESSION CPL. 03	2	$99.84	Obsolete	View Details
70	48600061 Shim 8x24x0,40	Shim 8x24x0,40	2	$2.41	Available	2
71	48600047 Piston 6x27,8x9 compression	Piston 6x27,8x9 compression	2	$11.54	Available	2
72	46811499 O-ring 21x2 NBR70	O-ring 21x2 NBR70	2	$1.20	Available	2
73	35480320 O-ring 24x2 NBR70	O-ring 24x2 NBR70	2	$1.20	Available	2
74	48600152 TAP COMPRESSION	TAP COMPRESSION	2	$48.65	Obsolete	View Details
75	48600190 Needle 10x11,6 compression	Needle 10x11,6 compression	2	$16.05	Special Order	2
76	48600049 O-ring 8x2 NBR70	O-ring 8x2 NBR70	2	$1.20	Available	2
79	48600051 Round-wire snap ring 12x1 DIN7	Round-wire snap ring 12x1 DIN7	2	$3.62	Available	2
80	48600034 Adjustment screw slot compress	Adjustment screw slot compress	2	$8.86	Obsolete	View Details
81	48600004 Copper disc 29,5x33,5x1	Copper disc 29,5x33,5x1	2	$4.83	Available	2
82	48600141 Rubber cap 35x10 NBR80	Rubber cap 35x10 NBR80	2	$4.83	Available	2
83	48600211S1 FORK OIL SAE 5	FORK OIL SAE 5	1	—	Check availability
99	R510 REPAIR-KIT GASKET 4357 MXMA 03	REPAIR-KIT GASKET 4357 MXMA 03	1	$122.36	Obsolete	View Details
37	48600036 Preload bush 42x26,5x2,5	Preload bush 42x26,5x2,5	2	$2.41	Available	2
37	48600037 Preload bush 26,5x42x5	Preload bush 26,5x42x5	4	$4.83	Available	4
37	48600053 Preload bush 26,5x42x1,5	Preload bush 26,5x42x1,5	4	$4.83	Available	4
38	95010010S SPRING 3,6 N/MM SET D=4,6MM	SPRING 3,6 N/MM SET D=4,6MM	0	$173.24	Obsolete	View Details
38	95010002S SPRING 4,0 N/MM SET D=4,75MM	SPRING 4,0 N/MM SET D=4,75MM	0	$173.24	Obsolete	View Details
38	95010003S SPRING 4,2 N/MM SET D=4,9MM	SPRING 4,2 N/MM SET D=4,9MM	1	$173.24	Obsolete	View Details
38	95010012S SPRING 4,4 N/MM SET D=4,9MM	SPRING 4,4 N/MM SET D=4,9MM	0	$173.24	Obsolete	View Details
38	95010022S SPRING 5,0 N/MM SET D=5,0MM	SPRING 5,0 N/MM SET D=5,0MM	0	$135.00	Obsolete	View Details
39	43570131 Spring retainer 33,5x38,2x3	Spring retainer 33,5x38,2x3	2	$21.22	Available	2
42	48600200S SCREW SLEEVE M29,3X1 L=65 CPL.	SCREW SLEEVE M29,3X1 L=65 CPL.	2	$147.19	Obsolete	View Details
43	48600239 O-ring 8x1,25 NBR70 siliconize	O-ring 8x1,25 NBR70 siliconize	2	$1.99	Available	2
44	48600192 REBOUND SPRING D=15MM L=34,5MM	REBOUND SPRING D=15MM L=34,5MM	2	$17.91	Obsolete	View Details
45	48600203 Tap 6x45 rebound	Tap 6x45 rebound	2	$10.08	Obsolete	View Details
47	35480377 Spring (11,7) 1,5-8 valve	Spring (11,7) 1,5-8 valve	2	$2.41	Available	2
49	48600062 CHECK VALVE 8X24X0,1	CHECK VALVE 8X24X0,1	8	$2.41	Available	8
49	48600068 CHECK VALVE 8X18X0,1	CHECK VALVE 8X18X0,1	2	$4.37	Obsolete	View Details
49	48600215 Shim 8x20x0,10	Shim 8x20x0,10	2	$2.41	Available	2
49	48600216 Shim 8x22x0,10	Shim 8x22x0,10	2	$2.41	Available	2
50	48600063 Shim 6x24x0,10	Shim 6x24x0,10	0	$2.41	Available	1
50	48600064 Shim 6x22x0,10	Shim 6x22x0,10	0	$2.41	Available	1
50	48600065 Shim 6x20x0,10	Shim 6x20x0,10	0	$2.41	Available	1
50	48600116 Shim 6x24x0,10 delta	Shim 6x24x0,10 delta	0	$2.41	Available	1
50	48600139 SHIM 6X22X0,1 DELTA	SHIM 6X22X0,1 DELTA	0	$2.41	Available	1
50	40540401 Shim 6x14x0,10	Shim 6x14x0,10	0	$2.41	Available	1
50	40540402 Shim 6x16x0,10	Shim 6x16x0,10	0	$2.41	Available	1
50	40540403 Shim 6x18x0,10	Shim 6x18x0,10	0	$2.41	Available	1
50	40540414 SHIM 6X16X0,25	SHIM 6X16X0,25	0	$2.41	Available	1
50	40540415 SHIM 6X18X0,25	SHIM 6X18X0,25	0	$2.41	Available	1
50	40540447 Shim 6x10x0,30	Shim 6x10x0,30	0	$2.41	Out of Stock	Notify Me
50	40541391 Shim 6x11x0,30	Shim 6x11x0,30	0	$2.41	Available	1
