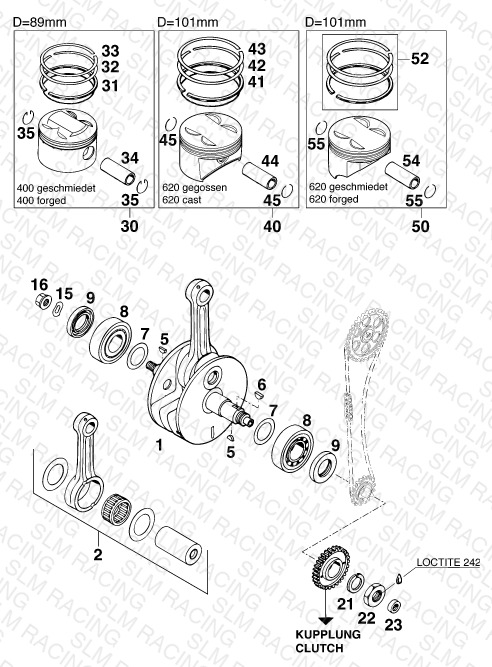

CRANKSHAFT, PISTON
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 57630018000 CRANKSHAFT CPL. 400 LC4 '97 | CRANKSHAFT CPL. 400 LC4 '97 | 1 | — | Check availability | View Details |
| 1 | 58330018000 CRANKSHAFT CPL. 540/620 LC4' | CRANKSHAFT CPL. 540/620 LC4' | 1 | — | Check availability | |
| 2 | 58030015044 CONNECTING ROD REPAIR SET LC4 | CONNECTING ROD REPAIR SET LC4 | 1 | — | Check availability | View Details |
| 2 | 58330015044 CONNECTING ROD REPAIR SET LC | CONNECTING ROD REPAIR SET LC | 1 | — | Check availability | View Details |
| 5 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 2 | — | Check availability | |
| 6 | 6946005 WOODRUFF KEY 5X6,5 HARDED | WOODRUFF KEY 5X6,5 HARDED | 1 | — | Check availability | |
| 7 | 56030081000 THRUST WASHER 30,5X45X0,10 | THRUST WASHER 30,5X45X0,10 | 0 | — | Check availability | |
| 7 | 56030081100 THRUST WASHER 30,7X47X0,15 | THRUST WASHER 30,7X47X0,15 | 0 | — | Check availability | |
| 7 | 56030081200 THRUST WASHER 30,5X45X0,30 | THRUST WASHER 30,5X45X0,30 | 0 | — | Check availability | |
| 8 | 58030082000 CYL.ROLLER BEARING NJ 306 C3 | CYL.ROLLER BEARING NJ 306 C3 | 2 | — | Check availability | |
| 9 | 0760304771 SHAFT SEAL RING 30X47X7 BSL | SHAFT SEAL RING 30X47X7 BSL | 2 | — | Check availability | |
| 15 | 0137120000 SPRING WASHER DIN0137-B12 | SPRING WASHER DIN0137-B12 | 1 | — | Check availability | |
| 16 | 51030028100 COLLAR NUT M12X1 LEFT WS=17 | COLLAR NUT M12X1 LEFT WS=17 | 1 | — | Check availability | |
| 21 | 58030019000 LOCKING RING VSK 20 | LOCKING RING VSK 20 | 1 | — | Check availability | |
| 22 | 0936200155 HEXAGON NUT DIN0936-M20X1,5 | HEXAGON NUT DIN0936-M20X1,5 | 1 | — | Check availability | View Details |
| 23 | 0760122270 SHAFT SEAL RING 12 X 22 X 7 B | SHAFT SEAL RING 12 X 22 X 7 B | 1 | — | Check availability | |
| 30 | 57530007000 I PISTON I 89 MM CPL. FORGED | PISTON I 89 MM CPL. FORGED | 1 | — | Check availability | |
| 30 | 57530007000 II PISTON II 89MM CPL. FORGED | PISTON II 89MM CPL. FORGED | 1 | — | Check availability | |
| 31 | 57530031000 OIL SCRAPER RING 89MM | OIL SCRAPER RING 89MM | 1 | — | Check availability | View Details |
| 32 | 57530132000 TAPERED COMPR.PISTON RING 89MM | TAPERED COMPR.PISTON RING 89MM | 1 | — | Check availability | View Details |
| 33 | 57530032000 RECTANGULAR RING 89MM | RECTANGULAR RING 89MM | 1 | — | Check availability | |
| 34 | 58030033000 PISTON PIN 22 X 13 X 54,2 | PISTON PIN 22 X 13 X 54,2 | 1 | — | Check availability | View Details |
| 35 | 58030074000 CIRCLIP A 22 X 1,5 | CIRCLIP A 22 X 1,5 | 2 | — | Check availability | |
| 40 | 58330007300 I | 1 | — | Check availability | ||
| 40 | 58330007300 II | 1 | — | Check availability | ||
| 41 | 58330031300 OIL SCRAPER RING 101x2,5 | OIL SCRAPER RING 101x2,5 | 1 | — | Check availability | |
| 42 | 58330932100 TAP.COMPR.PISTON RING 101X1,25 | TAP.COMPR.PISTON RING 101X1,25 | 1 | — | Check availability | |
| 43 | 58330832000 RECTANGULAR RING 101x1,25 | RECTANGULAR RING 101x1,25 | 1 | — | Check availability | View Details |
| 44 | 58330833000 PISTON PIN 22 X 13 X 60 | PISTON PIN 22 X 13 X 60 | 1 | — | Check availability | |
| 45 | 58030074100 CIRCLIP C 22 X 1,5 | CIRCLIP C 22 X 1,5 | 2 | — | Check availability | View Details |
| 50 | 58330007200 PISTON 101 MM CPL. FORGED | PISTON 101 MM CPL. FORGED | 1 | — | Check availability | |
| 52 | 58330031244 PISTONRING SET KPL.101MM ARIAS | PISTONRING SET KPL.101MM ARIAS | 1 | — | Check availability | View Details |
| 54 | 58030833000 PISTON PIN 22 X 13,5 X 63,5 | PISTON PIN 22 X 13,5 X 63,5 | 1 | — | Check availability | |
| 55 | 58030874000 CIRCLIP C 22 X 1,2 | CIRCLIP C 22 X 1,2 | 2 | — | Check availability |
