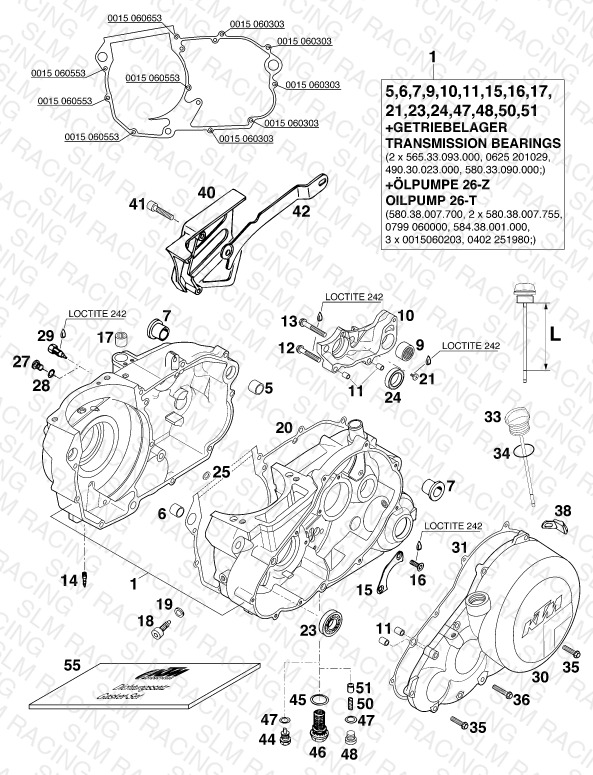

ENGINE CASE
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58330000344 ENG.CASE SC CPL.W.TRAN.BEAR'97 | ENG.CASE SC CPL.W.TRAN.BEAR'97 | 1 | $1257.51 | Out of Stock | Notify Me |
| 5 | 50130027000 DOWEL 19 X15,1X12 | DOWEL 19 X15,1X12 | 1 | — | Obsolete | View Details |
| 6 | 51030026100 DOWEL 17 X 13 X 12 | DOWEL 17 X 13 X 12 | 1 | $7.58 | Available | 1 |
| 7 | 50130010000 CRANK CASE BUSH | CRANK CASE BUSH | 2 | — | Obsolete | View Details |
| 9 | 58033097000 NEEDLE BEARING HK 2216 | NEEDLE BEARING HK 2216 | 4 | $16.49 | Available | 4 |
| 10 | 58330011000 SHIFT MECHANISM SUPPORT LC4'94 | SHIFT MECHANISM SUPPORT LC4'94 | 1 | — | Obsolete | View Details |
| 11 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | $2.99 | Available | 2 |
| 12 | 0015060353 HH COLLAR SCREW M 6X35 WS=8 | HH COLLAR SCREW M 6X35 WS=8 | — | $3.99 | Available | 1 |
| 13 | 0015060403 HH COLLAR SCREW M 6X40 WS=8 | HH COLLAR SCREW M 6X40 WS=8 | 1 | $3.99 | Available | 1 |
| 14 | 49130450050 TUBE LW 3 | TUBE LW 3 | 1 | — | Obsolete | View Details |
| 15 | 56530017000 RETAINING PLATE | RETAINING PLATE | 1 | — | Obsolete | View Details |
| 16 | 0991060163 FLAT HEAD SCR. DIN7991-M 6X16 | FLAT HEAD SCR. DIN7991-M 6X16 | 5 | $2.99 | Available | 5 |
| 17 | 50332095000 NEEDLE BEARING HK 1212 | NEEDLE BEARING HK 1212 | 2 | $9.45 | Available | 2 |
| 18 | 58030080000 LOCATING SCREW M8 L=23 | LOCATING SCREW M8 L=23 | 1 | $14.84 | Available | 1 |
| 19 | 58030081000 CU-SEAL RING 8 X 14 X 3 | CU-SEAL RING 8 X 14 X 3 | 1 | $2.99 | Available | 1 |
| 20 | 58430039000 ENGINE CASE GASKET LC4-E '96 | ENGINE CASE GASKET LC4-E '96 | 1 | — | Obsolete | View Details |
| 21 | 0985050103 OVAL HEAD SCR. DIN7985-M 5X10 | OVAL HEAD SCR. DIN7985-M 5X10 | 1 | $1.99 | Available | 1 |
| 23 | 0625160030 GROOVED BALL BEARING 16003 C3 | GROOVED BALL BEARING 16003 C3 | 1 | $24.19 | Available | 1 |
| 24 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | $51.69 | Available | 1 |
| 25 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 27 | 0910100003 PLUG DIN0910-M 10X1 | PLUG DIN0910-M 10X1 | 1 | $4.99 | Available | 1 |
| 28 | 58038032010 CU-SEAL RING DIN7603-10X14X1 | CU-SEAL RING DIN7603-10X14X1 | 7 | — | Obsolete | View Details |
| 29 | 58011081100 CONTACT SCREW M10 STEEL '98 | CONTACT SCREW M10 STEEL '98 | — | $22.76 | Available | 1 |
| 31 | 58330025000 CLUTCH COVER GASKET '94 | CLUTCH COVER GASKET '94 | 1 | $25.84 | Available | 1 |
| 33 | 58330020144 OIL DIPSTICK CPL. L=93MM '96 | OIL DIPSTICK CPL. L=93MM '96 | 1 | — | Obsolete | View Details |
| 34 | 0770160030 O-RING 16,00X3,00 NBR 70 | O-RING 16,00X3,00 NBR 70 | 1 | $2.99 | Available | 1 |
| 35 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | $3.99 | Available | 5 |
| 36 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 1 | $3.99 | Available | 1 |
| 38 | 58333041000 BUMP RUBBER | BUMP RUBBER | 1 | — | Obsolete | View Details |
| 40 | 58030050600 CHAIN COVER BLACK ' | CHAIN COVER BLACK ' | 1 | — | Obsolete | View Details |
| 41 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | $2.99 | Available | 4 |
| 42 | 58030047515 CHAIN DAMPER SHEET LC4 '90 | CHAIN DAMPER SHEET LC4 '90 | 1 | — | Obsolete | View Details |
| 44 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 45 | 58038017100 CU-SEAL RING DIN7603-22X27X2 | CU-SEAL RING DIN7603-22X27X2 | 1 | $3.99 | Available | 1 |
| 46 | 58038019100 OIL DRAIN PLUG M22X1,5 | OIL DRAIN PLUG M22X1,5 | 1 | — | Obsolete | View Details |
| 47 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 48 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | $4.99 | Available | 1 |
| 50 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | $6.15 | Available | 1 |
| 51 | 58038028000 VALVE PISTON D=10MM | VALVE PISTON D=10MM | 1 | $44.43 | Available | 1 |
| 55 | 58330099200 GASKET SET 400/620 SC,EGS '97 | GASKET SET 400/620 SC,EGS '97 | 1 | — | Obsolete | View Details |
