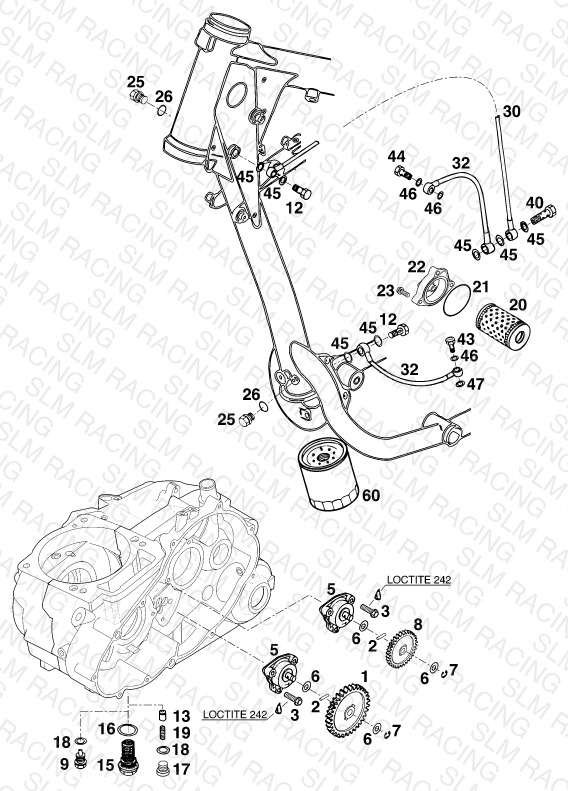

LUBRICATING SYSTEM
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58038001100 OIL PUMP GEAR 31-T | OIL PUMP GEAR 31-T | 1 | $5.29 | Obsolete | View Details |
| 2 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 | NEEDLEROL.DIN5402 NRA 2,5X19,8 | 2 | $1.99 | Available | 2 |
| 3 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $1.14 | Obsolete | View Details |
| 5 | 58038007100 OIL PUMP MIKUNI G-73 LC4' | OIL PUMP MIKUNI G-73 LC4' | 2 | — | Check availability | |
| 6 | 58038007755 STOP DISK 8,1 X 15 X 0,5 | STOP DISK 8,1 X 15 X 0,5 | 4 | $2.99 | Available | 4 |
| 7 | 0799060000 TAB WASHER DIN6799-RS 6,0 | TAB WASHER DIN6799-RS 6,0 | 2 | $2.99 | Available | 2 |
| 8 | 58438001000 OIL PUMP GEAR 26-T | OIL PUMP GEAR 26-T | 1 | $11.21 | Available | 1 |
| 9 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $12.48 | Obsolete | View Details |
| 12 | 54313025000 HOLLOW SCREW M10 X 1 | HOLLOW SCREW M10 X 1 | 2 | $7.65 | Obsolete | View Details |
| 13 | 58038028000 VALVE PISTON D=10MM | VALVE PISTON D=10MM | 1 | $44.43 | Available | 1 |
| 15 | 58038019100 OIL DRAIN PLUG M22X1,5 | OIL DRAIN PLUG M22X1,5 | 1 | $32.49 | Obsolete | View Details |
| 16 | 58038017100 CU-SEAL RING DIN7603-22X27X2 | CU-SEAL RING DIN7603-22X27X2 | 1 | $3.99 | Available | 1 |
| 17 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | $4.99 | Available | 1 |
| 18 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 2 | $2.99 | Available | 2 |
| 19 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | $6.15 | Available | 1 |
| 20 | 58038005000 OIL FILTER LONG | OIL FILTER LONG | 1 | — | Check availability | |
| 21 | 0770055020 0-RING 55,00X2,00 NBR70 | 0-RING 55,00X2,00 NBR70 | 1 | $2.99 | Available | 1 |
| 22 | 58030008600 FILTER COVER M10x1 | FILTER COVER M10x1 | 1 | — | Check availability | |
| 23 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 3 | $1.03 | Obsolete | View Details |
| 25 | 0910100003 PLUG DIN0910-M 10X1 | PLUG DIN0910-M 10X1 | 2 | $4.99 | Available | 2 |
| 26 | 58038022900 CU-SEAL RING 10 X 14 X 1,5 | CU-SEAL RING 10 X 14 X 1,5 | 2 | $2.99 | Available | 2 |
| 30 | 58038234700 OIL LINE FILTER-FRAME TUBE | OIL LINE FILTER-FRAME TUBE | 1 | $66.99 | Obsolete | View Details |
| 32 | 58338034000 OIL LINE CLUTCH COVER-FRAME | OIL LINE CLUTCH COVER-FRAME | 2 | $47.73 | Obsolete | View Details |
| 40 | 58038033100 DUAL BANJO BOLT M10 X 1 | DUAL BANJO BOLT M10 X 1 | 1 | $11.25 | Obsolete | View Details |
| 43 | 58038130000 JET SCREW M 8 X 1 ''150'' | JET SCREW M 8 X 1 ''150'' | 1 | $15.17 | Available | 1 |
| 44 | 58038030000 BANJO BOLT M8 X 1 DIN7643 | BANJO BOLT M8 X 1 DIN7643 | 1 | $3.41 | Obsolete | View Details |
| 45 | 58038032010 CU-SEAL RING DIN7603-10X14X1 | CU-SEAL RING DIN7603-10X14X1 | 7 | — | Check availability | |
| 46 | 58038032000 CU-SEAL RING DIN7603- 8X12X1 | CU-SEAL RING DIN7603- 8X12X1 | 3 | — | Check availability | |
| 47 | 58038032300 CU-SEAL RING 8 X 12 X 1,5 | CU-SEAL RING 8 X 12 X 1,5 | 1 | $2.99 | Obsolete | View Details |
| 60 | 58338045000 SCREW TYPE FILTER LC4' | SCREW TYPE FILTER LC4' | 1 | $29.00 | Obsolete | View Details |
