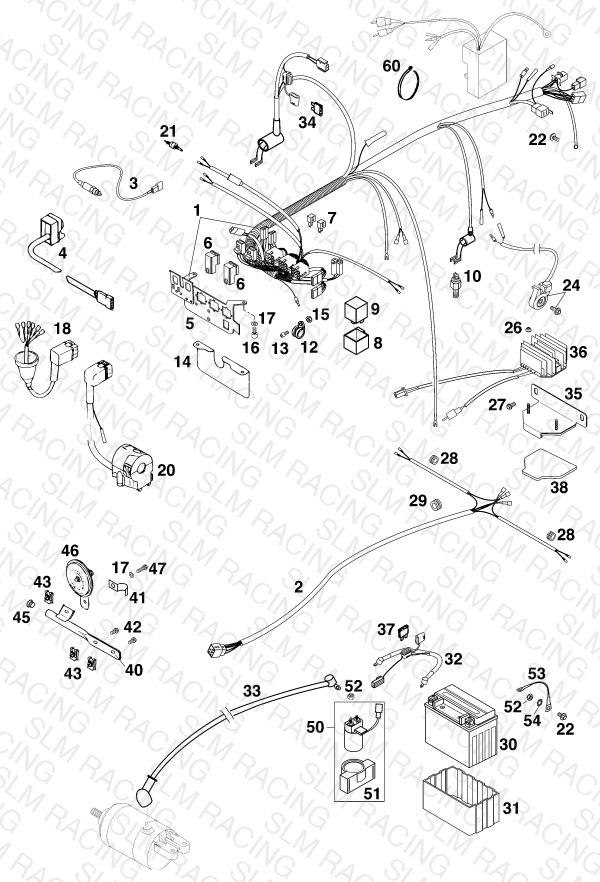

WIRING HARNESS
Parts (48)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 0 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 0 | — | Check availability | |
| 1 | 58411175000 WIRING HARNESS LC4-E CPL. '97 | WIRING HARNESS LC4-E CPL. '97 | 1 | — | Check availability | |
| 2 | 58411176000 WIRING HAR. REAR LC4-E/DUKE'97 | WIRING HAR. REAR LC4-E/DUKE'97 | 1 | — | Check availability | |
| 3 | 58411049000 CLUTCH SWITCH '96 | CLUTCH SWITCH '96 | 1 | — | Check availability | View Details |
| 4 | 58411074000 START-STOP SWITCH | START-STOP SWITCH | 1 | — | Check availability | View Details |
| 5 | 58411083000 BRACKET KPL. E-START '97 | BRACKET KPL. E-START '97 | 1 | — | Check availability | |
| 6 | 58411057000 STARTER RELAY '96 | STARTER RELAY '96 | 2 | — | Check availability | View Details |
| 7 | 58411096100 DIODE S3H-15 97 | DIODE S3H-15 97 | 2 | — | Check availability | |
| 8 | 54511046000 * FLASHER LIGHT BRACKET | * FLASHER LIGHT BRACKET | 1 | — | Check availability | |
| 9 | 44611207100 FLASHER UNIT HELLA BRK '96 | FLASHER UNIT HELLA BRK '96 | 1 | — | Check availability | View Details |
| 10 | 50311051000 REAR BRAKE LIGHT SWITCH ' | REAR BRAKE LIGHT SWITCH ' | 1 | — | Check availability | |
| 12 | 49007439000 CLAMP RSGU 15/12 | CLAMP RSGU 15/12 | 1 | — | Check availability | |
| 13 | 0912050123 AH SCREW DIN0912-M 5X12 | AH SCREW DIN0912-M 5X12 | 1 | — | Check availability | |
| 14 | 58311083051 COVER CONNECTOR SUPPORT '93 | COVER CONNECTOR SUPPORT '93 | 1 | — | Check availability | |
| 15 | 0985050003 Self locking nut DIN 985 M5 | Self locking nut DIN 985 M5 | 1 | — | Check availability | |
| 16 | 0912060123 AH SCREW DIN0912-M 6X12 | AH SCREW DIN0912-M 6X12 | 2 | — | Check availability | View Details |
| 17 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 3 | — | Check availability | |
| 18 | 58311077000 * WIRING HARNESS-IGNITION LOCK | * WIRING HARNESS-IGNITION LOCK | 1 | — | Check availability | |
| 20 | 58311570000 LIGHT SWITCH KPL. CEV '94 | LIGHT SWITCH KPL. CEV '94 | 1 | — | Check availability | |
| 21 | 51011050000 FRONT BRAKE LIGHT SWITCH | FRONT BRAKE LIGHT SWITCH | 1 | — | Check availability | View Details |
| 22 | 0014060103 HH COLLAR SCREW M 6X10 WS=8 | HH COLLAR SCREW M 6X10 WS=8 | 2 | — | Check availability | View Details |
| 24 | 58411045000 SIDE STAND SWITCH CPL. '97 | SIDE STAND SWITCH CPL. '97 | 1 | — | Check availability | |
| 26 | 56509064000 SELF LOCKING NUT M6 | SELF LOCKING NUT M6 | 2 | — | Check availability | |
| 27 | 0015060103 HH COLLAR SCREW M 6X10 WS=8 | HH COLLAR SCREW M 6X10 WS=8 | 2 | — | Check availability | View Details |
| 28 | 57511027000 RUBBER SLEEVE D=6MM OPEN | RUBBER SLEEVE D=6MM OPEN | 2 | — | Check availability | |
| 29 | 31008060000 rubber grommet D=8mm open | rubber grommet D=8mm open | 1 | — | Check availability | |
| 30 | 58411053000 BATTERY 12V 8AH '96 | BATTERY 12V 8AH '96 | 1 | — | Check availability | View Details |
| 31 | 58411053050 BATTERY COVER 96 | BATTERY COVER 96 | 1 | — | Check availability | |
| 32 | 58411059150 BATTERY CABLE 190MM 10A '97 | BATTERY CABLE 190MM 10A '97 | 1 | — | Check availability | |
| 33 | 58411059100 STARTERCABLE 700 MM '97 | STARTERCABLE 700 MM '97 | 1 | — | Check availability | |
| 34 | 58011109005 FUSE 5 A | FUSE 5 A | 1 | — | Check availability | View Details |
| 35 | 58411055100 BATTERY BRACKET LC4-E/DUKE'97 | BATTERY BRACKET LC4-E/DUKE'97 | 1 | — | Check availability | View Details |
| 36 | 58411034100 VOLT.REGULATOR-RECTIFIER 12V | VOLT.REGULATOR-RECTIFIER 12V | 1 | — | Check availability | |
| 37 | 58011109010 FUSE 10 A | FUSE 10 A | 1 | — | Check availability | View Details |
| 38 | 58411055150 METAMOLL FOR BATTERY BRACKET | METAMOLL FOR BATTERY BRACKET | 1 | — | Check availability | View Details |
| 40 | 58307021000 BRACKET FOR HORN '93 | BRACKET FOR HORN '93 | 1 | — | Check availability | View Details |
| 41 | 50211096000 CLAMP FOR WIRING HARNESS | CLAMP FOR WIRING HARNESS | 1 | — | Check availability | |
| 42 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 | HH COLLAR SCREW M 6X12 WS=8 | 2 | — | Check availability | View Details |
| 43 | 54603048100 clip nut M6 | clip nut M6 | 3 | — | Check availability | |
| 45 | 50210086000 Plug SFL16 | Plug SFL16 | 1 | — | Check availability | |
| 46 | 54511060100 DC HORN 12V NIKKO | DC HORN 12V NIKKO | 1 | — | Check availability | |
| 47 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 1 | — | Check availability | View Details |
| 50 | 58411058000 STARTER RELAY WITH HOLD.RUBBER | STARTER RELAY WITH HOLD.RUBBER | 1 | — | Check availability | View Details |
| 51 | 58411058050 HOLD. RUBBER FOR STARTRELAY | HOLD. RUBBER FOR STARTRELAY | 1 | — | Check availability | |
| 52 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 2 | — | Check availability | |
| 53 | 58411097100 GROUND CABLE D=6MM L=140MM '97 | GROUND CABLE D=6MM L=140MM '97 | 1 | — | Check availability | |
| 54 | 58411098100 CONTACT WASHER M6 VSV-K6 | CONTACT WASHER M6 VSV-K6 | 1 | — | Check availability | |
| 60 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 0 | — | Check availability |
