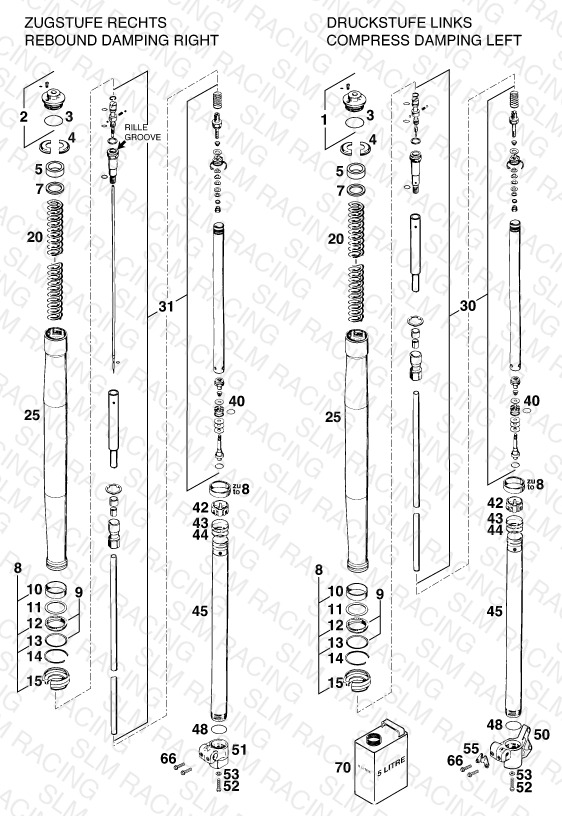

FRONT FORK DISASSEMBLED
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58301008600 % SCREW CAP CPL. L/S "COM" | % SCREW CAP CPL. L/S "COM" | 1 | — | Obsolete | View Details |
| 2 | 58301009600 % SCREW CAP CPL. R/S "REB" | % SCREW CAP CPL. R/S "REB" | 1 | — | Obsolete | View Details |
| 3 | 0770430030 O-RING 43,00X3,00 | O-RING 43,00X3,00 | 2 | — | Obsolete | View Details |
| 4 | 54501050000 % KEY HALF | % KEY HALF | 4 | — | Obsolete | View Details |
| 5 | 56401022000 * PRELOAD BUSHING 25X34X5 | * PRELOAD BUSHING 25X34X5 | — | — | Obsolete | View Details |
| 5 | 56401022100 % PRELOAD BUSHING 25X34X10 | % PRELOAD BUSHING 25X34X10 | 2 | — | Obsolete | View Details |
| 5 | 56401022200 * PRELOAD BUSHING 25X34X2,5 | * PRELOAD BUSHING 25X34X2,5 | — | — | Obsolete | View Details |
| 7 | 54501019000 WASHER 24,5X34X2 | WASHER 24,5X34X2 | 2 | — | Obsolete | View Details |
| 8 | 50201668244 % REPAIR KIT SEAL S.RINGS+BUSH | % REPAIR KIT SEAL S.RINGS+BUSH | 2 | — | Obsolete | View Details |
| 9 | 50201669244 REPAIR KIT SEAL SHAFT RINGS | REPAIR KIT SEAL SHAFT RINGS | 2 | — | Obsolete | View Details |
| 10 | 57501026000 GUIDE BUSHING 40 X 44 X 20-1 | GUIDE BUSHING 40 X 44 X 20-1 | 2 | — | Obsolete | View Details |
| 11 | 56401027000 RING 42X49,2X1,5 | RING 42X49,2X1,5 | 2 | — | Obsolete | View Details |
| 12 | 58001805000 SHAFT SEAL RING 40X49,5X9LF | SHAFT SEAL RING 40X49,5X9LF | 2 | — | Obsolete | View Details |
| 13 | 56401127000 RING 49,5X45X1 | RING 49,5X45X1 | 2 | — | Obsolete | View Details |
| 14 | 56401029000 SEEGER LOCK RING SB50 | SEEGER LOCK RING SB50 | 2 | — | Obsolete | View Details |
| 15 | 56401025100 DUST BELLOWS D40 ' | DUST BELLOWS D40 ' | 2 | — | Obsolete | View Details |
| 20 | 54501021405 * SPRING 530 MM / 4,0 KG | * SPRING 530 MM / 4,0 KG | — | — | Obsolete | View Details |
| 20 | 54501021420 * SPRING 543 MM / 4,2 KG | * SPRING 543 MM / 4,2 KG | — | — | Obsolete | View Details |
| 20 | 54501021440 SPRING 530 MM / 4,4 KG | SPRING 530 MM / 4,4 KG | 2 | — | Obsolete | View Details |
| 20 | 54501021460 * SPRING 530 MM / 4,6 KG | * SPRING 530 MM / 4,6 KG | — | — | Obsolete | View Details |
| 25 | 57601004000 * OUTER TUBE L=606MM ' | * OUTER TUBE L=606MM ' | 2 | — | Obsolete | View Details |
| 30 | 58301010600 * CARTRIDGE CPL. L/S "0618Q712 | * CARTRIDGE CPL. L/S "0618Q712 | 1 | — | Obsolete | View Details |
| 31 | 58301011600 * CARTRIDGE CPL. R/S "0618Q712 | * CARTRIDGE CPL. R/S "0618Q712 | 1 | — | Obsolete | View Details |
| 40 | 0770020160 O-RING 15,60X1,78 | O-RING 15,60X1,78 | 2 | — | Obsolete | View Details |
| 42 | 54501077000 BUSHING | BUSHING | 2 | — | Obsolete | View Details |
| 43 | 54501045000 ANILLO DE RODAMIENTO 42,8X13 | ANILLO DE RODAMIENTO 42,8X13 | 2 | — | Obsolete | View Details |
| 44 | 54501046000 % RING 39X42X1 | % RING 39X42X1 | 2 | — | Obsolete | View Details |
| 45 | 54501003300 % INNER TUBE L=625MM "0618Q712 | % INNER TUBE L=625MM "0618Q712 | 2 | — | Obsolete | View Details |
| 48 | 0770380020 O-RING 38,00X2,00 NBR 70 SH | O-RING 38,00X2,00 NBR 70 SH | 3 | $3.99 | Available | 3 |
| 50 | 58301006600 AXLE CLAMP L/S (300MM) | AXLE CLAMP L/S (300MM) | 1 | — | Obsolete | View Details |
| 51 | 58301007600 AXLE CLAMP R/S | AXLE CLAMP R/S | 1 | — | Obsolete | View Details |
| 52 | 54501082100 * HH COLLAR SCREW M 8X30 | * HH COLLAR SCREW M 8X30 | 2 | — | Obsolete | View Details |
| 53 | 54501081000 SEAL RING 8X12X1,5 | SEAL RING 8X12X1,5 | 2 | — | Obsolete | View Details |
| 55 | 50201090000 CLAMP FOR BRAKE HOSE '94 | CLAMP FOR BRAKE HOSE '94 | 1 | — | Obsolete | View Details |
| 66 | 0015070253 HH COLLAR SCREW M 7X25 WS=8 | HH COLLAR SCREW M 7X25 WS=8 | 4 | — | Obsolete | View Details |
| 70 | 306007 FORK OIL SAE5 5 LITER | FORK OIL SAE5 5 LITER | 1 | — | Obsolete | View Details |
