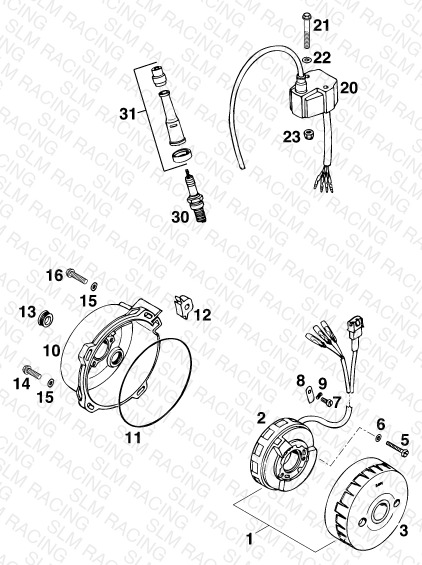

IGNITION SYSTEM
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58031002100 IGNITION SEM K11/60G-08 LEFT | IGNITION SEM K11/60G-08 LEFT | 1 | — | Check availability | |
| 2 | 58031002050 STATOR LOOSE ''13'' | STATOR LOOSE ''13'' | 1 | $422.05 | Obsolete | View Details |
| 3 | 58031002051 ROTOR LOOSE | ROTOR LOOSE | 1 | $178.09 | Obsolete | View Details |
| 5 | 0084050303 *CYLINDER SCREW DIN0084-M 5X30 | *CYLINDER SCREW DIN0084-M 5X30 | 3 | — | Check availability | |
| 6 | 0125050003 WASHER DIN0125-A 5,3 | WASHER DIN0125-A 5,3 | 3 | $1.99 | Available | 3 |
| 7 | 0500050083 SPECIAL SCREW DIN7500-M 5X 8 | SPECIAL SCREW DIN7500-M 5X 8 | 1 | — | Check availability | |
| 8 | 50031003000 RETAINING PLATE | RETAINING PLATE | 1 | $3.14 | Special Order | 1 |
| 9 | 0137050003 * SPRING WASHER DIN0137-B 5 | * SPRING WASHER DIN0137-B 5 | 1 | — | Check availability | |
| 10 | 58030002200 IGNITION COVER BLACK | IGNITION COVER BLACK | 1 | $197.98 | Obsolete | View Details |
| 11 | 0770020490 O-RING 126,72X1,78 B70 | O-RING 126,72X1,78 B70 | 1 | $4.99 | Available | 1 |
| 12 | 58031004000 RUBBER SLEEVE | RUBBER SLEEVE | 1 | $5.79 | Obsolete | View Details |
| 13 | 58030002050 PLUG M18X1,5 | PLUG M18X1,5 | 1 | $8.39 | Obsolete | View Details |
| 14 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 1 | $1.14 | Obsolete | View Details |
| 15 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 4 | $1.99 | Available | 4 |
| 16 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 3 | $1.03 | Obsolete | View Details |
| 20 | 58031006000 * IGNITION COIL TM 14-05 | * IGNITION COIL TM 14-05 | 1 | — | Check availability | |
| 21 | 0015060453 HH COLLAR SCREW M 6X45 WS=8 | HH COLLAR SCREW M 6X45 WS=8 | 2 | $1.49 | Obsolete | View Details |
| 22 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 2 | $1.99 | Available | 2 |
| 23 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 2 | $2.99 | Available | 2 |
| 30 | 58031093005 SPARK PLUG NGK D8EA | SPARK PLUG NGK D8EA | 1 | $8.77 | Obsolete | View Details |
| 31 | 58031010000 Spark plug connector | Spark plug connector | 1 | $15.99 | Obsolete | View Details |
| 32 | 58031410044 * SPARK PLUG CONNEC.103000 MER | * SPARK PLUG CONNEC.103000 MER | 1 | — | Check availability |
