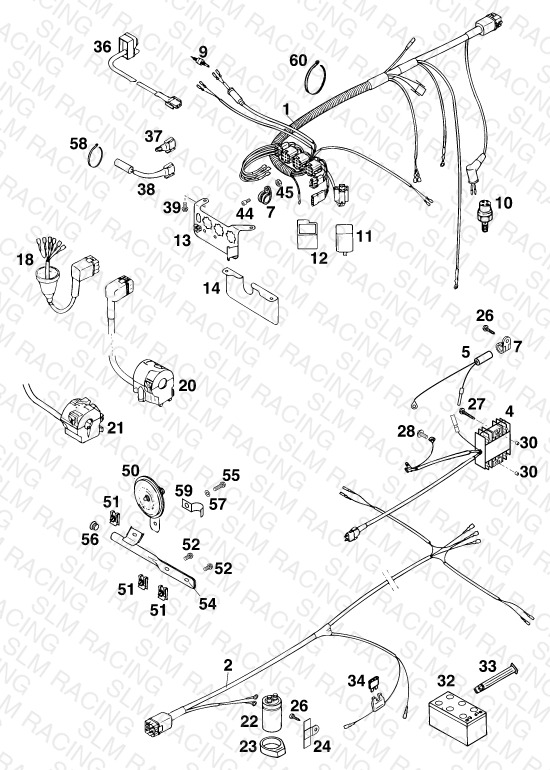

WIRING HARNESS
Parts (42)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 0 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 0 | $1.99 | Available | 1 |
| 0 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 0 | $2.99 | Available | 1 |
| 1 | 58311475100 MAIN WIRING HARNESS 4STR. '95 | MAIN WIRING HARNESS 4STR. '95 | 1 | — | Check availability | |
| 2 | 58311476000 * WIRING HARNESS REAR '93 | * WIRING HARNESS REAR '93 | 1 | — | Check availability | |
| 4 | 58311034000 % VOLTAGE REGULATOR SHINDENGEN | % VOLTAGE REGULATOR SHINDENGEN | 1 | — | Check availability | |
| 5 | 58311030100 DIODE FOR REGULATOR SHINDENGEN | DIODE FOR REGULATOR SHINDENGEN | 1 | $29.36 | Obsolete | View Details |
| 7 | 49007439000 CLAMP RSGU 15/12 | CLAMP RSGU 15/12 | 2 | $6.15 | Available | 2 |
| 9 | 51011050000 FRONT BRAKE LIGHT SWITCH | FRONT BRAKE LIGHT SWITCH | 1 | $20.91 | Obsolete | View Details |
| 10 | 42013121000 BRAKE LIGHT SWITCH | BRAKE LIGHT SWITCH | 1 | $37.76 | Obsolete | View Details |
| 11 | 44611207000 * FLASHER UNIT | * FLASHER UNIT | 1 | — | Check availability | |
| 12 | 54511046000 * FLASHER LIGHT BRACKET | * FLASHER LIGHT BRACKET | 1 | — | Check availability | |
| 13 | 58311083000 CONNECTOR SUPPORT '93 | CONNECTOR SUPPORT '93 | 1 | — | Check availability | |
| 14 | 58311083051 COVER CONNECTOR SUPPORT '93 | COVER CONNECTOR SUPPORT '93 | 1 | — | Check availability | |
| 18 | 58311077000 * WIRING HARNESS-IGNITION LOCK | * WIRING HARNESS-IGNITION LOCK | 1 | — | Check availability | |
| 20 | 58311570000 LIGHT SWITCH KPL. CEV '94 | LIGHT SWITCH KPL. CEV '94 | 1 | — | Check availability | |
| 21 | 58311470100 % LIGHT SWITCH | % LIGHT SWITCH | 1 | — | Check availability | |
| 22 | 49111435100 CONDENSATOR 25V, 10.000 MF | CONDENSATOR 25V, 10.000 MF | 1 | $67.75 | Obsolete | View Details |
| 23 | 54511048000 CAPACITOR BRACKET | CAPACITOR BRACKET | 2 | $5.22 | Obsolete | View Details |
| 24 | 54611448000 BRACKET FOR CAPACITOR | BRACKET FOR CAPACITOR | 1 | — | Check availability | |
| 26 | 0981550193 SHEET MET.SCR.DIN7981- 5,5x19 | SHEET MET.SCR.DIN7981- 5,5x19 | 2 | $0.89 | Obsolete | View Details |
| 27 | 0981550393 SHEET MET.SCR.DIN7981- 5,5X39 | SHEET MET.SCR.DIN7981- 5,5X39 | 2 | $0.79 | Obsolete | View Details |
| 28 | 0014060103 HH COLLAR SCREW M 6X10 WS=8 | HH COLLAR SCREW M 6X10 WS=8 | 1 | $1.77 | Obsolete | View Details |
| 30 | 56535035000 BUSHING 6,5 X 12 X 9 | BUSHING 6,5 X 12 X 9 | 2 | — | Check availability | |
| 32 | 54511008000 BATTERY 12V 1,2AH | BATTERY 12V 1,2AH | 1 | — | Check availability | |
| 33 | 54611186000 RUBBER BAND | RUBBER BAND | 1 | $6.15 | Out of Stock | Notify Me |
| 34 | 58011109010 FUSE 10 A | FUSE 10 A | 1 | $1.83 | Obsolete | View Details |
| 36 | 58311071100 SHORT CIRCUIT SWITCH 550MM '94 | SHORT CIRCUIT SWITCH 550MM '94 | 1 | $36.95 | Obsolete | View Details |
| 37 | 58311090000 * DIODE CONNECTOR '93 | * DIODE CONNECTOR '93 | 1 | — | Check availability | |
| 38 | 58311030000 * DIODE WITH CONNECTOR '93 | * DIODE WITH CONNECTOR '93 | 1 | — | Check availability | |
| 39 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 | HH COLLAR SCREW M 6X12 WS=8 | 2 | $2.12 | Obsolete | View Details |
| 44 | 0912050123 AH SCREW DIN0912-M 5X12 | AH SCREW DIN0912-M 5X12 | 1 | $2.99 | Available | 1 |
| 45 | 0985050003 Self locking nut DIN 985 M5 | Self locking nut DIN 985 M5 | 1 | $2.99 | Available | 1 |
| 50 | 54511060100 DC HORN 12V NIKKO | DC HORN 12V NIKKO | 1 | — | Check availability | |
| 51 | 54603048100 clip nut M6 | clip nut M6 | 3 | $4.99 | Available | 3 |
| 52 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 | HH COLLAR SCREW M 6X12 WS=8 | 2 | $2.12 | Obsolete | View Details |
| 54 | 58307021000 BRACKET FOR HORN '93 | BRACKET FOR HORN '93 | 1 | $14.96 | Obsolete | View Details |
| 55 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 1 | $1.14 | Obsolete | View Details |
| 56 | 50210086000 Plug SFL16 | Plug SFL16 | 1 | $3.99 | Available | 1 |
| 57 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 58 | 44011276200 * CABLE TIE 200 X 5MM T50 R/SF | * CABLE TIE 200 X 5MM T50 R/SF | 1 | — | Check availability | |
| 59 | 50211096000 CLAMP FOR WIRING HARNESS | CLAMP FOR WIRING HARNESS | 1 | — | Check availability | |
| 60 | 44011076180 * CABLE TIE 180MM | * CABLE TIE 180MM | 0 | — | Check availability |
