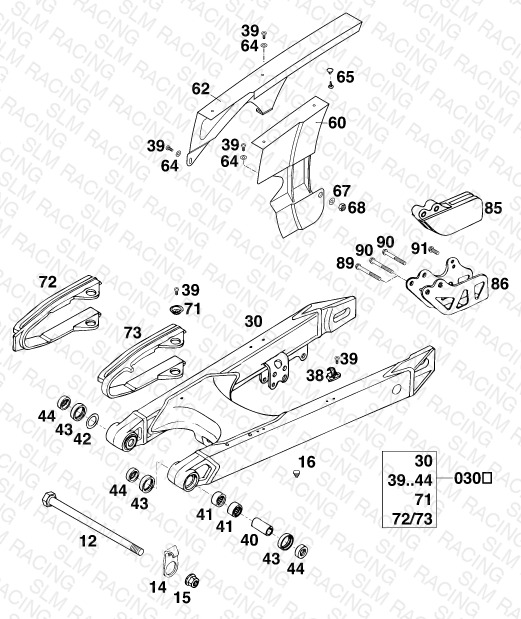

SWING ARM
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 12 | 54603014000 | 1 | — | Check availability | ||
| 14 | 50230211000 BRAKE HOSE GUIDE '89 | BRAKE HOSE GUIDE '89 | 1 | $4.79 | Obsolete | View Details |
| 15 | 54603015000 Self locking nut M14x1.5 WS19 | Self locking nut M14x1.5 WS19 | 1 | $6.48 | Available | 1 |
| 16 | 54403135000 PLASTIC CAP SFL10 | PLASTIC CAP SFL10 | 2 | $2.99 | Available | 2 |
| 30 | 58303030100 % SWINGARM LOOSE 570MM "4" '94 | % SWINGARM LOOSE 570MM "4" '94 | 1 | — | Check availability | |
| 30 | 58303030144 SWINGARM CPL. 570MM ''4'' '94 | SWINGARM CPL. 570MM ''4'' '94 | 1 | $655.70 | Special Order | 1 |
| 30 | 58303130200 * SWINGARM LOOSE 570MM "4A" '9 | * SWINGARM LOOSE 570MM "4A" '9 | 1 | — | Check availability | |
| 30 | 58303130244 | 1 | — | Check availability | ||
| 38 | 54611076000 RETAINING CLAMP FOR BRAKE HOSE | RETAINING CLAMP FOR BRAKE HOSE | 0 | $2.99 | Obsolete | View Details |
| 38 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE'96 | RETAIN.CLAMP FOR BRAKE HOSE'96 | 2 | $2.99 | Available | 2 |
| 39 | 0010050103 SPECIAL SCREW M 5,0X10 | SPECIAL SCREW M 5,0X10 | 7 | $2.99 | Available | 7 |
| 40 | 50203081700 BUSHING SLEEVE 15X20X38,75 | BUSHING SLEEVE 15X20X38,75 | 2 | $20.23 | Available | 2 |
| 41 | 50203097000 NEEDLE BUSH HK 2012 | NEEDLE BUSH HK 2012 | 4 | $18.25 | Available | 4 |
| 42 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $2.09 | Obsolete | View Details |
| 43 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | $7.80 | Available | 4 |
| 44 | 54603090000 BUCKET F.SHAFTSEALRING 15X25X9 | BUCKET F.SHAFTSEALRING 15X25X9 | 4 | $14.62 | Available | 4 |
| 60 | 58307060000 CHAINGUARD SMALL '96 | CHAINGUARD SMALL '96 | 1 | $28.26 | Obsolete | View Details |
| 62 | 58307060050 CHAINGUARD BIG '96 | CHAINGUARD BIG '96 | 1 | — | Check availability | |
| 64 | 0125050003 WASHER DIN0125-A 5,3 | WASHER DIN0125-A 5,3 | 3 | $1.99 | Available | 3 |
| 65 | 20012062055 HOLLOW RIVET TWO PARTS | HOLLOW RIVET TWO PARTS | 2 | $3.99 | Available | 2 |
| 67 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 68 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 71 | 72210079000 BUCKET | BUCKET | 2 | $3.62 | Obsolete | View Details |
| 72 | 50207073000 * CHAIN SLIDING GUARD '92 | * CHAIN SLIDING GUARD '92 | 1 | — | Check availability | |
| 73 | 58307073100 CHAIN SLIDING COMPONENT '96 | CHAIN SLIDING COMPONENT '96 | 1 | $29.06 | Obsolete | View Details |
| 85 | 54607066100 CHAIN GUIDE REAR '94 | CHAIN GUIDE REAR '94 | 1 | $33.65 | Available | 1 |
| 86 | 50207070000 RETAINING PLATE CHAIN GUIDE' | RETAINING PLATE CHAIN GUIDE' | 1 | — | Check availability | |
| 89 | 0015060553 HH COLLAR SCREW M 6X55 WS=8 | HH COLLAR SCREW M 6X55 WS=8 | 1 | $1.19 | Obsolete | View Details |
| 90 | 0015060503 HH COLLAR SCREW M 6X50 WS=8 | HH COLLAR SCREW M 6X50 WS=8 | 1 | $1.25 | Obsolete | View Details |
| 91 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 1 | $1.12 | Obsolete | View Details |
