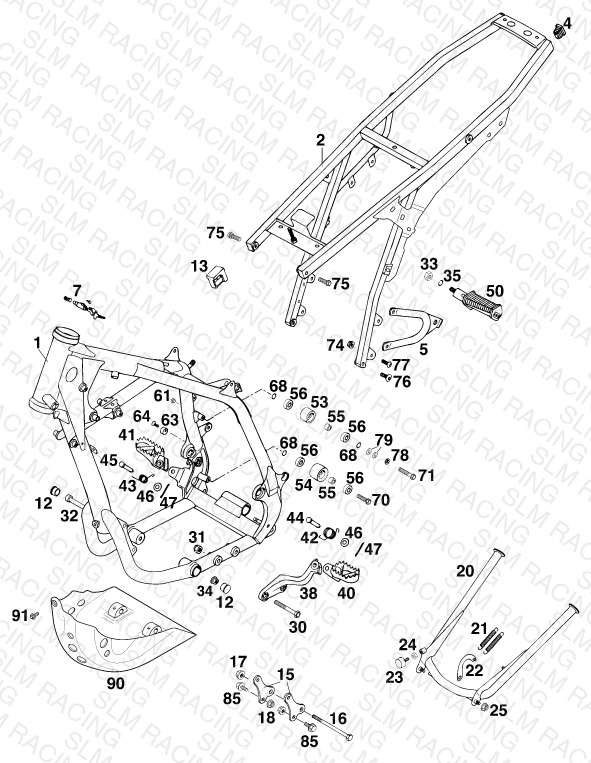

FRAME
Parts (54)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 0 | 58303103000 *FOOT REST BRACKET REAR R/S 93 | *FOOT REST BRACKET REAR R/S 93 | 0 | — | Check availability | |
| 1 | 58303001500 FRAME SC, RXC '96 | FRAME SC, RXC '96 | 1 | — | Check availability | |
| 2 | 58303002400 * SUB FRAME CPL.STEEL '96 | * SUB FRAME CPL.STEEL '96 | 1 | — | Check availability | |
| 4 | 58303002090 PLUG 12 X 17 MM | PLUG 12 X 17 MM | 2 | — | Check availability | View Details |
| 5 | 58303003000 FOOTREST BRACKET REAR L/S | FOOTREST BRACKET REAR L/S | 0 | — | Check availability | View Details |
| 7 | 44003007000 STEERING HEAD LOCK | STEERING HEAD LOCK | 1 | — | Check availability | |
| 12 | 71001012000 PVC CAP D=22MM | PVC CAP D=22MM | 2 | — | Check availability | View Details |
| 13 | 58307015000 TANK SUPPORT '93 | TANK SUPPORT '93 | 2 | — | Check availability | View Details |
| 15 | 58303055000 ENGINE SUPPORT AGW '94 | ENGINE SUPPORT AGW '94 | 2 | — | Check availability | View Details |
| 16 | 0931101103 HH SCREW DIN0931-M10X110 | HH SCREW DIN0931-M10X110 | 1 | — | Check availability | |
| 17 | 49009082000 flanged hex nut DIN 6927 M10 W | flanged hex nut DIN 6927 M10 W | 1 | — | Check availability | |
| 18 | 54310086000 | 4 | — | Check availability | ||
| 20 | 58303022000 CENTER STAND LONG 408MM '93 | CENTER STAND LONG 408MM '93 | 1 | — | Check availability | View Details |
| 21 | 10003021000 STAND SPRING SHORT | STAND SPRING SHORT | 2 | — | Check availability | |
| 22 | 58303027000 SPRINGBOW '93 | SPRINGBOW '93 | 1 | — | Check availability | View Details |
| 23 | 58303070000 STOP RUBBER M8 | STOP RUBBER M8 | 1 | — | Check availability | View Details |
| 24 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 1 | — | Check availability | |
| 25 | 54310086000 | 1 | — | Check availability | ||
| 30 | 0931100603 HH SCREW DIN0931-M10X60 | HH SCREW DIN0931-M10X60 | 2 | — | Check availability | |
| 31 | 0985100003 SELF LOCKING NUT DIN0985-M10 | SELF LOCKING NUT DIN0985-M10 | 2 | — | Check availability | |
| 32 | 0912101603 AH SCREW DIN0912-M10X160 | AH SCREW DIN0912-M10X160 | 1 | — | Check availability | |
| 33 | 0934100003 HEXAGON NUT DIN0934-M10 | HEXAGON NUT DIN0934-M10 | 0 | — | Check availability | View Details |
| 34 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | — | Check availability | View Details |
| 35 | 0127100003 SPRING RING DIN0127-B10 | SPRING RING DIN0127-B10 | 0 | — | Check availability | |
| 38 | 58303038000 FOOTREST BRACKET L/S '93 | FOOTREST BRACKET L/S '93 | 1 | — | Check availability | View Details |
| 40 | 58303040000 FOOTREST L/S ' | FOOTREST L/S ' | 1 | — | Check availability | View Details |
| 41 | 5460314000019 FOOTREST R/S '93 | FOOTREST R/S '93 | 1 | — | Check availability | |
| 42 | 58303041000 FOOTREST SPRING L/S '93 | FOOTREST SPRING L/S '93 | 1 | — | Check availability | View Details |
| 43 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 1 | — | Check availability | |
| 44 | 58303044000 BOLT FOR FOOTREST | BOLT FOR FOOTREST | 1 | — | Check availability | View Details |
| 45 | 54603044000 BOLT FOR FOOTREST 9,8 X 50 | BOLT FOR FOOTREST 9,8 X 50 | 1 | — | Check availability | View Details |
| 46 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | — | Check availability | |
| 47 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | — | Check availability | View Details |
| 50 | 49003250000 FOOTREST REAR L/S CPL. | FOOTREST REAR L/S CPL. | 0 | — | Check availability | View Details |
| 50 | 49003350000 FOOTREST REAR R/S CPL. | FOOTREST REAR R/S CPL. | 0 | — | Check availability | |
| 53 | 50203053000 CHAIN ROLL D=30MM | CHAIN ROLL D=30MM | 1 | — | Check availability | |
| 54 | 50203053100 CHAIN ROLL D=35MM | CHAIN ROLL D=35MM | 1 | — | Check availability | |
| 55 | 74003021000 BUSHING 8.2 X 12 X 6 | BUSHING 8.2 X 12 X 6 | 2 | — | Check availability | |
| 56 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | — | Check availability | |
| 61 | 54403135000 PLASTIC CAP SFL10 | PLASTIC CAP SFL10 | 1 | — | Check availability | |
| 63 | 58303063000 BRAKE LEVER STOP '93 | BRAKE LEVER STOP '93 | 1 | — | Check availability | |
| 64 | 0991060203 FLAT H.SCREW DIN7991-M6X20 | FLAT H.SCREW DIN7991-M6X20 | 1 | — | Check availability | View Details |
| 68 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 0 | — | Check availability | |
| 70 | 0015080303 HH COLLAR SCREW M 8X30 WS=10 | HH COLLAR SCREW M 8X30 WS=10 | 1 | — | Check availability | View Details |
| 71 | 0015080353 HH COLLAR SCREW M 8X35 WS=10 | HH COLLAR SCREW M 8X35 WS=10 | 1 | — | Check availability | View Details |
| 74 | 54310086000 | 0 | — | Check availability | ||
| 75 | 0015080253 HH COLLAR SCREW M 8X25 WS=10 | HH COLLAR SCREW M 8X25 WS=10 | 2 | — | Check availability | View Details |
| 76 | 54510052000 SPROCKET SCREW-AH M 8X26 | SPROCKET SCREW-AH M 8X26 | 2 | — | Check availability | |
| 77 | 0107080203 AH OVAL H.SCREW DIN0170-M 8X20 | AH OVAL H.SCREW DIN0170-M 8X20 | 0 | — | Check availability | |
| 78 | 0797080003 TOOTHLOCK WASHER DIN6797-J 8,4 | TOOTHLOCK WASHER DIN6797-J 8,4 | 0 | — | Check availability | |
| 79 | 0125080003 washer DIN 125 A -8.4 | washer DIN 125 A -8.4 | 0 | — | Check availability | |
| 85 | 49109481052 HH COLLAR SCREW M 8X16 WS=13 | HH COLLAR SCREW M 8X16 WS=13 | 2 | — | Check availability | |
| 90 | 58303005044 % ENGINE PROTECTOR CPL. 4STR.' | % ENGINE PROTECTOR CPL. 4STR.' | 1 | — | Check availability | |
| 91 | 0014060133 HH COLLAR SCREW M 6X13 WS=8 | HH COLLAR SCREW M 6X13 WS=8 | 1 | — | Check availability | View Details |
