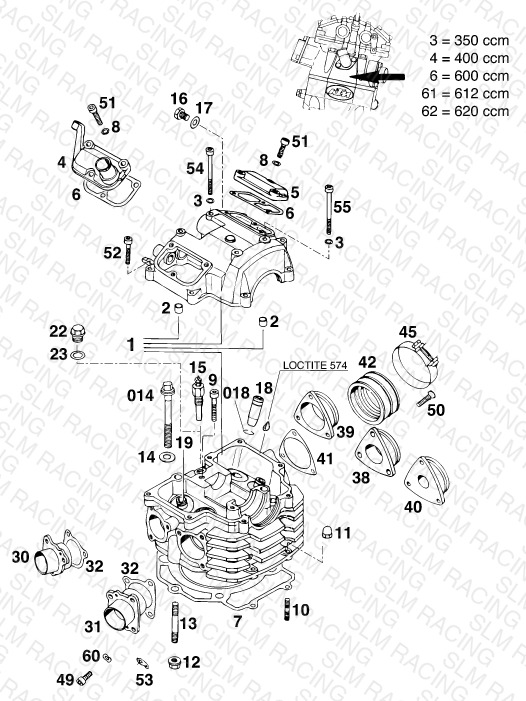

CYLINDER HEAD
Parts (53)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 57536020000 * CYLINDER HEAD CPL. 350 LC4'9 | * CYLINDER HEAD CPL. 350 LC4'9 | 1 | — | Check availability | |
| 1 | 57636020000 * CYLINDER HEAD CPL. 400 LC4'9 | * CYLINDER HEAD CPL. 400 LC4'9 | 1 | — | Check availability | |
| 1 | 58336020000 CYLINDER HEAD CPL. 620 LC4'94 | CYLINDER HEAD CPL. 620 LC4'94 | 1 | — | Check availability | View Details |
| 2 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | — | Check availability | View Details |
| 4 | 58036152500 VALVE COVER FRONT | VALVE COVER FRONT | 1 | — | Check availability | |
| 5 | 58036052000 VALVE COVER REAR | VALVE COVER REAR | 1 | — | Check availability | View Details |
| 6 | 58036053000 VALVE COVER GASKET | VALVE COVER GASKET | 2 | — | Check availability | |
| 7 | 57530036000 CYLINDER HEAD GASKET 90,3 MM | CYLINDER HEAD GASKET 90,3 MM | 1 | — | Check availability | |
| 7 | 58030136200 CYL.HEAD GASKET 95,3 MM | CYL.HEAD GASKET 95,3 MM | 1 | — | Check availability | View Details |
| 7 | 58330036000 CYLINDER HEAD GASKET 101,3 MM | CYLINDER HEAD GASKET 101,3 MM | 1 | — | Check availability | |
| 8 | 58036065000 CU-SEAL RING 6 X 10 X 1 | CU-SEAL RING 6 X 10 X 1 | 10 | — | Check availability | |
| 9 | 0912060353 AH SCREW DIN0912-M 6X35 | AH SCREW DIN0912-M 6X35 | 1 | — | Check availability | |
| 10 | 0551060253 THREAD PIN DIN0551-M 6X25 | THREAD PIN DIN0551-M 6X25 | 2 | — | Check availability | |
| 10 | 0551060303 THREAD PIN DIN0551-M 6X30 | THREAD PIN DIN0551-M 6X30 | 2 | — | Check availability | |
| 11 | 0587060003 HH CAP NUT DIN1587-M 6 | HH CAP NUT DIN1587-M 6 | 2 | — | Check availability | View Details |
| 12 | 49030028000 COLLAR NUT M8 | COLLAR NUT M8 | 2 | — | Check availability | |
| 13 | 54330043000 STUD DIN0835-M 8X40 | STUD DIN0835-M 8X40 | 2 | — | Check availability | View Details |
| 13 | 54330043100 STUD DIN0835-M 8X35 | STUD DIN0835-M 8X35 | 2 | — | Check availability | |
| 14 | 58036098000 CU-SEAL RING 10 X 20 X 1 | CU-SEAL RING 10 X 20 X 1 | 4 | — | Check availability | |
| 14 | 58036099100 COLLAR SCREW M10X80 WS=13 10.9 | COLLAR SCREW M10X80 WS=13 10.9 | 4 | — | Check availability | |
| 15 | 42011252000 TEMPERATURE SWITCH VDO | TEMPERATURE SWITCH VDO | 1 | — | Check availability | View Details |
| 16 | 0933080123 | 1 | — | Check availability | ||
| 17 | 58038032000 CU-SEAL RING DIN7603- 8X12X1 | CU-SEAL RING DIN7603- 8X12X1 | 1 | — | Check availability | |
| 18 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 4 | — | Check availability | |
| 18 | 58036026600 VALVE GUIDE INTAKE | VALVE GUIDE INTAKE | 2 | — | Check availability | |
| 19 | 58036126600 VALVE GUIDE EXHAUST | VALVE GUIDE EXHAUST | 2 | — | Check availability | |
| 20 | 56535006000 CONNECTING ANGLE | CONNECTING ANGLE | 1 | — | Check availability | View Details |
| 21 | 56535106000 GASKET FOR CONNECTING ANGLE | GASKET FOR CONNECTING ANGLE | 1 | — | Check availability | |
| 22 | 54630021000 HH PLUG M10X1 WS13 | HH PLUG M10X1 WS13 | 1 | — | Check availability | |
| 23 | 58038032010 CU-SEAL RING DIN7603-10X14X1 | CU-SEAL RING DIN7603-10X14X1 | 1 | — | Check availability | |
| 25 | 0933080103 HH SCREW DIN0933-M 8X10 | HH SCREW DIN0933-M 8X10 | 1 | — | Check availability | |
| 26 | 58038032000 CU-SEAL RING DIN7603- 8X12X1 | CU-SEAL RING DIN7603- 8X12X1 | 1 | — | Check availability | |
| 30 | 58036040000 EXHAUST FLANGE R/S | EXHAUST FLANGE R/S | 1 | — | Check availability | |
| 31 | 58036140000 EXHAUST FLANGE L/S | EXHAUST FLANGE L/S | 1 | — | Check availability | |
| 32 | 58036041000 EXHAUST FLANGE GASKET | EXHAUST FLANGE GASKET | 2 | — | Check availability | |
| 38 | 58136142026 INTAKE FLANGE D=26MM | INTAKE FLANGE D=26MM | 1 | — | Check availability | |
| 38 | 58136142028 INTAKE FLANGE D=28MM | INTAKE FLANGE D=28MM | 1 | — | Check availability | |
| 39 | 57536042000 | 1 | — | Check availability | ||
| 39 | 58136042000 INTAKE FLANGE D=38MM | INTAKE FLANGE D=38MM | 1 | — | Check availability | |
| 40 | 58136142023 | 1 | — | Check availability | ||
| 41 | 58136043000 INTAKE FLANGE GASKET | INTAKE FLANGE GASKET | 1 | — | Check availability | |
| 42 | 57536044000 INTAKE BOOT D=37MM 350 LC4 | INTAKE BOOT D=37MM 350 LC4 | 1 | — | Check availability | View Details |
| 42 | 58136044100 INTAKE BOOT D=38MM 400-660 LC4 | INTAKE BOOT D=38MM 400-660 LC4 | 1 | — | Check availability | |
| 45 | 56530061000 CLAMP SM12/A60 | CLAMP SM12/A60 | 2 | — | Check availability | View Details |
| 49 | 0912060163 AH SCREW DIN0912-M 6X16 | AH SCREW DIN0912-M 6X16 | 8 | — | Check availability | |
| 50 | 0991060163 FLAT HEAD SCR. DIN7991-M 6X16 | FLAT HEAD SCR. DIN7991-M 6X16 | 3 | — | Check availability | |
| 51 | 0912060203 AH SCREW DIN0912-M 6X20 | AH SCREW DIN0912-M 6X20 | 6 | — | Check availability | |
| 52 | 0912060253 AH SCREW DIN0912-M 6X25 | AH SCREW DIN0912-M 6X25 | 6 | — | Check availability | |
| 52 | 0912060353 AH SCREW DIN0912-M 6X35 | AH SCREW DIN0912-M 6X35 | 1 | — | Check availability | |
| 53 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | — | Check availability | |
| 54 | 0912060603 AH SCREW DIN0921-M 6X60 | AH SCREW DIN0921-M 6X60 | 2 | — | Check availability | View Details |
| 55 | 0912060703 AH SCREW DIN0912-M 6X70 | AH SCREW DIN0912-M 6X70 | 2 | — | Check availability | |
| 60 | 0137060000 SPRING WASHER DIN0137-B 6 | SPRING WASHER DIN0137-B 6 | 6 | — | Check availability |
