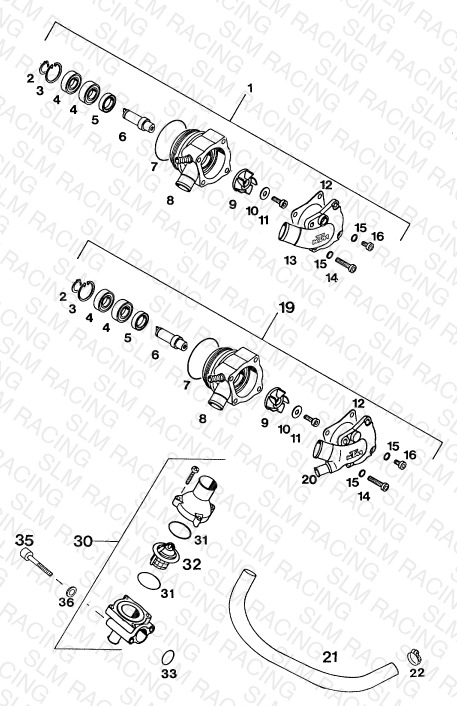

WATER PUMP
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58035050644 WATER PUMP CPL.(MECHANIC)'92 | WATER PUMP CPL.(MECHANIC)'92 | 1 | — | Obsolete | View Details |
| 2 | 0471120010 retaining ring DIN 471 12x1 | retaining ring DIN 471 12x1 | 1 | $1.99 | Available | 1 |
| 3 | 0472280120 CIRCLIP DIN0472-28X1,2 | CIRCLIP DIN0472-28X1,2 | 1 | $2.99 | Available | 1 |
| 4 | 0625060016 deep groove ball bearing 6001. | deep groove ball bearing 6001. | 4 | $22.21 | Available | 4 |
| 5 | 0760152472 SHAFT SEAL RING 15X24X7 A-DUO | SHAFT SEAL RING 15X24X7 A-DUO | 1 | $17.70 | Available | 1 |
| 6 | 54435010000 WATER PUMP SHAFT | WATER PUMP SHAFT | 1 | — | Obsolete | View Details |
| 7 | 0770047015 O-RING 47,00X1,50 NBR 70 | O-RING 47,00X1,50 NBR 70 | 1 | $1.99 | Available | 1 |
| 8 | 58035002600 % WATER PUMP HOUSING '92 | % WATER PUMP HOUSING '92 | 1 | — | Obsolete | View Details |
| 9 | 56535005300 WATER PUMP WHEEL | WATER PUMP WHEEL | 1 | $9.45 | Available | 1 |
| 10 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 2 | $1.99 | Available | 2 |
| 11 | 0912050123 AH SCREW DIN0912-M 5X12 | AH SCREW DIN0912-M 5X12 | 1 | $2.99 | Available | 1 |
| 12 | 56535003300 WATER PUMP COVER GASKET | WATER PUMP COVER GASKET | 1 | $2.99 | Available | 1 |
| 13 | 56535001300 WATERPUMP COVER | WATERPUMP COVER | 1 | — | Obsolete | View Details |
| 14 | 0984060203 AH SCREW DIN6912-M 6X20 8.8 | AH SCREW DIN6912-M 6X20 8.8 | 4 | $2.99 | Available | 4 |
| 15 | 58036065000 CU-SEAL RING 6 X 10 X 1 | CU-SEAL RING 6 X 10 X 1 | 6 | — | Obsolete | View Details |
| 16 | 0912060103 AH SCREW DIN0912-M 6X10 | AH SCREW DIN0912-M 6X10 | 1 | $1.99 | Available | 1 |
| 19 | 58335050044 WATER PUMP MECHANIC CPL.'94 | WATER PUMP MECHANIC CPL.'94 | 1 | — | Obsolete | View Details |
| 20 | 58335001000 | 1 | — | Obsolete | View Details | |
| 21 | 58335025350 RADIATOR HOSE 12X3 04 | RADIATOR HOSE 12X3 04 | 1 | — | Obsolete | View Details |
| 22 | 58335099000 HOSE CLAMP GEMI 10-16 | HOSE CLAMP GEMI 10-16 | 2 | $4.99 | Available | 2 |
| 30 | 58335013044 THERMOSTAT CPL. 70 DG LC4'94 | THERMOSTAT CPL. 70 DG LC4'94 | 1 | $120.22 | Available | 1 |
| 31 | 0770320020 O-RING 32,00X2,00 | O-RING 32,00X2,00 | 2 | $2.99 | Available | 2 |
| 32 | 58335017000 THERMOSTAT 70 DEGREES '94 | THERMOSTAT 70 DEGREES '94 | 1 | — | Obsolete | View Details |
| 33 | 0770021020 O-RING 21,00X2,00 NBR70 | O-RING 21,00X2,00 NBR70 | 2 | $2.99 | Available | 2 |
| 35 | 0912060453 AH SCREW DIN0912-M 6X45 | AH SCREW DIN0912-M 6X45 | 4 | $2.99 | Available | 4 |
| 36 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
