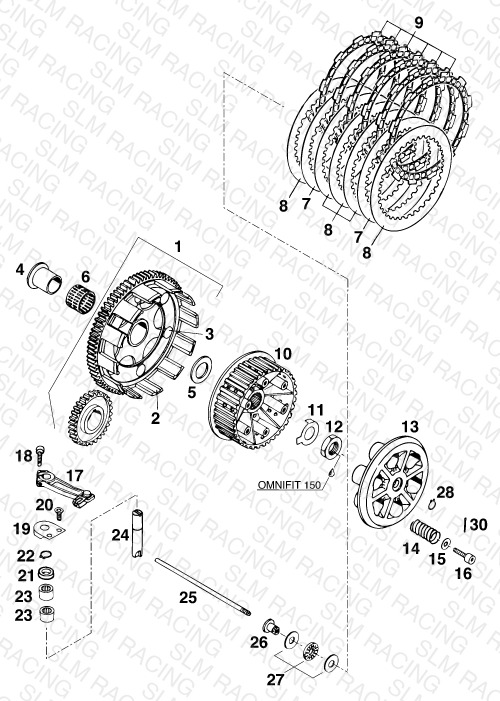

CLUTCH
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58032101144 OUTER CLUTCH HUB 81/22T | OUTER CLUTCH HUB 81/22T | 1 | — | Check availability | |
| 2 | 58032001000 OUTER CL.HUB D=150MM ''C'' 4-S | OUTER CL.HUB D=150MM ''C'' 4-S | 1 | — | Check availability | |
| 3 | 58032007000 RIVET DIN 7338 8x11,2 | RIVET DIN 7338 8x11,2 | 6 | $2.59 | Obsolete | View Details |
| 4 | 50332070000 INNER RING WITH COLLAR | INNER RING WITH COLLAR | 1 | $57.96 | Available | 1 |
| 5 | 57532013000 SUPPORTWASHER 22,2X35X3 HARDE. | SUPPORTWASHER 22,2X35X3 HARDE. | 1 | $22.56 | Obsolete | View Details |
| 6 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Out of Stock | Notify Me |
| 7 | 58032112000 STEEL DISK 4-STR. 1,4 MM | STEEL DISK 4-STR. 1,4 MM | 2 | $34.32 | Obsolete | View Details |
| 8 | 58032012500 STEEL DISK 2MM 4-STR. | STEEL DISK 2MM 4-STR. | 5 | $42.83 | Obsolete | View Details |
| 9 | 58032011100 * ORGANIC DISK 3MM | * ORGANIC DISK 3MM | 6 | — | Check availability | |
| 10 | 56532002100 INNER CLUTCH HUB''1'' 440/500 | INNER CLUTCH HUB''1'' 440/500 | 1 | $125.77 | Obsolete | View Details |
| 10 | 56532002500 INNER CLUTCH HUB"5" LC4 '90 | INNER CLUTCH HUB"5" LC4 '90 | 1 | — | Check availability | |
| 11 | 56532018000 LOCK WASHER | LOCK WASHER | 1 | $7.36 | Available | 1 |
| 12 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | $9.12 | Available | 1 |
| 13 | 56532003100 PRESSURE CAP | PRESSURE CAP | 1 | $84.39 | Obsolete | View Details |
| 14 | 50232002000 CLUTCH PRESSURE SPRING 2,6X38 | CLUTCH PRESSURE SPRING 2,6X38 | 6 | $6.37 | Obsolete | View Details |
| 14 | 54332001000 % CLUTCH PRESSURE SPRING 2,5X3 | % CLUTCH PRESSURE SPRING 2,5X3 | 6 | — | Check availability | |
| 14 | 54432001100 CLUTCH PRESSURE SPRING 2,7X38 | CLUTCH PRESSURE SPRING 2,7X38 | 6 | $5.29 | Obsolete | View Details |
| 15 | 50232050000 WASHER 6,2X18X2 | WASHER 6,2X18X2 | 6 | $6.15 | Available | 6 |
| 16 | 0912060203 AH SCREW DIN0912-M 6X20 | AH SCREW DIN0912-M 6X20 | 6 | $2.99 | Available | 6 |
| 17 | 58032014000 CLUTCH RELEASE LEVER 4-STROKE | CLUTCH RELEASE LEVER 4-STROKE | 1 | — | Check availability | |
| 18 | 0912060203 AH SCREW DIN0912-M 6X20 | AH SCREW DIN0912-M 6X20 | 1 | $2.99 | Available | 1 |
| 19 | 54532013000 RETAINING PLATE FOR RELEASING | RETAINING PLATE FOR RELEASING | 1 | $5.75 | Obsolete | View Details |
| 20 | 0991060122 FLAT HEAD SCREW DIN7991-M 6X | FLAT HEAD SCREW DIN7991-M 6X | 2 | — | Check availability | |
| 21 | 54532093000 NUT RING NIS 12X20X5,5 | NUT RING NIS 12X20X5,5 | 1 | $2.97 | Obsolete | View Details |
| 22 | 0471120010 retaining ring DIN 471 12x1 | retaining ring DIN 471 12x1 | 1 | $1.99 | Available | 1 |
| 23 | 50332095000 NEEDLE BEARING HK 1212 | NEEDLE BEARING HK 1212 | 2 | $8.56 | Obsolete | View Details |
| 24 | 57532015000 DISENGAGING SHAFT 12 X 66 '93 | DISENGAGING SHAFT 12 X 66 '93 | 1 | $40.69 | Obsolete | View Details |
| 25 | 57532017000 * PUSH ROD 206MM LC4 '93 | * PUSH ROD 206MM LC4 '93 | 1 | — | Check availability | |
| 26 | 56532032300 PRESSURE BOLT | PRESSURE BOLT | 1 | $12.08 | Obsolete | View Details |
| 27 | 54332030000 *AXIAL NEEDLE BEARING AXK 1024 | *AXIAL NEEDLE BEARING AXK 1024 | 1 | — | Check availability | |
| 28 | 0471100010 CIRCLIP DIN0471-10X1 | CIRCLIP DIN0471-10X1 | 1 | $2.99 | Available | 1 |
| 30 | 0094150223 PIN DIN94 1,5x22 | PIN DIN94 1,5x22 | 1 | $1.04 | Obsolete | View Details |
| 40 | 58032012500 STEEL DISK 2MM 4-STR. | STEEL DISK 2MM 4-STR. | 2 | $42.83 | Obsolete | View Details |
| 41 | 58032012000 * STEEL DISK 1MM 4-STR. | * STEEL DISK 1MM 4-STR. | 8 | — | Check availability | |
| 42 | 56532011500 LINING DISK SINTER 2MM 550 '96 | LINING DISK SINTER 2MM 550 '96 | 9 | $40.73 | Out of Stock | Notify Me |
