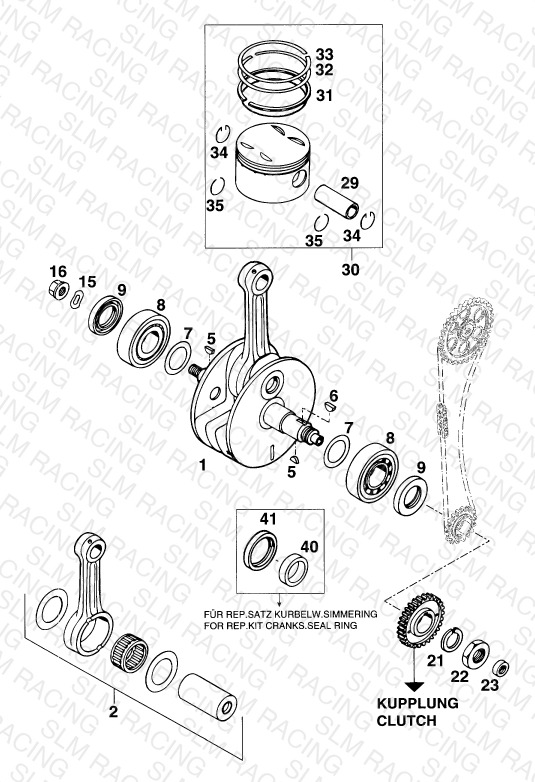

CRANKSHAFT, PISTON
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 57530018000 * CRANKSHAFT CPL.STROKE 56,2MM | * CRANKSHAFT CPL.STROKE 56,2MM | 1 | — | Check availability | |
| 1 | 58330018000 CRANKSHAFT CPL. 540/620 LC4' | CRANKSHAFT CPL. 540/620 LC4' | 1 | — | Check availability | |
| 2 | 58030015044 CONNECTING ROD REPAIR SET LC4 | CONNECTING ROD REPAIR SET LC4 | 1 | $501.05 | Obsolete | View Details |
| 2 | 58330015044 CONNECTING ROD REPAIR SET LC | CONNECTING ROD REPAIR SET LC | 1 | $416.07 | Obsolete | View Details |
| 5 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 2 | $2.99 | Available | 2 |
| 6 | 0888050650 WOODRUFF KEY DIN6888-5X6,5 | WOODRUFF KEY DIN6888-5X6,5 | 1 | — | Check availability | |
| 7 | 56030081000 THRUST WASHER 30,5X45X0,10 | THRUST WASHER 30,5X45X0,10 | 0 | $1.99 | Available | 1 |
| 7 | 56030081100 THRUST WASHER 30,7X47X0,15 | THRUST WASHER 30,7X47X0,15 | 0 | $2.99 | Available | 1 |
| 7 | 56030081200 THRUST WASHER 30,5X45X0,30 | THRUST WASHER 30,5X45X0,30 | 0 | $2.99 | Available | 1 |
| 8 | 58030082000 CYL.ROLLER BEARING NJ 306 C3 | CYL.ROLLER BEARING NJ 306 C3 | 2 | $135.62 | Available | 2 |
| 9 | 0760305272 SHAFT SEAL RING 30x52x7BTSL | SHAFT SEAL RING 30x52x7BTSL | 2 | — | Check availability | |
| 15 | 0137120000 SPRING WASHER DIN0137-B12 | SPRING WASHER DIN0137-B12 | 1 | $1.99 | Available | 1 |
| 16 | 51030028100 COLLAR NUT M12X1 LEFT WS=17 | COLLAR NUT M12X1 LEFT WS=17 | 1 | $13.41 | Available | 1 |
| 21 | 58030019000 LOCKING RING VSK 20 | LOCKING RING VSK 20 | 1 | $2.09 | Special Order | 1 |
| 22 | 0936200155 HEXAGON NUT DIN0936-M20X1,5 | HEXAGON NUT DIN0936-M20X1,5 | 1 | $7.86 | Obsolete | View Details |
| 23 | 0760122270 SHAFT SEAL RING 12 X 22 X 7 B | SHAFT SEAL RING 12 X 22 X 7 B | 1 | $18.58 | Available | 1 |
| 29 | 58030033000 PISTON PIN 22 X 13 X 54,2 | PISTON PIN 22 X 13 X 54,2 | 1 | $55.65 | Obsolete | View Details |
| 29 | 58330833000 PISTON PIN 22 X 13 X 60 | PISTON PIN 22 X 13 X 60 | 1 | $54.44 | Available | 1 |
| 31 | 57530031000 OIL SCRAPER RING 89MM | OIL SCRAPER RING 89MM | 1 | $23.31 | Obsolete | View Details |
| 31 | 58030631000 OIL SCRAPER RING 95MM | OIL SCRAPER RING 95MM | 1 | $29.91 | Obsolete | View Details |
| 31 | 58330831000 OIL SCRAPER RING 101MM 620 LC4 | OIL SCRAPER RING 101MM 620 LC4 | 1 | $35.99 | Obsolete | View Details |
| 32 | 57530132000 TAPERED COMPR.PISTON RING 89MM | TAPERED COMPR.PISTON RING 89MM | 1 | $17.59 | Obsolete | View Details |
| 32 | 58030732000 TAPERED COMPR.PISTON RING 95MM | TAPERED COMPR.PISTON RING 95MM | 1 | $22.89 | Obsolete | View Details |
| 32 | 58330932000 TAPERED PISTON RING 101x1,25 | TAPERED PISTON RING 101x1,25 | 1 | — | Check availability | |
| 33 | 57530032000 RECTANGULAR RING 89MM | RECTANGULAR RING 89MM | 1 | $54.11 | Available | 1 |
| 33 | 58030632000 RECTANGULAR RING 95MM | RECTANGULAR RING 95MM | 1 | $55.69 | Obsolete | View Details |
| 33 | 58330832000 RECTANGULAR RING 101x1,25 | RECTANGULAR RING 101x1,25 | 1 | $45.69 | Obsolete | View Details |
| 34 | 58030074000 CIRCLIP A 22 X 1,5 | CIRCLIP A 22 X 1,5 | 0 | — | Check availability | |
| 35 | 58030074100 CIRCLIP C 22 X 1,5 | CIRCLIP C 22 X 1,5 | 2 | $2.15 | Obsolete | View Details |
| 40 | 58030018090 CRANKSHAFT REP.RING 30x38x9,5 | CRANKSHAFT REP.RING 30x38x9,5 | 0 | $34.95 | Obsolete | View Details |
| 41 | 0760385273 SHAFT SEAL RING 38X52X7BTSL | SHAFT SEAL RING 38X52X7BTSL | 0 | $25.95 | Available | 1 |
