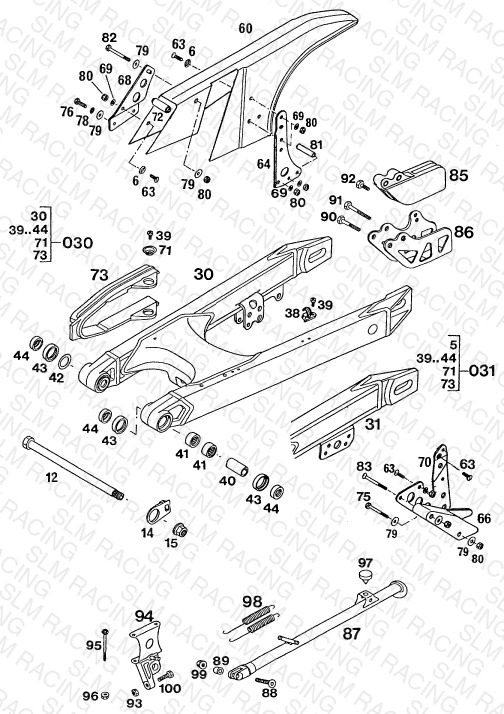

SWING ARM
Parts (51)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 6 | 40006006000 WASHER 6MM | WASHER 6MM | 0 | — | Check availability | |
| 12 | 54603014000 | 1 | — | Check availability | ||
| 14 | 50230211000 BRAKE HOSE GUIDE '89 | BRAKE HOSE GUIDE '89 | 1 | — | Check availability | View Details |
| 15 | 54603015000 Self locking nut M14x1.5 WS19 | Self locking nut M14x1.5 WS19 | 1 | — | Check availability | |
| 30 | 58303030100 % SWINGARM LOOSE 570MM "4" '94 | % SWINGARM LOOSE 570MM "4" '94 | 1 | — | Check availability | |
| 30 | 58303030144 SWINGARM CPL. 570MM ''4'' '94 | SWINGARM CPL. 570MM ''4'' '94 | 1 | — | Check availability | |
| 31 | 58303030000 * SWINGARM LOOSE 570MM 4STR. ' | * SWINGARM LOOSE 570MM 4STR. ' | 0 | — | Check availability | |
| 31 | 58303030044 * SWINGARM CPL. 570MM '93 | * SWINGARM CPL. 570MM '93 | 0 | — | Check availability | |
| 38 | 54611076000 RETAINING CLAMP FOR BRAKE HOSE | RETAINING CLAMP FOR BRAKE HOSE | 2 | — | Check availability | |
| 39 | 0010050103 SPECIAL SCREW M 5,0X10 | SPECIAL SCREW M 5,0X10 | 4 | — | Check availability | |
| 40 | 50203081700 BUSHING SLEEVE 15X20X38,75 | BUSHING SLEEVE 15X20X38,75 | 2 | — | Check availability | |
| 41 | 50203097000 NEEDLE BUSH HK 2012 | NEEDLE BUSH HK 2012 | 4 | — | Check availability | |
| 42 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | — | Check availability | View Details |
| 43 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | — | Check availability | |
| 44 | 54603090000 BUCKET F.SHAFTSEALRING 15X25X9 | BUCKET F.SHAFTSEALRING 15X25X9 | 4 | — | Check availability | |
| 60 | 50207060000 CHAIN GUARD '87 | CHAIN GUARD '87 | 1 | — | Check availability | View Details |
| 63 | 0963060163 FLAT HD SCREW DIN963 M6x16 | FLAT HD SCREW DIN963 M6x16 | 0 | — | Check availability | |
| 64 | 54407064000 RETAINING PLATE FOR CHAINGUARD | RETAINING PLATE FOR CHAINGUARD | 1 | — | Check availability | |
| 66 | 56507066000 REAR CHAIN GUIDE BLACK '93 | REAR CHAIN GUIDE BLACK '93 | 0 | — | Check availability | View Details |
| 68 | 50207068000 RETAINING PLATE | RETAINING PLATE | 1 | — | Check availability | |
| 69 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 0 | — | Check availability | |
| 70 | 58007070500 *CHAIN GUIDE BRACKET MX4STR'93 | *CHAIN GUIDE BRACKET MX4STR'93 | 0 | — | Check availability | |
| 71 | 72210079000 BUCKET | BUCKET | 2 | — | Check availability | View Details |
| 72 | 50107072000 SPACER 39MM | SPACER 39MM | 1 | — | Check availability | |
| 73 | 50207073000 * CHAIN SLIDING GUARD '92 | * CHAIN SLIDING GUARD '92 | 1 | — | Check availability | |
| 75 | 0931060503 HH SCREW DIN931 M6x50 | HH SCREW DIN931 M6x50 | 0 | — | Check availability | View Details |
| 76 | 0933060203 HH SCREW DIN0933-M 6X20 | HH SCREW DIN0933-M 6X20 | 0 | — | Check availability | |
| 78 | 0797060003 TOOTH LOCK WASH. DIN6797-A 6,4 | TOOTH LOCK WASH. DIN6797-A 6,4 | 0 | — | Check availability | |
| 79 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 0 | — | Check availability | |
| 80 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 0 | — | Check availability | |
| 81 | 54307072000 * SPACER TUBE 35 MM | * SPACER TUBE 35 MM | 1 | — | Check availability | |
| 82 | 0931060553 HH SCREW DIN931 M6x55 | HH SCREW DIN931 M6x55 | 1 | — | Check availability | View Details |
| 83 | 0963060553 * FLAT HEAD SCREW DIN963 M6x55 | * FLAT HEAD SCREW DIN963 M6x55 | 0 | — | Check availability | |
| 85 | 54607066100 CHAIN GUIDE REAR '94 | CHAIN GUIDE REAR '94 | 1 | — | Check availability | |
| 86 | 50207070000 RETAINING PLATE CHAIN GUIDE' | RETAINING PLATE CHAIN GUIDE' | 1 | — | Check availability | |
| 87 | 5450302310019 SIDE STAND L=409MM '93 | SIDE STAND L=409MM '93 | 1 | — | Check availability | View Details |
| 88 | 0991080353 FLAT HEAD SCREW DIN7991-M 8X35 | FLAT HEAD SCREW DIN7991-M 8X35 | 1 | — | Check availability | View Details |
| 89 | 57103225000 BUSHING 8,2 X 12 X 10 | BUSHING 8,2 X 12 X 10 | 1 | — | Check availability | |
| 90 | 0015060453 HH COLLAR SCREW M 6X45 WS=8 | HH COLLAR SCREW M 6X45 WS=8 | 1 | — | Check availability | View Details |
| 91 | 0015060553 HH COLLAR SCREW M 6X55 WS=8 | HH COLLAR SCREW M 6X55 WS=8 | 1 | — | Check availability | View Details |
| 91 | 0931060553 HH SCREW DIN931 M6x55 | HH SCREW DIN931 M6x55 | 0 | — | Check availability | View Details |
| 92 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 1 | — | Check availability | View Details |
| 92 | 0933060163 HH SCREW DIN0933-M 6X16 | HH SCREW DIN0933-M 6X16 | 0 | — | Check availability | View Details |
| 93 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 1 | — | Check availability | |
| 94 | 5020302610019 * LEVER HOLDER SIDE STAND '93 | * LEVER HOLDER SIDE STAND '93 | 1 | — | Check availability | |
| 95 | 0991060753 FLAT HEAD SCREW DIN7991 M6x75 | FLAT HEAD SCREW DIN7991 M6x75 | 2 | — | Check availability | View Details |
| 96 | 56509064000 SELF LOCKING NUT M6 | SELF LOCKING NUT M6 | 2 | — | Check availability | |
| 97 | 51007069100 RUBBER BUFFER | RUBBER BUFFER | 1 | — | Check availability | View Details |
| 98 | 51003021000 SIDESTAND SPRING LONG | SIDESTAND SPRING LONG | 2 | — | Check availability | |
| 99 | 54310086000 | 1 | — | Check availability | ||
| 100 | 0933080253 HH SCREW DIN0933-M 8X25 | HH SCREW DIN0933-M 8X25 | 1 | — | Check availability |
