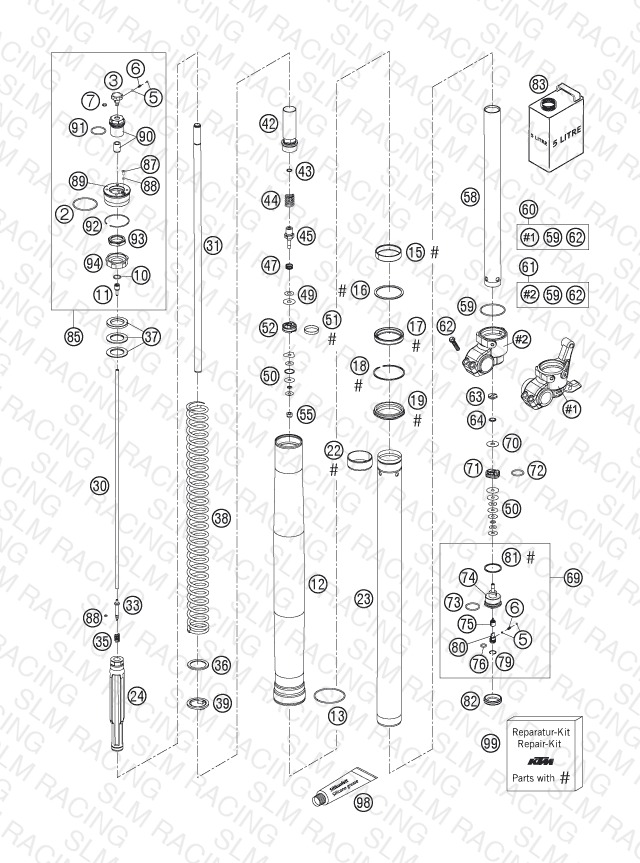

FRONT FORK DISASSEMBLED

← →

Parts (90)

#	Part Number	Description	Qty	Price	Status
2	46810340 O-ring 45x2 NBR70 siliconized	O-ring 45x2 NBR70 siliconized	2	$1.20	Available	2
3	48600018 Adjuster rebound	Adjuster rebound	2	$4.83	Available	2
5	40540603 Steel ball d3	Steel ball d3	2	$1.20	Available	2
6	48600028 Spring (1,7) l7,9	Spring (1,7) l7,9	1	$3.62	Available	1
7	48600044 O-ring 6x1,5 NBR70	O-ring 6x1,5 NBR70	2	$1.20	Available	2
10	48600043 O-ring 12x1,5 NBR70	O-ring 12x1,5 NBR70	2	$2.41	Available	2
11	48600019 Tube tap d4x25	Tube tap d4x25	2	$3.62	Available	2
12	48600492E OUTER TUBE L=577 D=54/60	OUTER TUBE L=577 D=54/60	2	—	Obsolete	View Details
13	48600016 Round-wire snap ring 48x2	Round-wire snap ring 48x2	2	$3.62	Available	2
15	48600429 DU-BUSH D48XD52X12DDL02	DU-BUSH D48XD52X12DDL02	2	$14.18	Available	2
16	48600013 Supportwasher 50x57,6x1,5	Supportwasher 50x57,6x1,5	2	$3.62	Available	2
17	48600399 Shaft seal SKF 48x57,8x9,5 bla	Shaft seal SKF 48x57,8x9,5 bla	2	$16.05	Available	2
18	48600070 Snap ring SB58x1,5 acc drawing	Snap ring SB58x1,5 acc drawing	2	$2.41	Available	2
19	48600400 DUST CAP D=48 58,4X11,8	DUST CAP D=48 58,4X11,8	2	$15.06	Available	2
22	48600428 DU-BUSH D47XD49X20DDL02	DU-BUSH D47XD49X20DDL02	2	$14.18	Available	2
23	48600437 INNER TUBE D=48 L=595	INNER TUBE D=48 L=595	2	$365.08	Available	2
24	48600380S HYDR.STOP L=200MM D=31,9 CPL.	HYDR.STOP L=200MM D=31,9 CPL.	2	—	Obsolete	View Details
30	48600092 ADJUSTMENT TUBE L=517MM	ADJUSTMENT TUBE L=517MM	2	—	Obsolete	View Details
31	48600409 PISTON ROD D=14 L=551 M11X1	PISTON ROD D=14 L=551 M11X1	2	—	Obsolete	View Details
33	48600189 Needle 6x42,6 rebound	Needle 6x42,6 rebound	2	$40.80	Available	2
35	48600033 Spring (7,2) 4-23 needle	Spring (7,2) 4-23 needle	2	$6.15	Available	2
36	48600113 Washer 32x42x2,5 plastic	Washer 32x42x2,5 plastic	2	$13.08	Available	2
37	48600036 Preload bush 42x26,5x2,5	Preload bush 42x26,5x2,5	—	$2.41	Available	1
37	48600037 Preload bush 26,5x42x5	Preload bush 26,5x42x5	—	$4.83	Available	1
37	48600053 Preload bush 26,5x42x1,5	Preload bush 26,5x42x1,5	—	$4.83	Available	1
38	91410011S SPRING 3,6N/MM SET	SPRING 3,6N/MM SET	—	$171.59	Out of Stock	Notify Me
38	91410012S SPRING 3,8N/MM SET D=4,9MM	SPRING 3,8N/MM SET D=4,9MM	—	$171.59	Available	1
38	91410013S SPRING 4,0N/MM SET D=5,0MM	SPRING 4,0N/MM SET D=5,0MM	—	—	Obsolete	View Details
38	91410014S SPRING 4,2N/MM SET D=5,0MM	SPRING 4,2N/MM SET D=5,0MM	1	—	Obsolete	View Details
38	91410015S SPRING 4,4N/MM SET D=5,1MM	SPRING 4,4N/MM SET D=5,1MM	—	$171.59	Available	1
38	91410016S SPRING 4,6N/MM SET	SPRING 4,6N/MM SET	—	$171.59	Available	1
38	91410017S SPRING 4,8N/MM SET	SPRING 4,8N/MM SET	—	$176.87	Available	1
39	48600021 Spring retainer 33,5x43x3	Spring retainer 33,5x43x3	2	$19.68	Available	2
42	48600383S SCREW SLEEVE M29,3X1 L=90 CPL.	SCREW SLEEVE M29,3X1 L=90 CPL.	2	—	Obsolete	View Details
43	48600239 O-ring 8x1,25 NBR70 siliconize	O-ring 8x1,25 NBR70 siliconize	2	$1.99	Available	2
44	48600403 Spring (15) 12-34,5 rebound	Spring (15) 12-34,5 rebound	2	—	Obsolete	View Details
45	48600203 Tap 6x45 rebound	Tap 6x45 rebound	2	—	Obsolete	View Details
47	35480377 Spring (11,7) 1,5-8 valve	Spring (11,7) 1,5-8 valve	2	$2.41	Available	2
49	48600062 CHECK VALVE 8X24X0,1	CHECK VALVE 8X24X0,1	8	$2.41	Available	8
49	48600068 CHECK VALVE 8X18X0,1	CHECK VALVE 8X18X0,1	2	$2.41	Available	2
49	48600215 Shim 8x20x0,10	Shim 8x20x0,10	2	$2.41	Available	2
49	48600216 Shim 8x22x0,10	Shim 8x22x0,10	2	$2.41	Available	2
49	48600352 check valve 8X11X0,4	check valve 8X11X0,4	—	$2.41	Available	1
49	48600357 Shim 8x11x0,10	Shim 8x11x0,10	2	$2.41	Available	2
50	40540400 Shim 6x12x0,10	Shim 6x12x0,10	—	$2.41	Available	1
50	40540401 Shim 6x14x0,10	Shim 6x14x0,10	—	$2.41	Available	1
50	40540402 Shim 6x16x0,10	Shim 6x16x0,10	—	$2.41	Available	1
50	40540403 Shim 6x18x0,10	Shim 6x18x0,10	4	$2.41	Available	4
50	40540414 Shim 6x16x0,25	Shim 6x16x0,25	—	$2.41	Available	1
50	40540415 Shim 6x18x0,25	Shim 6x18x0,25	—	$2.41	Available	1
50	40540448 Shim 6x8,5x0,30	Shim 6x8,5x0,30	—	$2.41	Available	1
50	40540450 Shim 6x9,5x0,30	Shim 6x9,5x0,30	1	$2.41	Available	1
50	48600063 Shim 6x24x0,10	Shim 6x24x0,10	—	$2.41	Available	1
50	48600064 Shim 6x22x0,10	Shim 6x22x0,10	—	$2.41	Available	1
50	48600065 Shim 6x20x0,10	Shim 6x20x0,10	—	$2.41	Available	1
50	48600116 Shim 6x24x0,10 delta	Shim 6x24x0,10 delta	—	$2.41	Available	1
51	48600060 Pistonring 26x28x5	Pistonring 26x28x5	2	$6.15	Available	2
52	48600042 Piston 6,05x27,65x12 rebound	Piston 6,05x27,65x12 rebound	2	—	Obsolete	View Details
55	40540486 Nut M6x0,5 h6,5 WAF10 rebound	Nut M6x0,5 h6,5 WAF10 rebound	2	$4.83	Available	2
58	48600081 TUBE 29,3X1X390 D=8,5MM	TUBE 29,3X1X390 D=8,5MM 640 LC4	2	—	Obsolete	View Details
59	48600048 O-ring 46x2 NBR70 siliconized	O-ring 46x2 NBR70 siliconized	2	$3.62	Available	2
60	48600237S AXLE CLAMP L/S CPL. USD48 04	AXLE CLAMP L/S CPL. USD48 04	1	—	Obsolete	View Details
61	48600238S AXLE CLAMP R/S CPL. USD48 04	AXLE CLAMP R/S CPL. USD48 04	1	—	Out of Stock	Notify Me
62	0015080253 HH COLLAR SCREW M 8X25 WS=10	HH COLLAR SCREW M 8X25 WS=10	8	$2.41	Available	8
63	48600163 Nut valve M6x0,5 h6,5 WAF17	Nut valve M6x0,5 h6,5 WAF17	2	$3.62	Available	2
64	48600202 Spring (8,5) l6,5 valve	Spring (8,5) l6,5 valve	2	$2.41	Available	2
69	48600152S1 TAP COMPRESSION CPL. 03	TAP COMPRESSION CPL. 03	2	$103.80	Out of Stock	Notify Me
70	48600061 Shim 8x24x0,40	Shim 8x24x0,40	2	$2.41	Available	2
71	48600047 Piston 6x27,8x9 compression	Piston 6x27,8x9 compression	2	$11.54	Available	2
72	46811499 O-ring 21x2 NBR70	O-ring 21x2 NBR70	4	$1.20	Available	4
73	35480320 O-ring 24x2 NBR70	O-ring 24x2 NBR70	2	$1.20	Available	2
74	48600152 TAP COMPRESSION	TAP COMPRESSION	2	$103.80	Out of Stock	Notify Me
75	48600190 Needle 10x11,6 compression	Needle 10x11,6 compression	2	$16.05	Out of Stock	Notify Me
76	48600049 O-ring 8x2 NBR70	O-ring 8x2 NBR70	2	$1.20	Available	2
79	48600051 Round-wire snap ring 12x1 DIN7	Round-wire snap ring 12x1 DIN7	2	$3.62	Available	2
80	48600034 Adjustment screw slot compress	Adjustment screw slot compress	2	—	Obsolete	View Details
81	48600004 Copper disc 29,5x33,5x1	Copper disc 29,5x33,5x1	2	$4.83	Available	2
82	48600141 Rubber cap 35x10 NBR80	Rubber cap 35x10 NBR80	2	$4.83	Available	2
83	48600401S1 FORK OIL SAE5 5L 2005	FORK OIL SAE5 5L 2005	1	$165.36	Out of Stock	Notify Me
85	48600075S PRE-LOAD ADJUSTER CPL.(1 PC.)	PRE-LOAD ADJUSTER CPL.(1 PC.)	—	—	Obsolete	View Details
87	48600076 VENT SCREW M4X8	VENT SCREW M4X8	2	$2.41	Available	2
88	48600046 O-ring 3x1,5 NBR70	O-ring 3x1,5 NBR70	2	$1.99	Available	2
89	48600075 SCREW CAP M51X1,5	SCREW CAP M51X1,5	2	—	Obsolete	View Details
90	48600073S ADAPTER ADJUST. KNOB + BUSHING	ADAPTER ADJUST. KNOB + BUSHING	2	—	Obsolete	View Details
91	48600077 O-ring 26x2 NBR90	O-ring 26x2 NBR90	2	$1.20	Available	2
92	46810010 Round-wire snap ring 49x1,5	Round-wire snap ring 49x1,5	1	$3.62	Available	1
93	48600072 Locking nut M25x1 LH h7 WAF32	Locking nut M25x1 LH h7 WAF32	2	—	Obsolete	View Details
94	48600071 Carrier ring spring fork	Carrier ring spring fork	2	—	Obsolete	View Details
98	T511 SILICONE GREASE F. DUST STRI	SILICONE GREASE F. DUST STRI	1	$40.69	Available	1
99	R14013 REPAIR-KIT EXC FRONT FORK06/07	REPAIR-KIT EXC FRONT FORK06/07	1	$124.95	Available	1
