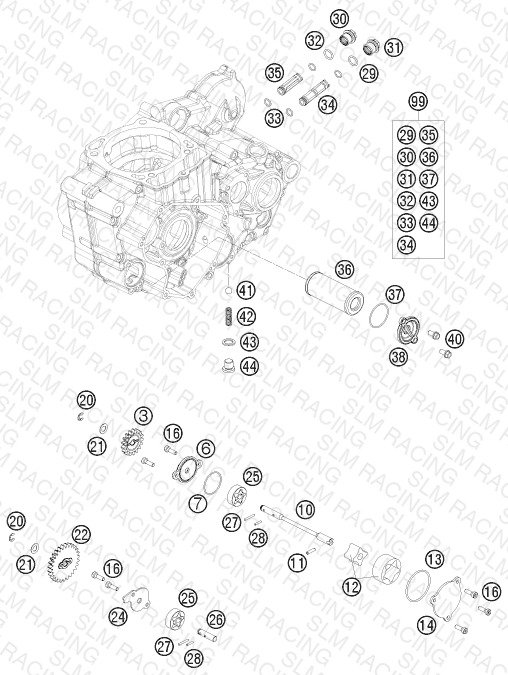

LUBRICATING SYSTEM
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 3 | 78038001017 OIL PUMP GEAR 17 T | OIL PUMP GEAR 17 T | 1 | $6.15 | Available | 1 |
| 6 | 78038103233 OIL PUMP COVER CPL. | OIL PUMP COVER CPL. | 1 | $38.27 | Available | 1 |
| 7 | 0770327013 O-RING 32,7X1,3 VITON 75SHORE | O-RING 32,7X1,3 VITON 75SHORE | 1 | $3.99 | Available | 1 |
| 10 | 78038102000 OIL PUMP SHAFT SP-PP | OIL PUMP SHAFT SP-PP | 1 | — | Obsolete | View Details |
| 11 | 0402041580 needle roller NRB 4x15.8 G2 | needle roller NRB 4x15.8 G2 | 2 | $2.99 | Available | 2 |
| 12 | 60038009000 ROTOR-SET 19MM 03 | ROTOR-SET 19MM 03 | 1 | $62.25 | Available | 1 |
| 13 | 0770440020 O-RING 44,00X2,00 VITON | O-RING 44,00X2,00 VITON | 1 | $3.99 | Available | 1 |
| 14 | 78038004000 OIL PUMP COVER SUCTION PUMP | OIL PUMP COVER SUCTION PUMP | 1 | $30.13 | Available | 1 |
| 16 | 0984050163S CYL. SCREW DIN6912 M5X16 8.8 | CYL. SCREW DIN6912 M5X16 8.8 | 7 | $2.99 | Available | 7 |
| 20 | 0799060000 TAB WASHER DIN6799-RS 6,0 | TAB WASHER DIN6799-RS 6,0 | 1 | $2.99 | Available | 1 |
| 21 | 58038007755 STOP DISK 8,1 X 15 X 0,5 | STOP DISK 8,1 X 15 X 0,5 | 1 | $2.99 | Available | 1 |
| 22 | 78038001027 OIL PUMP GEAR 27T | OIL PUMP GEAR 27T | 1 | $6.15 | Available | 1 |
| 24 | 78038003000 OIL PUMP COVER TRANSM. PUMP | OIL PUMP COVER TRANSM. PUMP | 1 | $12.86 | Available | 1 |
| 25 | 59038011010 OILPUMP ROTOR CPL. 10MM G-73R | OILPUMP ROTOR CPL. 10MM G-73R | 1 | $38.27 | Available | 1 |
| 26 | 78038002000 OIL PUMP SHAFT TRANSM. PUMP | OIL PUMP SHAFT TRANSM. PUMP | 1 | $13.41 | Available | 1 |
| 27 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 | NEEDLEROL.DIN5402 NRA 2,5X19,8 | 1 | $1.99 | Available | 1 |
| 28 | 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 | NEEDLE ROLLER DIN5402 2,5X11,8 | 1 | $1.99 | Available | 1 |
| 29 | 0770125020 O-RING 12,50X2,00 NBR 70 | O-RING 12,50X2,00 NBR 70 | 3 | $2.99 | Available | 3 |
| 30 | 78038017000 SCREW PLUG M16 | SCREW PLUG M16 | 1 | $19.79 | Available | 1 |
| 31 | 78038018000 SCREW PLUG M17 | SCREW PLUG M17 | 1 | $10.44 | Available | 1 |
| 33 | 0770090015 O-RING 9X1,5 NBR | O-RING 9X1,5 NBR | 2 | $2.99 | Available | 2 |
| 34 | 78038015000 OIL SCREEN 12,5X56,5MM | OIL SCREEN 12,5X56,5MM | 1 | $13.52 | Available | 1 |
| 35 | 59038015100 OIL SCREEN 11,8x44,5MM | OIL SCREEN 11,8x44,5MM | 1 | $14.84 | Available | 1 |
| 36 | 77338005100 Oil Filter 07 | Oil Filter 07 | 1 | $10.99 | Available | 1 |
| 37 | 07703305178 O-RING 33,05X1,78 | O-RING 33,05X1,78 | 1 | $3.99 | Available | 1 |
| 38 | 77338041200 OIL FILTER COVER 08 | OIL FILTER COVER 08 | 1 | $13.74 | Available | 1 |
| 40 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 4 | $3.99 | Available | 4 |
| 41 | 0401090003 BALL DIN5401-9 | BALL DIN5401-9 | 1 | $2.99 | Available | 1 |
| 42 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | $6.15 | Available | 1 |
| 43 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 44 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | $4.99 | Available | 1 |
| 99 | 00050000066 OILFILTER GASKET KIT 450/530EX | OILFILTER GASKET KIT 450/530EX | — | — | Obsolete | View Details |
