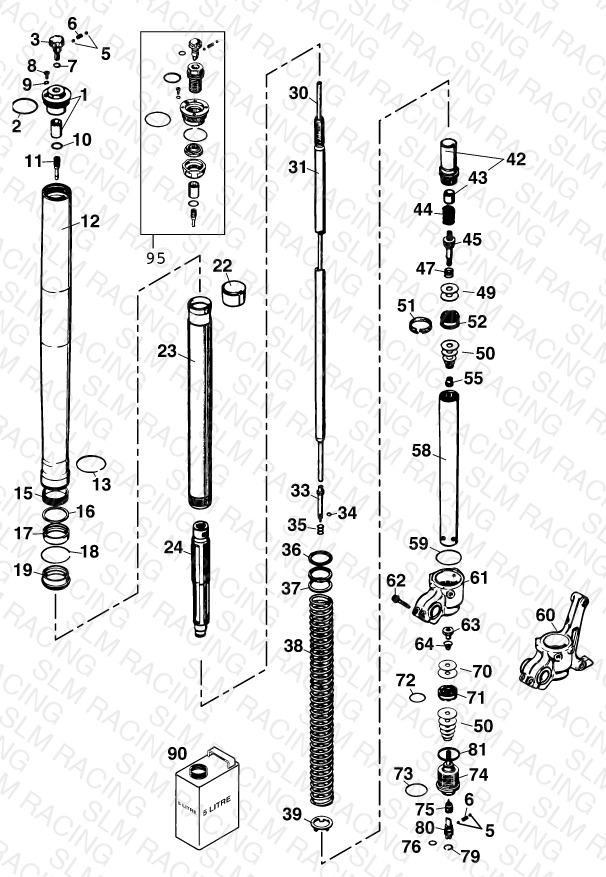

FRONT FORK DISASSEMBLED

← →

Parts (83)

#	Part Number	Description	Qty	Price	Status
1	48600020S SREW CAP+BUSH M51X1,5	SREW CAP+BUSH M51X1,5	2	—	Obsolete	View Details
2	46810016 O-ring 48x2 NBR70 siliconized	O-ring 48x2 NBR70 siliconized	2	$1.20	Available	2
3	48600018 Adjuster rebound	Adjuster rebound	2	$4.83	Available	2
5	40540603 Steel ball d3	Steel ball d3	2	$1.20	Available	2
6	48600028 Spring (1,7) l7,9	Spring (1,7) l7,9	1	$3.62	Available	1
7	48600044 O-ring 6x1,5 NBR70	O-ring 6x1,5 NBR70	2	$1.20	Available	2
8	48600058 Cross flat head screw M4x6	Cross flat head screw M4x6	2	—	Obsolete	View Details
9	48600009 O-ring 3,7x1,6 NBR70	O-ring 3,7x1,6 NBR70	2	$1.20	Available	2
10	48600043 O-ring 12x1,5 NBR70	O-ring 12x1,5 NBR70	2	$2.41	Available	2
11	48600019 Tube tap d4x25	Tube tap d4x25	2	$3.62	Available	2
12	43570125 OUTER TUBE L=577MM D=54/57MM	OUTER TUBE L=577MM D=54/57MM	2	—	Obsolete	View Details
13	43570099 Round-wire snap ring 53x2	Round-wire snap ring 53x2	2	$31.12	Available	2
15	43570019 DU-BUSH 47 X 43 X 20	DU-BUSH 47 X 43 X 20	2	$91.73	Available	2
16	43570092 Supportwasher 45x52,5x1,5	Supportwasher 45x52,5x1,5	2	$23.64	Available	2
17	43570140 OIL SEAL RING 43X53,15X9,5	OIL SEAL RING 43X53,15X9,5	2	$19.57	Available	2
18	43570008 Snap ring SB53x1,5 acc drawing	Snap ring SB53x1,5 acc drawing	2	$3.62	Available	2
19	43570094 DUST STRIPPER D=43MM	DUST STRIPPER D=43MM	2	$19.68	Available	2
22	43570020 DU-BUSH 43,8 X 43 X 20	DU-BUSH 43,8 X 43 X 20	2	$13.41	Backorder — Restocking	2
23	43570145 INNER TUBE D=43MM L=585MM	INNER TUBE D=43MM L=585MM	2	—	Obsolete	View Details
24	43570142S HYDR.STOP L=200MM D=27,5 CPL	HYDR.STOP L=200MM D=27,5 CPL	2	—	Obsolete	View Details
30	48600014 ADJUSTMENT TUBE L=512MM	ADJUSTMENT TUBE L=512MM 640 LC4	2	—	Obsolete	View Details
31	48600023 PISTONR. D=14MM L=546MM M11X1	PISTONR. D=14MM L=546MM M11X1 640 LC4	2	—	Obsolete	View Details
33	48600003 REBOUND NEEDLE	REBOUND NEEDLE	2	—	Obsolete	View Details
34	48600046 O-ring 3x1,5 NBR70	O-ring 3x1,5 NBR70	2	$1.99	Available	2
35	48600033 Spring (7,2) 4-23 needle	Spring (7,2) 4-23 needle	2	$6.15	Available	2
36	48600036 Preload bush 42x26,5x2,5	Preload bush 42x26,5x2,5	—	$2.41	Available	1
36	48600037 Preload bush 26,5x42x5	Preload bush 26,5x42x5	—	$4.83	Available	1
36	48600038 Preload bush 26,5x42x10	Preload bush 26,5x42x10	—	$3.62	Available	1
37	48600039 RING 26,5X42X1,5	RING 26,5X42X1,5	2	$4.83	Available	2
38	95010001S SPRING 3,8 N/MM SET D=4,75	SPRING 3,8 N/MM SET D=4,75	—	—	Obsolete	View Details
38	95010002S SPRING 4,0 N/MM SET D=4,75MM	SPRING 4,0 N/MM SET D=4,75MM	—	—	Obsolete	View Details
38	95010003S SPRING 4,2 N/MM SET D=4,9MM	SPRING 4,2 N/MM SET D=4,9MM	—	—	Obsolete	View Details
38	95010004S SPRING 4,4 N/MM SET D=4,9MM	SPRING 4,4 N/MM SET D=4,9MM	—	—	Obsolete	View Details
38	95010010S SPRING 3,6 N/MM SET D=4,6MM	SPRING 3,6 N/MM SET D=4,6MM	—	—	Obsolete	View Details
39	43570131 Spring retainer 33,5x38,2x3	Spring retainer 33,5x38,2x3	2	$21.22	Available	2
42	43570132S SCREW SLEEVE M29,3X1+BUSH	SCREW SLEEVE M29,3X1+BUSH	2	—	Obsolete	View Details
43	46810651 Guide bushing 14x16x12	Guide bushing 14x16x12	2	$3.62	Backorder — Restocking	2
44	48600015 REBOUND SPRING D=14,6MM L=22MM	REBOUND SPRING D=14,6MM L=22MM	2	$34.35	Obsolete	View Details
45	48600025 TAP REBOUND	TAP REBOUND	2	—	Obsolete	View Details
47	48600059 Spring (11) 0,25-10	Spring (11) 0,25-10	2	—	Obsolete	View Details
49	40541408 SHIM 6X8,0X0,30	SHIM 6X8,0X0,30	—	$2.41	Available	1
49	40541414 Shim 6x8x0,1	Shim 6x8x0,1	—	$2.41	Available	1
49	48600062 CHECK VALVE 8X24X0,1	CHECK VALVE 8X24X0,1	8	$2.41	Available	8
50	40540400 Shim 6x12x0,10	Shim 6x12x0,10	—	$2.41	Available	1
50	40540401 Shim 6x14x0,10	Shim 6x14x0,10	—	$2.41	Available	1
50	40540402 Shim 6x16x0,10	Shim 6x16x0,10	—	$2.41	Available	1
50	40540403 Shim 6x18x0,10	Shim 6x18x0,10	4	$2.41	Available	4
50	40540404 Shim 6x12x0,15	Shim 6x12x0,15	—	$2.41	Available	1
50	40540405 Shim 6x14x0,15	Shim 6x14x0,15	—	$2.41	Available	1
50	40540406 Shim 6x16x0,15	Shim 6x16x0,15	—	$2.41	Available	1
50	40540407 SHIM 6X18X0,15	SHIM 6X18X0,15	—	$2.41	Available	1
50	40540411 Shim 6x18x0,20	Shim 6x18x0,20	—	$2.41	Available	1
50	40540414 Shim 6x16x0,25	Shim 6x16x0,25	—	$2.41	Available	1
50	40540447 Shim 6x10x0,30	Shim 6x10x0,30	—	$2.41	Available	1
50	40541383 Shim 6X11X0,10	Shim 6X11X0,10	—	$2.41	Available	1
50	40541391 Shim 6x11x0,30	Shim 6x11x0,30	—	$2.41	Available	1
50	48600063 Shim 6x24x0,10	Shim 6x24x0,10	—	$2.41	Available	1
50	48600064 Shim 6x22x0,10	Shim 6x22x0,10	—	$2.41	Available	1
50	48600065 Shim 6x20x0,10	Shim 6x20x0,10	—	$2.41	Available	1
50	48600116 Shim 6x24x0,10 delta	Shim 6x24x0,10 delta	—	$2.41	Available	1
50	48600139 Shim 6x22x0,1 delta	Shim 6x22x0,1 delta	—	$2.41	Available	1
51	48600060 Pistonring 26x28x5	Pistonring 26x28x5	2	$6.15	Available	2
52	48600042 Piston 6,05x27,65x12 rebound	Piston 6,05x27,65x12 rebound	2	—	Obsolete	View Details
55	40540486 Nut M6x0,5 h6,5 WAF10 rebound	Nut M6x0,5 h6,5 WAF10 rebound	2	$4.83	Available	2
58	48600081 TUBE 29,3X1X390 D=8,5MM	TUBE 29,3X1X390 D=8,5MM 640 LC4	2	—	Obsolete	View Details
59	43570023 O-ring 41x2 NBR70 siliconized	O-ring 41x2 NBR70 siliconized	2	$15.94	Available	2
60	43570124 AXLE CLAMP L/S 260MM M8 2000	AXLE CLAMP L/S 260MM M8 2000	1	—	Obsolete	View Details
61	43570123 AXLE CLAMP RIGHT M8 2000	AXLE CLAMP RIGHT M8 2000	1	—	Obsolete	View Details
62	50600061 HH COLLAR SCREW M 8X30	HH COLLAR SCREW M 8X30	4	$2.16	Out of Stock	Notify Me
63	40541241 CHECK VALVE NUT M6X0,5	CHECK VALVE NUT M6X0,5	2	—	Obsolete	View Details
64	40541278 Spring (8,5) l6,5 valve	Spring (8,5) l6,5 valve	2	—	Obsolete	View Details
70	48600061 Shim 8x24x0,40	Shim 8x24x0,40	2	$2.41	Available	2
71	48600047 Piston 6x27,8x9 compression	Piston 6x27,8x9 compression	2	$11.54	Available	2
72	46811499 O-ring 21x2 NBR70	O-ring 21x2 NBR70	4	$1.20	Available	4
73	35480320 O-ring 24x2 NBR70	O-ring 24x2 NBR70	2	$1.20	Available	2
74	48600027S TAP COMPRESSION	TAP COMPRESSION	2	$103.80	Out of Stock	Notify Me
75	48600035 * NEEDLE COMPRESSION M10X1	* NEEDLE COMPRESSION M10X1	2	—	Obsolete	View Details
76	48600049 O-ring 8x2 NBR70	O-ring 8x2 NBR70	2	$1.20	Available	2
79	48600051 Round-wire snap ring 12x1 DIN7	Round-wire snap ring 12x1 DIN7	2	$3.62	Available	2
80	48600034 Adjustment screw slot compress	Adjustment screw slot compress	2	—	Obsolete	View Details
81	48600004 Copper disc 29,5x33,5x1	Copper disc 29,5x33,5x1	2	$4.83	Available	2
90	40540882 FORKOIL REZ 71 SAE 5	FORKOIL REZ 71 SAE 5	1	—	Obsolete	View Details
95	48600075S PRE-LOAD ADJUSTER CPL.(1 PC.)	PRE-LOAD ADJUSTER CPL.(1 PC.)	—	—	Obsolete	View Details
