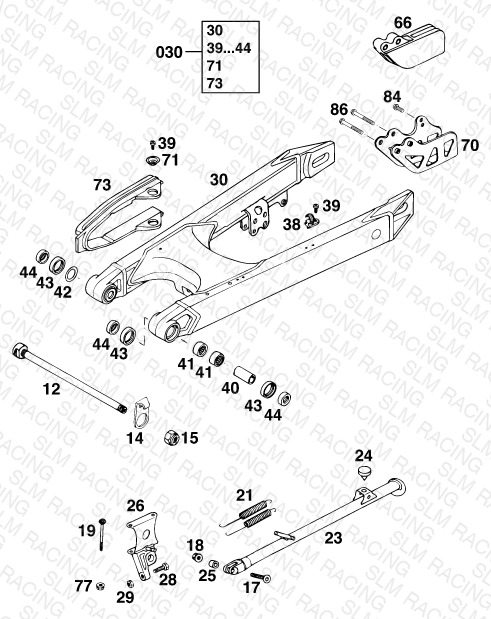

SWING ARM
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 12 | 50203014100 SWINGARM BOLT '92 L=250 B20 | SWINGARM BOLT '92 L=250 B20 | 1 | — | Obsolete | View Details |
| 14 | 50230211000 BRAKE HOSE GUIDE '89 | BRAKE HOSE GUIDE '89 | 1 | — | Obsolete | View Details |
| 15 | 0985141503 SELF LOCKINGNUT DIN985 M14x1,5 | SELF LOCKINGNUT DIN985 M14x1,5 | 1 | $3.99 | Available | 1 |
| 17 | 0991080353 FLAT HEAD SCREW DIN7991-M 8X35 | FLAT HEAD SCREW DIN7991-M 8X35 | 1 | — | Obsolete | View Details |
| 18 | 54310086000 | 2 | — | Obsolete | View Details | |
| 19 | 0991060753 FLAT HEAD SCREW DIN7991 M6x75 | FLAT HEAD SCREW DIN7991 M6x75 | 2 | — | Obsolete | View Details |
| 21 | 51003021000 SIDESTAND SPRING LONG | SIDESTAND SPRING LONG | 1 | $8.24 | Available | 1 |
| 23 | 5450302310019 SIDE STAND L=409MM '93 | SIDE STAND L=409MM '93 | 1 | — | Obsolete | View Details |
| 24 | 51007069100 RUBBER BUFFER | RUBBER BUFFER | 1 | — | Obsolete | View Details |
| 25 | 57103225000 BUSHING 8,2 X 12 X 10 | BUSHING 8,2 X 12 X 10 | 1 | $4.99 | Available | 1 |
| 26 | 5020302610019 * LEVER HOLDER SIDE STAND '93 | * LEVER HOLDER SIDE STAND '93 | 1 | — | Obsolete | View Details |
| 28 | 0933080253 HH SCREW DIN0933-M 8X25 | HH SCREW DIN0933-M 8X25 | 2 | $2.99 | Available | 2 |
| 29 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | $2.99 | Available | 2 |
| 30 | 56503030900 * SWINGARM LOOSE 500 580 MM '9 | * SWINGARM LOOSE 500 580 MM '9 | 1 | — | Obsolete | View Details |
| 30 | 56503030944 SWINGARM CPL.580MM 500 '94 | SWINGARM CPL.580MM 500 '94 | 1 | — | Obsolete | View Details |
| 38 | 54611076000 RETAINING CLAMP FOR BRAKE HOSE | RETAINING CLAMP FOR BRAKE HOSE | — | $2.99 | Available | 1 |
| 39 | 0010050103 SPECIAL SCREW M 5,0X10 | SPECIAL SCREW M 5,0X10 | 2 | $2.99 | Available | 2 |
| 40 | 50203081700 BUSHING SLEEVE 15X20X38,75 | BUSHING SLEEVE 15X20X38,75 | 2 | $20.23 | Available | 2 |
| 41 | 50203097000 NEEDLE BUSH HK 2012 | NEEDLE BUSH HK 2012 | 4 | $18.25 | Available | 4 |
| 42 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $3.62 | Available | 2 |
| 43 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | $7.80 | Available | 4 |
| 44 | 54603090000 BUCKET F.SHAFTSEALRING 15X25X9 | BUCKET F.SHAFTSEALRING 15X25X9 | 4 | $14.62 | Available | 4 |
| 66 | 54607066100 CHAIN GUIDE REAR '94 | CHAIN GUIDE REAR '94 | 1 | $33.65 | Available | 1 |
| 70 | 50207070000 RETAINING PLATE CHAIN GUIDE' | RETAINING PLATE CHAIN GUIDE' | 1 | — | Obsolete | View Details |
| 71 | 72210079000 BUCKET | BUCKET | 2 | $3.99 | Available | 2 |
| 73 | 50207073000 * CHAIN SLIDING GUARD '92 | * CHAIN SLIDING GUARD '92 | 1 | — | Obsolete | View Details |
| 77 | 56509064000 SELF LOCKING NUT M6 | SELF LOCKING NUT M6 | 1 | — | Obsolete | View Details |
| 84 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $3.99 | Available | 3 |
| 84 | 0933060163 HH SCREW DIN0933-M 6X16 | HH SCREW DIN0933-M 6X16 | 1 | — | Obsolete | View Details |
| 86 | 0015060453 HH COLLAR SCREW M 6X45 WS=8 | HH COLLAR SCREW M 6X45 WS=8 | 1 | $2.99 | Available | 1 |
| 86 | 0931060453 HH SCREW DIN931 M6x45 | HH SCREW DIN931 M6x45 | 2 | — | Obsolete | View Details |
