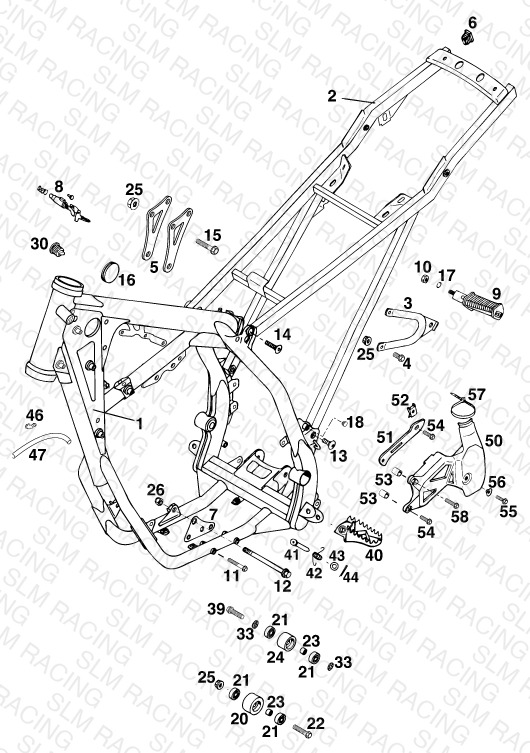

FRAME
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 0 | 54603140100 FOOT REST R/S WIDE ' | FOOT REST R/S WIDE ' | 1 | — | Check availability | |
| 1 | 54603401800 * FRAME FOR KOKUSAN-IGNITON '9 | * FRAME FOR KOKUSAN-IGNITON '9 | 1 | — | Check availability | |
| 2 | 54603402000 % SUBFRAME STEEL '94 | % SUBFRAME STEEL '94 | 1 | — | Check availability | |
| 5 | 54603045100 * ENGINE BRACE 250/300/360 '94 | * ENGINE BRACE 250/300/360 '94 | 2 | — | Check availability | |
| 6 | 58303002090 PLUG 12 X 17 MM | PLUG 12 X 17 MM | 2 | $1.09 | Obsolete | View Details |
| 7 | 54603055000 ENGINE MOUNTING 250/300 '90 | ENGINE MOUNTING 250/300 '90 | 1 | $14.69 | Obsolete | View Details |
| 8 | 71003007000 STEERING HEAD LOCK CPL. ZADI | STEERING HEAD LOCK CPL. ZADI | 1 | $37.72 | Available | 1 |
| 11 | 0015060403 HH COLLAR SCREW M 6X40 WS=8 | HH COLLAR SCREW M 6X40 WS=8 | 2 | $1.49 | Obsolete | View Details |
| 12 | 54603013000 engine brac.scr. M10x105 WS13 | engine brac.scr. M10x105 WS13 | 2 | $14.29 | Available | 2 |
| 13 | 54610052000 SPROCKET SCREW-AH M8X20 WS=6 | SPROCKET SCREW-AH M8X20 WS=6 | 2 | $2.38 | Obsolete | View Details |
| 14 | 54510052000 SPROCKET SCREW-AH M 8X26 | SPROCKET SCREW-AH M 8X26 | 2 | — | Check availability | |
| 15 | 56530079000 HH COLLAR SCREW M 8X44 WS13 | HH COLLAR SCREW M 8X44 WS13 | 3 | $2.30 | Obsolete | View Details |
| 16 | 54606004000 PLUG 37MM | PLUG 37MM | 2 | $2.99 | Available | 2 |
| 18 | 54403135000 PLASTIC CAP SFL10 | PLASTIC CAP SFL10 | 1 | $2.99 | Available | 1 |
| 20 | 50203053100 CHAIN ROLL D=35MM | CHAIN ROLL D=35MM | 1 | — | Check availability | |
| 21 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 4 | $25.18 | Out of Stock | Notify Me |
| 22 | 0015080353 HH COLLAR SCREW M 8X35 WS=10 | HH COLLAR SCREW M 8X35 WS=10 | 1 | $1.73 | Obsolete | View Details |
| 23 | 74003021000 BUSHING 8.2 X 12 X 6 | BUSHING 8.2 X 12 X 6 | 2 | $3.99 | Available | 2 |
| 24 | 50203053000 CHAIN ROLL D=30MM | CHAIN ROLL D=30MM | 1 | $7.91 | Available | 1 |
| 25 | 54310086000 | 8 | — | Check availability | ||
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 30 | 42007049000 PLASTIC CAP | PLASTIC CAP | 1 | $1.29 | Obsolete | View Details |
| 33 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 2 | $2.99 | Available | 2 |
| 39 | 0015080303 HH COLLAR SCREW M 8X30 WS=10 | HH COLLAR SCREW M 8X30 WS=10 | 1 | $2.16 | Obsolete | View Details |
| 40 | 54603040100 % FOOT REST L/S WIDE ' | % FOOT REST L/S WIDE ' | 1 | — | Check availability | |
| 41 | 54603044000 BOLT FOR FOOTREST 9,8 X 50 | BOLT FOR FOOTREST 9,8 X 50 | 2 | $8.73 | Obsolete | View Details |
| 42 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | $6.15 | Available | 2 |
| 43 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 44 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.12 | Obsolete | View Details |
| 46 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 1 | $6.15 | Available | 1 |
| 47 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | 0 | $7.14 | Available | 1 |
| 50 | 54607061000 SPROCKET COVER | SPROCKET COVER | 1 | $16.79 | Obsolete | View Details |
| 51 | 54630061000 CHAIN SLIDING PLATE 14 T/15 T | CHAIN SLIDING PLATE 14 T/15 T | 1 | $18.39 | Obsolete | View Details |
| 52 | 54603048100 clip nut M6 | clip nut M6 | 1 | $4.99 | Available | 1 |
| 53 | 54613038150 BUSHING 6,5X8X11 | BUSHING 6,5X8X11 | 2 | $4.99 | Available | 2 |
| 54 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 2 | $1.14 | Obsolete | View Details |
| 55 | 0015050203 HH COLLAR SCREW M 5X20 WS=8 | HH COLLAR SCREW M 5X20 WS=8 | 1 | $1.35 | Obsolete | View Details |
| 56 | 54603073000 COLLAR BUSHING 5 X 10 X 6 ALU | COLLAR BUSHING 5 X 10 X 6 ALU | 1 | $2.36 | Obsolete | View Details |
| 57 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 1 | $1.99 | Available | 1 |
| 58 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 1 | $1.03 | Obsolete | View Details |
