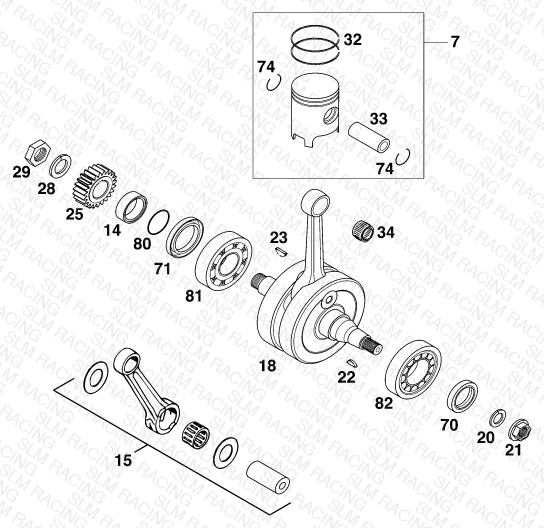

CRANKSHAFT, PISTON
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 7 | 50330007000 I PISTON I CPL. 54,25MM 125'98 | PISTON I CPL. 54,25MM 125'98 | 1 | — | Check availability | View Details |
| 7 | 50330007000 II PISTON II CPL. 54,25MM 125'98 | PISTON II CPL. 54,25MM 125'98 | 1 | — | Check availability | View Details |
| 7 | 52330007000 I PISTON I CPL. 64MM 200' | PISTON I CPL. 64MM 200' | 1 | — | Check availability | View Details |
| 7 | 52330007000 II PISTON II CPL. 64MM 200' | PISTON II CPL. 64MM 200' | 1 | — | Check availability | View Details |
| 14 | 54633014100 SPACER BUSHING 12MM | SPACER BUSHING 12MM | 1 | — | Check availability | |
| 15 | 50330015000 CON.ROD REPAIR KIT 125'98 | CON.ROD REPAIR KIT 125'98 | 1 | — | Check availability | View Details |
| 15 | 52330015000 CON.ROD REPAIR KIT 200'98 | CON.ROD REPAIR KIT 200'98 | 1 | — | Check availability | View Details |
| 18 | 50330018000 CRANKSHAFT STROKE 54 125'98 | CRANKSHAFT STROKE 54 125'98 | 1 | — | Check availability | View Details |
| 18 | 52330018000 CRANKSHAFT 200 MXC/EXC ' | CRANKSHAFT 200 MXC/EXC ' | 1 | — | Check availability | |
| 20 | 50230029012 LOCKING RING VSK 12 | LOCKING RING VSK 12 | 1 | — | Check availability | |
| 21 | 49030021000 COLLAR NUT M12X1 R/S | COLLAR NUT M12X1 R/S | 1 | — | Check availability | View Details |
| 22 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | — | Check availability | |
| 23 | 0888050650 WOODRUFF KEY DIN6888-5X6,5 | WOODRUFF KEY DIN6888-5X6,5 | 1 | — | Check availability | |
| 25 | 50332023023 PRIM. PINION 23-T 125/200'98 | PRIM. PINION 23-T 125/200'98 | 1 | — | Check availability | |
| 28 | 50230029016 LOCKING RING VSK 16 | LOCKING RING VSK 16 | 1 | — | Check availability | |
| 29 | 50330029000 HEXAGON NUT M 16 X 1,5 - L/S | HEXAGON NUT M 16 X 1,5 - L/S | 1 | — | Check availability | View Details |
| 32 | 50230032500 SQUARE RING 54,25X1 125'92 | SQUARE RING 54,25X1 125'92 | 1 | — | Check availability | View Details |
| 32 | 52330032000 SQUARE RING 64X1 200'98 | SQUARE RING 64X1 200'98 | 2 | — | Check availability | View Details |
| 33 | 50130033000 PISTON PIN 9X15X46,3 125'93 | PISTON PIN 9X15X46,3 125'93 | 1 | — | Check availability | View Details |
| 33 | 52330033000 PISTON PIN 10X16X46 200' | PISTON PIN 10X16X46 200' | 1 | — | Check availability | View Details |
| 34 | 51030034000 NEEDLE BEARING KBK 15X19X20 | NEEDLE BEARING KBK 15X19X20 | 1 | — | Check availability | |
| 34 | 52330034000 NEEDLE BEARING KV16X20X20 FN | NEEDLE BEARING KV16X20X20 FN | 1 | — | Check availability | |
| 70 | 0760253570 SHAFT SEAL RING 25X35X7 BTSL | SHAFT SEAL RING 25X35X7 BTSL | 1 | — | Check availability | |
| 71 | 0760324564 SHAFT SEAL RING 32X45X6,5 BT | SHAFT SEAL RING 32X45X6,5 BT | 1 | — | Check availability | View Details |
| 74 | 52030074000 WIRE LOCK RING C15X1,2 | WIRE LOCK RING C15X1,2 | 2 | — | Check availability | View Details |
| 74 | 52330074000 WIRE LOCK RING C16X1,2 | WIRE LOCK RING C16X1,2 | 2 | — | Check availability | View Details |
| 80 | 0770250020 O-RING 25,00X2,00 NBR 70 | O-RING 25,00X2,00 NBR 70 | 1 | — | Check availability | |
| 81 | 0625063054 BALL BEARING NSK 6305 C4E | BALL BEARING NSK 6305 C4E | 1 | — | Check availability | |
| 82 | 50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46 | CYL.ROLLER BEAR.NJ206 ET2XCS46 | 1 | — | Check availability |
