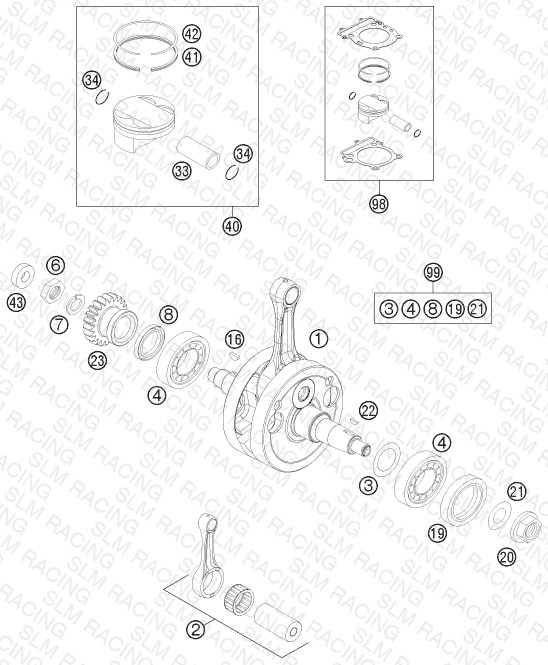

CRANKSHAFT, PISTON
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77030118300 CRANKSHAFT EXC-F | CRANKSHAFT EXC-F | 1 | — | Obsolete | View Details |
| 2 | 77030015244 CON. ROD REP. SET | CON. ROD REP. SET | 1 | — | Obsolete | View Details |
| 3 | 56030081000 THRUST WASHER 30,5X45X0,10 | THRUST WASHER 30,5X45X0,10 | — | $1.99 | Available | 1 |
| 3 | 56030081100 THRUST WASHER 30,7X47X0,15 | THRUST WASHER 30,7X47X0,15 | — | $2.99 | Available | 1 |
| 3 | 56030081200 THRUST WASHER 30,5X45X0,30 | THRUST WASHER 30,5X45X0,30 | — | $2.99 | Available | 1 |
| 4 | 50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46 | CYL.ROLLER BEAR.NJ206 ET2XCS46 | 1 | $97.89 | Available | 1 |
| 6 | 54630029000 HEX.NUT L/SH M18X1,5 | HEX.NUT L/SH M18X1,5 | 1 | $12.53 | Available | 1 |
| 7 | 58132072000 LOCK WASHER VSK 18 | LOCK WASHER VSK 18 | 1 | $2.99 | Available | 1 |
| 8 | 0760354240 SH.SEAL RING 35X42X4 B10FNIB | SH.SEAL RING 35X42X4 B10FNIB | 1 | $6.15 | Available | 1 |
| 16 | 6946005 WOODRUFF KEY 5X6,5 HARDED | WOODRUFF KEY 5X6,5 HARDED | 1 | $2.99 | Available | 1 |
| 19 | 0760304240 SH. SEAL RING 30X42X4 B10F | SH. SEAL RING 30X42X4 B10F | 1 | $4.99 | Available | 1 |
| 20 | 49030021000 COLLAR NUT M12X1 R/S | COLLAR NUT M12X1 R/S | 1 | $2.99 | Available | 1 |
| 21 | 0137120000 SPRING WASHER DIN0137-B12 | SPRING WASHER DIN0137-B12 | 1 | $1.99 | Backorder — Restocking | 1 |
| 22 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | $2.99 | Available | 1 |
| 23 | 77032000122 PRIMARY GEAR 22T. 05 | PRIMARY GEAR 22T. 05 | 1 | $126.38 | Out of Stock | Notify Me |
| 33 | 77030033000 PISTON PIN BOLT D=16mm 05 | PISTON PIN BOLT D=16mm 05 | 1 | — | Obsolete | View Details |
| 34 | 77030074000 CIRCLIP 05 | CIRCLIP 05 | 2 | $4.99 | Available | 2 |
| 40 | 77130007000 I PISTON I CPL. | PISTON I CPL. | 1 | — | Obsolete | View Details |
| 40 | 77130007000 II PISTON II CPL. | PISTON II CPL. | 1 | $467.05 | Out of Stock | Notify Me |
| 41 | 77130032000 OIL SCRAPER RING | OIL SCRAPER RING | 1 | — | Obsolete | View Details |
| 42 | 77030030200 COMPRESSION RING | COMPRESSION RING | 1 | $57.74 | Available | 1 |
| 43 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 98 | 00050000013 PISTON KIT GR.II EXCF/SXF 06-1 | PISTON KIT GR.II EXCF/SXF 06-1 | — | $491.80 | Available | 1 |
| 98 | 00050000033 PISTONKIT GR.I EXC-F/SX-F06-13 | PISTONKIT GR.I EXC-F/SX-F06-13 | — | $526.67 | Available | 1 |
| 99 | 00050002302 CRANKSHAFT REP. KIT 250SX-F/ | CRANKSHAFT REP. KIT 250SX-F/ | — | — | Obsolete | View Details |
