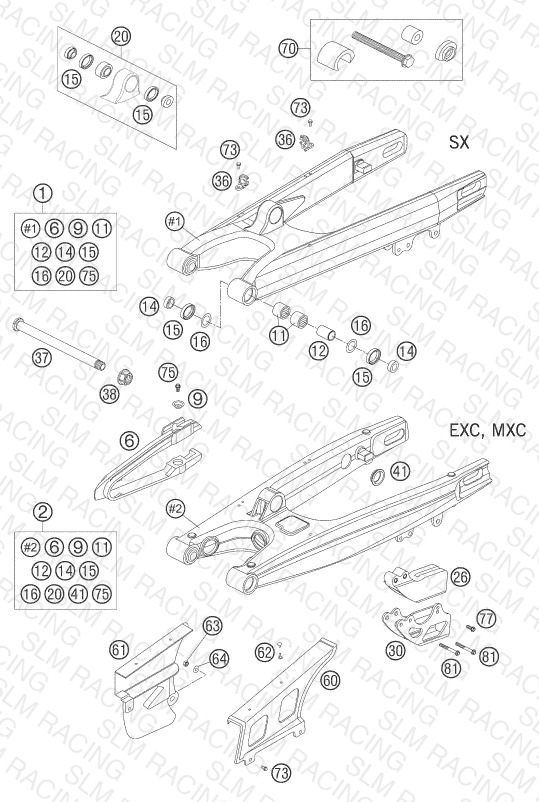

SWING ARM
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 59404230144 SWINGARM CPL. 05 | SWINGARM CPL. 05 | 1 | — | Check availability | |
| 6 | 50304066000 CHAIN GUARD '97 | CHAIN GUARD '97 | 1 | $22.21 | Obsolete | View Details |
| 6 | 50304066100 CHAIN GUARD 05 | CHAIN GUARD 05 | 1 | $30.02 | Available | 1 |
| 9 | 72210079000 BUCKET | BUCKET | 2 | $3.62 | Obsolete | View Details |
| 11 | 59004031100 NEEDLE BEARING HK2212V | NEEDLE BEARING HK2212V | 4 | $7.64 | Obsolete | View Details |
| 12 | 59404032000 Bearing sleeve 17x22x38.7 03 | Bearing sleeve 17x22x38.7 03 | 2 | $11.87 | Available | 2 |
| 14 | 54804034000 Bucket f. shaft seal ring 03 | Bucket f. shaft seal ring 03 | 4 | $6.15 | Available | 4 |
| 15 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 6 | $7.80 | Available | 6 |
| 16 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $2.09 | Obsolete | View Details |
| 20 | 50304090044 PIVOT BEARING+BUSH. PDS '99 | PIVOT BEARING+BUSH. PDS '99 | 1 | $58.42 | Obsolete | View Details |
| 26 | 54607066100 CHAIN GUIDE REAR '94 | CHAIN GUIDE REAR '94 | 1 | $33.65 | Available | 1 |
| 30 | 54607070144 RETAINING PLATE CPL. | RETAINING PLATE CPL. | 1 | $36.95 | Available | 1 |
| 36 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE'96 | RETAIN.CLAMP FOR BRAKE HOSE'96 | 2 | $2.99 | Available | 2 |
| 37 | 54804037000 SWINGARM BOLT M16X1,5 03 | SWINGARM BOLT M16X1,5 03 | 1 | $61.11 | Obsolete | View Details |
| 38 | 54804038000 Nut with flange M16X1,5 WS=19 | Nut with flange M16X1,5 WS=19 | 1 | $2.99 | Available | 1 |
| 41 | 58404041100 CLOSING COVER ROUND 03 | CLOSING COVER ROUND 03 | 5 | $1.99 | Available | 5 |
| 61 | 50304060100 CHAIN GUARD SMALL EXC 2000 | CHAIN GUARD SMALL EXC 2000 | 1 | $11.59 | Obsolete | View Details |
| 62 | 20012062055 HOLLOW RIVET TWO PARTS | HOLLOW RIVET TWO PARTS | 2 | $3.99 | Available | 2 |
| 63 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 64 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 1 | $2.99 | Available | 1 |
| 70 | 50329000044 TOOL BEARING MOUNTING PDS | TOOL BEARING MOUNTING PDS | 1 | $632.71 | Out of Stock | Notify Me |
| 73 | 0009050103 SPECIAL SCREW M 5,0X10 | SPECIAL SCREW M 5,0X10 | 2 | $1.03 | Obsolete | View Details |
| 75 | 0015060103 HH COLLAR SCREW M 6X10 WS=8 | HH COLLAR SCREW M 6X10 WS=8 | 2 | $1.42 | Obsolete | View Details |
| 77 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 1 | $1.12 | Obsolete | View Details |
| 81 | 0015060503 HH COLLAR SCREW M 6X50 WS=8 | HH COLLAR SCREW M 6X50 WS=8 | 2 | $1.25 | Obsolete | View Details |
