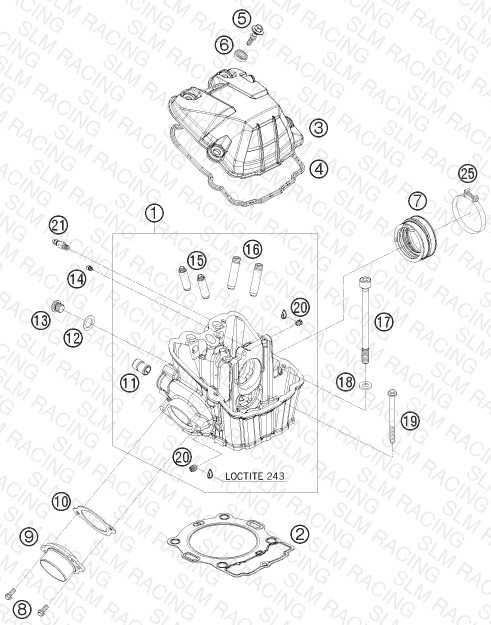

CYLINDER HEAD
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 78036020044 CYLINDER HEAD CPL. | CYLINDER HEAD CPL. | 1 | — | Check availability | View Details |
| 2 | 78030036000 CYLINDER HEAD GASKET 08 | CYLINDER HEAD GASKET 08 | 1 | — | Check availability | View Details |
| 3 | 7803605200033 VALVE COVER BLACK MATT | VALVE COVER BLACK MATT | 1 | — | Check availability | |
| 4 | 78036053000 VALVE COVER GASKET | VALVE COVER GASKET | 1 | — | Check availability | View Details |
| 5 | 78036054100 VALVE COVER SCREW | VALVE COVER SCREW | 4 | — | Check availability | |
| 6 | 75036052010 decoupling element | decoupling element | 4 | — | Check availability | |
| 7 | 78036144100 INTAKE BOOT | INTAKE BOOT | 1 | — | Check availability | |
| 8 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 2 | — | Check availability | View Details |
| 9 | 78036139000 EXHAUST FLANGE CPL. EXC-F 08 | EXHAUST FLANGE CPL. EXC-F 08 | 1 | — | Check availability | View Details |
| 10 | 78036041000 EXHAUST FLANGE GASKET | EXHAUST FLANGE GASKET | 1 | — | Check availability | View Details |
| 11 | 58030010200 SCREW IN NOZZLE M20X1,5 | SCREW IN NOZZLE M20X1,5 | 1 | — | Check availability | |
| 12 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | — | Check availability | |
| 13 | 78036024000 PLUG SCREW SAS M12X1,5 | PLUG SCREW SAS M12X1,5 | 1 | — | Check availability | |
| 14 | 60030063070 oil jet 70 M5 | oil jet 70 M5 | 1 | — | Check availability | |
| 15 | 78036026001 VALVE GUIDE EXHAUST | VALVE GUIDE EXHAUST | 2 | — | Check availability | View Details |
| 16 | 78036025001 VALVE GUIDE INTAKE | VALVE GUIDE INTAKE | 2 | — | Check availability | |
| 17 | 78030044000 CYL. HEAD SCREW M10X1,25 L=125 | CYL. HEAD SCREW M10X1,25 L=125 | 4 | — | Check availability | View Details |
| 18 | 77336089010 washer 19x10.5x2.5 | washer 19x10.5x2.5 | 4 | — | Check availability | |
| 19 | 0025060756 HH COLLAR SCREW M6X75 TX30 | HH COLLAR SCREW M6X75 TX30 | 1 | — | Check availability | |
| 20 | 59030296000 SCREW PLUG | SCREW PLUG | 2 | — | Check availability | |
| 21 | 58336020190 VACUUM CONECTION M6/3MM '97 | VACUUM CONECTION M6/3MM '97 | 1 | — | Check availability | |
| 25 | 59030061000 CLAMP D=56MM B=9MM M4X25 | CLAMP D=56MM B=9MM M4X25 | 1 | — | Check availability |
