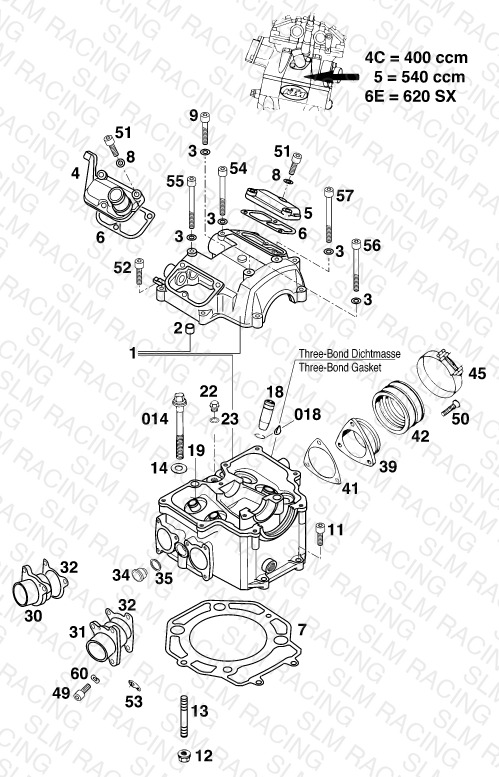

CYLINDER HEAD
Parts (43)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 57636020300 CYLINDER HEAD CPL. 400 LC4 '97 | CYLINDER HEAD CPL. 400 LC4 '97 | 1 | — | Check availability | |
| 1 | 58336020400 CYLINDER HEAD CPL. 540 LC4 '98 | CYLINDER HEAD CPL. 540 LC4 '98 | 1 | — | Check availability | |
| 1 | 58336120300 CYLINDER HEAD CPL. 620 SX '97 | CYLINDER HEAD CPL. 620 SX '97 | 1 | — | Check availability | |
| 2 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | — | Check availability | View Details |
| 3 | 58036065100 CU-SEAL RING 6 X 10 X 2 | CU-SEAL RING 6 X 10 X 2 | 5 | — | Check availability | |
| 4 | 58036152500 VALVE COVER FRONT | VALVE COVER FRONT | 1 | — | Check availability | |
| 5 | 58036052000 VALVE COVER REAR | VALVE COVER REAR | 1 | — | Check availability | View Details |
| 6 | 58036053000 VALVE COVER GASKET | VALVE COVER GASKET | 2 | — | Check availability | |
| 7 | 57530036000 CYLINDER HEAD GASKET 90,3 MM | CYLINDER HEAD GASKET 90,3 MM | 1 | — | Check availability | |
| 7 | 58030136200 CYL.HEAD GASKET 95,3 MM | CYL.HEAD GASKET 95,3 MM | 1 | — | Check availability | View Details |
| 7 | 58330036000 CYLINDER HEAD GASKET 101,3 MM | CYLINDER HEAD GASKET 101,3 MM | 1 | — | Check availability | |
| 8 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability | |
| 9 | 0912060353 AH SCREW DIN0912-M 6X35 | AH SCREW DIN0912-M 6X35 | 4 | — | Check availability | |
| 11 | 0912060253 AH SCREW DIN0912-M 6X25 | AH SCREW DIN0912-M 6X25 | 6 | — | Check availability | |
| 12 | 49030028000 COLLAR NUT M8 | COLLAR NUT M8 | 2 | — | Check availability | |
| 13 | 0835080355 STUD DIN0835-M 8X35 10.9 | STUD DIN0835-M 8X35 10.9 | 2 | — | Check availability | |
| 13 | 54330043000 STUD DIN0835-M 8X40 | STUD DIN0835-M 8X40 | 2 | — | Check availability | View Details |
| 14 | 58036098000 CU-SEAL RING 10 X 20 X 1 | CU-SEAL RING 10 X 20 X 1 | 4 | — | Check availability | |
| 14 | 58036099100 COLLAR SCREW M10X80 WS=13 10.9 | COLLAR SCREW M10X80 WS=13 10.9 | 4 | — | Check availability | |
| 18 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | — | Check availability | |
| 18 | 58036026600 VALVE GUIDE INTAKE | VALVE GUIDE INTAKE | 2 | — | Check availability | |
| 19 | 58036126600 VALVE GUIDE EXHAUST | VALVE GUIDE EXHAUST | 2 | — | Check availability | |
| 22 | 0910100003 PLUG DIN0910-M 10X1 | PLUG DIN0910-M 10X1 | 1 | — | Check availability | |
| 23 | 58038032010 CU-SEAL RING DIN7603-10X14X1 | CU-SEAL RING DIN7603-10X14X1 | 7 | — | Check availability | |
| 30 | 58036040000 EXHAUST FLANGE R/S | EXHAUST FLANGE R/S | 1 | — | Check availability | |
| 31 | 58036140000 EXHAUST FLANGE L/S | EXHAUST FLANGE L/S | 1 | — | Check availability | |
| 32 | 58036041000 EXHAUST FLANGE GASKET | EXHAUST FLANGE GASKET | 2 | — | Check availability | |
| 34 | 58336024000 PLUG SAS BORE | PLUG SAS BORE | 1 | — | Check availability | |
| 35 | 58436054000 CU-SEAL RING 12 X 16 X 2 | CU-SEAL RING 12 X 16 X 2 | 1 | — | Check availability | |
| 39 | 58136042040 INTAKE FLANGE D=40MM | INTAKE FLANGE D=40MM | 1 | — | Check availability | |
| 41 | 58136043000 INTAKE FLANGE GASKET | INTAKE FLANGE GASKET | 1 | — | Check availability | |
| 42 | 57536044100 INTAKE BOOT D=39MM 540 LC4 '98 | INTAKE BOOT D=39MM 540 LC4 '98 | 1 | — | Check availability | View Details |
| 42 | 58136044100 INTAKE BOOT D=38MM 400-660 LC4 | INTAKE BOOT D=38MM 400-660 LC4 | 1 | — | Check availability | |
| 45 | 56530061000 CLAMP SM12/A60 | CLAMP SM12/A60 | 2 | — | Check availability | View Details |
| 49 | 0912060163 AH SCREW DIN0912-M 6X16 | AH SCREW DIN0912-M 6X16 | 1 | — | Check availability | |
| 50 | 0991060203 FLAT H.SCREW DIN7991-M6X20 | FLAT H.SCREW DIN7991-M6X20 | 6 | — | Check availability | View Details |
| 51 | 0912060203 AH SCREW DIN0912-M 6X20 | AH SCREW DIN0912-M 6X20 | 1 | — | Check availability | |
| 53 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | — | Check availability | |
| 54 | 0912060501 AH SCREW DIN0912-M 6X50 12.9 | AH SCREW DIN0912-M 6X50 12.9 | 1 | — | Check availability | |
| 55 | 0912060551 AH SCREW DIN0912-M 6X55 12.9 | AH SCREW DIN0912-M 6X55 12.9 | 1 | — | Check availability | |
| 56 | 0912060653 SHCS DIN 912 M6x65 | SHCS DIN 912 M6x65 | 1 | — | Check availability | |
| 57 | 0912060703 AH SCREW DIN0912-M 6X70 | AH SCREW DIN0912-M 6X70 | 1 | — | Check availability | |
| 60 | 0137060000 SPRING WASHER DIN0137-B 6 | SPRING WASHER DIN0137-B 6 | 6 | — | Check availability |
