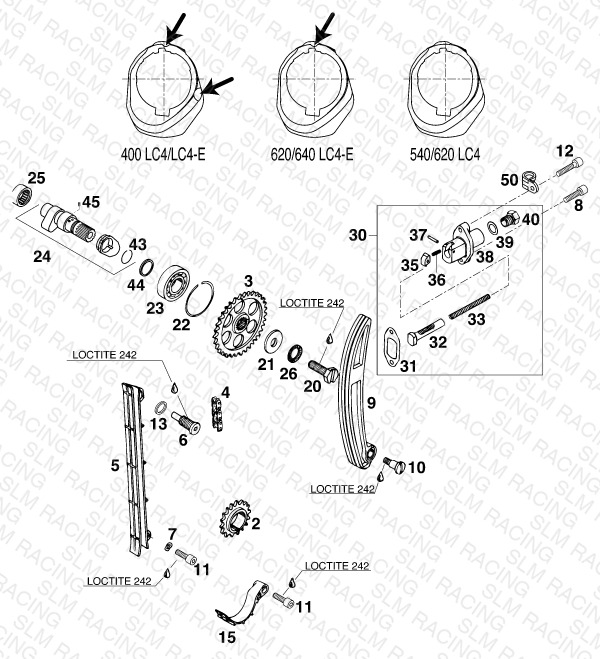

TIMING DRIVE
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 58036014000 TIMING GEAR 17-T | TIMING GEAR 17-T | 1 | — | Obsolete | View Details |
| 3 | 57636011000 CAMSHAFT GEAR 34-T ''02'' ' | CAMSHAFT GEAR 34-T ''02'' ' | 1 | — | Obsolete | View Details |
| 3 | 58336011001 CAMSHAFT GEAR 34-T ''01'' '94 | CAMSHAFT GEAR 34-T ''01'' '94 | 1 | — | Obsolete | View Details |
| 4 | 57636013000 TIMING CHAIN C107C / 98 LINKS | TIMING CHAIN C107C / 98 LINKS | 1 | — | Obsolete | View Details |
| 4 | 58036013000 TIMING CHAIN C107C / 100 LINKS | TIMING CHAIN C107C / 100 LINKS | 1 | $351.22 | Available | 1 |
| 5 | 57536001000 TIMING CHAIN GUIDE | TIMING CHAIN GUIDE | 1 | — | Obsolete | View Details |
| 5 | 58036001000 TIMING CHAIN GUIDE | TIMING CHAIN GUIDE | 1 | — | Obsolete | View Details |
| 6 | 58036009000 CHAIN GUIDE SCREW | CHAIN GUIDE SCREW | 1 | — | Obsolete | View Details |
| 7 | 0137060000 SPRING WASHER DIN0137-B 6 | SPRING WASHER DIN0137-B 6 | 6 | — | Obsolete | View Details |
| 8 | 0912060253 AH SCREW DIN0912-M 6X25 | AH SCREW DIN0912-M 6X25 | 6 | $2.99 | Available | 6 |
| 9 | 57536002000 TIMING CHAIN TENSIONER | TIMING CHAIN TENSIONER | 1 | — | Obsolete | View Details |
| 9 | 58036002000 TIMING CHAIN TENSIONER | TIMING CHAIN TENSIONER | 1 | — | Obsolete | View Details |
| 10 | 0923080120 FLAT HEAD SCR. M 8X12 | FLAT HEAD SCR. M 8X12 | 1 | — | Obsolete | View Details |
| 11 | 0912060208 AH SCREW DIN0912-M 6X20 SS | AH SCREW DIN0912-M 6X20 SS | 1 | $2.99 | Available | 1 |
| 12 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | $2.99 | Available | 4 |
| 13 | 58038022100 CU-SEAL RING 12 X 16 X 2 | CU-SEAL RING 12 X 16 X 2 | 1 | $2.99 | Available | 1 |
| 15 | 58336018000 SECURING GUIDE | SECURING GUIDE | 1 | — | Obsolete | View Details |
| 20 | 58336112000 DRIVING SCREW M10X25 | DRIVING SCREW M10X25 | 1 | — | Obsolete | View Details |
| 21 | 58036012000 STEEL WASHER 10 X 28 X 3 | STEEL WASHER 10 X 28 X 3 | 1 | — | Obsolete | View Details |
| 22 | 58036096000 CIRCLIP SB 42 | CIRCLIP SB 42 | 1 | $3.99 | Available | 1 |
| 23 | 0625060040 GROOVED BALL BEARING TMB004 | GROOVED BALL BEARING TMB004 | 1 | $30.13 | Available | 1 |
| 24 | 57636110044 CAMSHAFT CPL. 400 LC4/LC4-E | CAMSHAFT CPL. 400 LC4/LC4-E | 1 | — | Obsolete | View Details |
| 24 | 58336110044 CAMSHAFT CPL. 249/1 LC4-E | CAMSHAFT CPL. 249/1 LC4-E | 1 | $323.61 | Available | 1 |
| 24 | 58336110144 CAMSHAFT CPL. 540/620 LC4 | CAMSHAFT CPL. 540/620 LC4 | 1 | $306.12 | Available | 1 |
| 25 | 58036097000 NEEDLE BEARING BK 2012 | NEEDLE BEARING BK 2012 | 1 | $21.66 | Available | 1 |
| 26 | 36003014200 LOCKING WASHER 10MM | LOCKING WASHER 10MM | 1 | — | Obsolete | View Details |
| 30 | 58036003144 AUTOM.TENSIONER CPL. '88 | AUTOM.TENSIONER CPL. '88 | 1 | $351.88 | Available | 1 |
| 31 | 58036005100 TENSIONER GASKET 1,5 MM | TENSIONER GASKET 1,5 MM | 1 | $3.99 | Available | 1 |
| 32 | 58036004100 PRESSURE BOLT | PRESSURE BOLT | 1 | — | Obsolete | View Details |
| 33 | 58036006100 PRESSURE SPRING 0,9MM | PRESSURE SPRING 0,9MM | 1 | — | Obsolete | View Details |
| 35 | 58036007100 RATCHETING PAWL | RATCHETING PAWL | 1 | — | Obsolete | View Details |
| 36 | 58036007050 PRES.SPRING F.RATCHETING PAWL | PRES.SPRING F.RATCHETING PAWL | 1 | — | Obsolete | View Details |
| 37 | 0402031780 Needle roll.DIN5402 NRB 3X17.8 | Needle roll.DIN5402 NRB 3X17.8 | 1 | $1.99 | Available | 1 |
| 38 | 58036003100 TENSIONER CASE | TENSIONER CASE | 1 | — | Obsolete | View Details |
| 39 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 40 | 58036008100 PLUG M12X1,5 | PLUG M12X1,5 | 2 | $6.48 | Available | 2 |
| 43 | 0417200120 CIRCLIP WS20 | CIRCLIP WS20 | 1 | $2.99 | Available | 1 |
| 44 | 58336015000 STEPPED RING | STEPPED RING | 1 | — | Obsolete | View Details |
| 45 | 58336016052 SPRING FOR AUTO-DECOMPR. '95 | SPRING FOR AUTO-DECOMPR. '95 | 1 | — | Obsolete | View Details |
| 50 | 54211052000 CLAMP RSGU 24/15 | CLAMP RSGU 24/15 | 1 | $13.30 | Out of Stock | Notify Me |
