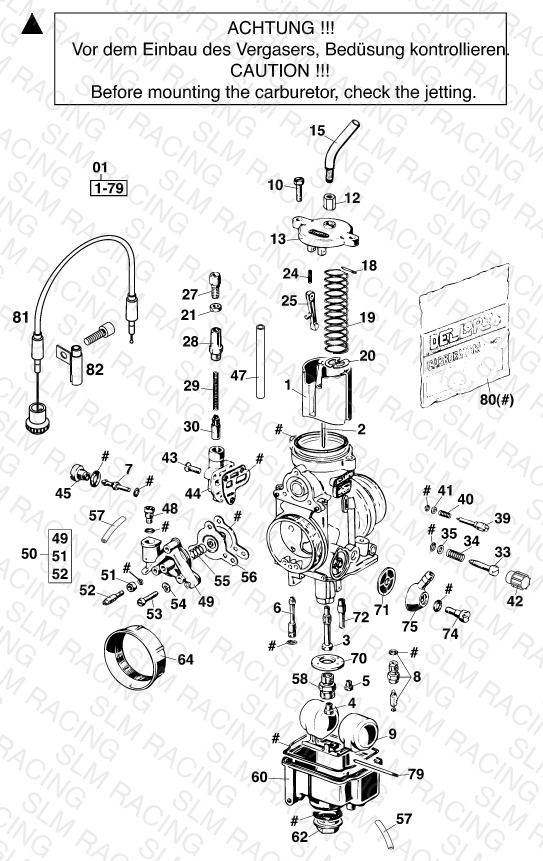

CARBURETOR
Parts (67)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 57231135000 THROTTLE VALVE 50/1 DM=42MM | THROTTLE VALVE 50/1 DM=42MM | 1 | — | Obsolete | View Details |
| 1 | 57631001044 CARBURETOR PHM 38 ND (100197) | CARBURETOR PHM 38 ND (100197) | 1 | — | Obsolete | View Details |
| 2 | 49031134011 JET NEEDLE K11 | JET NEEDLE K11 | — | — | Obsolete | View Details |
| 2 | 49031134032 JET NEEDLE K32 | JET NEEDLE K32 | 1 | — | Obsolete | View Details |
| 3 | 57031521265 NEEDLE JET 265 AB | NEEDLE JET 265 AB | 1 | — | Obsolete | View Details |
| 4 | 57031523135 MAIN JET 135 | MAIN JET 135 | — | — | Obsolete | View Details |
| 4 | 57031523140 MAIN JET 140 | MAIN JET 140 | — | — | Obsolete | View Details |
| 4 | 57031523142 MAIN JET 142 | MAIN JET 142 | — | — | Obsolete | View Details |
| 4 | 57031523145 MAIN JET 145 | MAIN JET 145 | 1 | $9.12 | Available | 1 |
| 4 | 57031523148 MAIN JET 148 | MAIN JET 148 | — | — | Obsolete | View Details |
| 4 | 57031523150 MAIN JET 150 | MAIN JET 150 | — | — | Obsolete | View Details |
| 4 | 57031523155 MAIN JET 155 | MAIN JET 155 | 1 | — | Obsolete | View Details |
| 4 | 57031523158 MAIN JET 158 | MAIN JET 158 | — | — | Obsolete | View Details |
| 5 | 15131123045 JET 45 | JET 45 | — | — | Obsolete | View Details |
| 5 | 15131123050 JET 50 | JET 50 | 1 | — | Obsolete | View Details |
| 5 | 15131123052 JET 52 | JET 52 | — | — | Obsolete | View Details |
| 5 | 15131123055 JET 55 | JET 55 | — | — | Obsolete | View Details |
| 6 | 57031551045 STARTING JET 45 | STARTING JET 45 | 1 | $12.97 | Out of Stock | Notify Me |
| 7 | 57031566033 ACCELERATING JET 33 | ACCELERATING JET 33 | 1 | — | Obsolete | View Details |
| 8 | 57231120300 NEEDLE VALVE 300 | NEEDLE VALVE 300 | 1 | $59.94 | Available | 1 |
| 9 | 57031509000 % FLOAT 8,5 GRAMME | % FLOAT 8,5 GRAMME | 1 | — | Obsolete | View Details |
| 9 | 58331509000 FLOAT | FLOAT | — | $49.38 | Out of Stock | Notify Me |
| 10 | 57031524000 HEXAGON NUT M 5X16 | HEXAGON NUT M 5X16 | 2 | — | Obsolete | View Details |
| 12 | 58031528000 SUPPORT BUSHING M6x0,75 WS=10 | SUPPORT BUSHING M6x0,75 WS=10 | 1 | — | Obsolete | View Details |
| 13 | 57231127000 CARBURETOR COVER | CARBURETOR COVER | 1 | — | Obsolete | View Details |
| 15 | 58431024000 TUBE F.CARBURETOR 400LC4-E '97 | TUBE F.CARBURETOR 400LC4-E '97 | 1 | — | Obsolete | View Details |
| 18 | 57031571000 * STUD 2,5X16 | * STUD 2,5X16 | 1 | — | Obsolete | View Details |
| 19 | 57031530000 SLIDING SPRING | SLIDING SPRING | 1 | — | Obsolete | View Details |
| 20 | 57031532000 RETAINING PLATE | RETAINING PLATE | 1 | — | Obsolete | View Details |
| 21 | 52031126000 HEXAGON NUT M 6X0,75 DIN0439 | HEXAGON NUT M 6X0,75 DIN0439 | 1 | $9.89 | Available | 1 |
| 24 | 57031570000 SPRING | SPRING | 1 | — | Obsolete | View Details |
| 25 | 57031569000 PUMP LEVER | PUMP LEVER | 1 | — | Obsolete | View Details |
| 27 | 57031525000 ADJUSTMENT SCREW M6X0,75 | ADJUSTMENT SCREW M6X0,75 | 1 | $6.15 | Available | 1 |
| 28 | 57231155000 PLUG | PLUG | 1 | — | Obsolete | View Details |
| 29 | 57231153000 SPRING | SPRING | 1 | — | Obsolete | View Details |
| 30 | 57031549000 STARTING DEVICE | STARTING DEVICE | 1 | — | Obsolete | View Details |
| 33 | 57031519000 ADJUSTMENT SCREW M5 | ADJUSTMENT SCREW M5 | 1 | $8.24 | Available | 1 |
| 34 | 52031116000 SPRING | SPRING | 1 | $4.99 | Available | 1 |
| 35 | 57031573000 WASHER 5,1 X 8 X 0,8 | WASHER 5,1 X 8 X 0,8 | 1 | $2.99 | Available | 1 |
| 39 | 57031517000 MIXTURE REGULAT.SCREW M7X0,75 | MIXTURE REGULAT.SCREW M7X0,75 | 1 | — | Obsolete | View Details |
| 40 | 57031515000 SPRING AIR ADJUST.SCREW | SPRING AIR ADJUST.SCREW | 1 | — | Obsolete | View Details |
| 41 | 57031572000 WASHER 3,3 X 5,8 X 0,5 | WASHER 3,3 X 5,8 X 0,5 | 1 | $2.99 | Available | 1 |
| 42 | 57031519100 KNURLED CAP PLASTIC | KNURLED CAP PLASTIC | 1 | — | Obsolete | View Details |
| 43 | 0964040143 OVAL HEAD SCREW DIN0964-M 4x14 | OVAL HEAD SCREW DIN0964-M 4x14 | 3 | — | Obsolete | View Details |
| 44 | 57231150100 START.DEVICE BODY 4S | START.DEVICE BODY 4S | 1 | — | Obsolete | View Details |
| 45 | 57031567000 JET HOLDER | JET HOLDER | 1 | — | Obsolete | View Details |
| 47 | 58331029048 * SLIDE STOP L=48MM | * SLIDE STOP L=48MM | — | — | Obsolete | View Details |
| 48 | 57031565000 BLEEDER VALVE | BLEEDER VALVE | 1 | — | Obsolete | View Details |
| 50 | 57231160044 * PUMP HOUSING CPL. | * PUMP HOUSING CPL. | 1 | — | Obsolete | View Details |
| 53 | 0084040203 CYL.SCREW DIN0084-M 4X20 A | CYL.SCREW DIN0084-M 4X20 A | 2 | $1.99 | Available | 2 |
| 54 | 0137040003 * SPRING WASHER DIN0137-B 4 | * SPRING WASHER DIN0137-B 4 | 2 | — | Obsolete | View Details |
| 55 | 57031559000 * SPRING | * SPRING | 1 | — | Obsolete | View Details |
| 56 | 57031557000 DIAPHRAGM | DIAPHRAGM | 1 | — | Obsolete | View Details |
| 57 | 52031137001 PVC-HOSE 3X5MM | PVC-HOSE 3X5MM | — | $6.15 | Available | 1 |
| 58 | 57031522000 MAIN JET HOLDER | MAIN JET HOLDER | 1 | — | Obsolete | View Details |
| 60 | 57031511100 FLOAT CHAMBER WITH RUN OVER T. | FLOAT CHAMBER WITH RUN OVER T. | 1 | — | Obsolete | View Details |
| 62 | 57031514000 PLUG M12X1 | PLUG M12X1 | 1 | — | Obsolete | View Details |
| 64 | 57731040000 INTAKE TRUMPET FOR PHM 38 ND | INTAKE TRUMPET FOR PHM 38 ND | 1 | — | Obsolete | View Details |
| 70 | 50131174000 COVER | COVER | 1 | — | Obsolete | View Details |
| 71 | 15131112000 FUEL FILTER | FUEL FILTER | 1 | $6.15 | Available | 1 |
| 72 | 57031556000 REBOUND VALVE | REBOUND VALVE | 1 | — | Obsolete | View Details |
| 74 | 0933060163 HH SCREW DIN0933-M 6X16 | HH SCREW DIN0933-M 6X16 | 1 | — | Obsolete | View Details |
| 75 | 57031513000 HOSE CONNECTOR | HOSE CONNECTOR | 1 | — | Obsolete | View Details |
| 79 | 57031508000 STUD 2 X 47 | STUD 2 X 47 | 1 | — | Obsolete | View Details |
| 80 | 57731099000 GASKET SET PHM 38 ND | GASKET SET PHM 38 ND | 1 | — | Obsolete | View Details |
| 81 | 58302095200 CHOKE CABLE CPL. SX,SXC,SC'97 | CHOKE CABLE CPL. SX,SXC,SC'97 | 1 | — | Obsolete | View Details |
| 82 | 58302095251 SLEEVE FOR CHOKE CABLE | SLEEVE FOR CHOKE CABLE | 1 | — | Obsolete | View Details |
