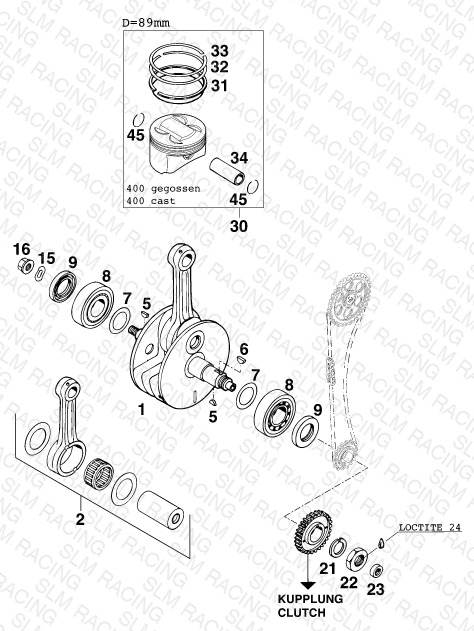

CRANKSHAFT, PISTON
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 57630018000 CRANKSHAFT CPL. 400 LC4 '97 | CRANKSHAFT CPL. 400 LC4 '97 | 1 | — | Obsolete | View Details |
| 2 | 58030015044 CONNECTING ROD REPAIR SET LC4 | CONNECTING ROD REPAIR SET LC4 | 1 | — | Obsolete | View Details |
| 5 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | $2.99 | Available | 1 |
| 6 | 6946005 WOODRUFF KEY 5X6,5 HARDED | WOODRUFF KEY 5X6,5 HARDED | 1 | $2.99 | Available | 1 |
| 7 | 56030081000 THRUST WASHER 30,5X45X0,10 | THRUST WASHER 30,5X45X0,10 | — | $1.99 | Available | 1 |
| 7 | 56030081100 THRUST WASHER 30,7X47X0,15 | THRUST WASHER 30,7X47X0,15 | — | $2.99 | Available | 1 |
| 7 | 56030081200 THRUST WASHER 30,5X45X0,30 | THRUST WASHER 30,5X45X0,30 | — | $2.99 | Available | 1 |
| 8 | 58030082000 CYL.ROLLER BEARING NJ 306 C3 | CYL.ROLLER BEARING NJ 306 C3 | 1 | $135.62 | Available | 1 |
| 9 | 0760304771 SHAFT SEAL RING 30X47X7 BSL | SHAFT SEAL RING 30X47X7 BSL | 1 | $23.97 | Available | 1 |
| 15 | 0137120000 SPRING WASHER DIN0137-B12 | SPRING WASHER DIN0137-B12 | 1 | $1.99 | Backorder — Restocking | 1 |
| 16 | 51030028100 COLLAR NUT M12X1 LEFT WS=17 | COLLAR NUT M12X1 LEFT WS=17 | 1 | $13.41 | Available | 1 |
| 21 | 58030019000 LOCKING RING VSK 20 | LOCKING RING VSK 20 | 1 | — | Obsolete | View Details |
| 22 | 0936200155 HEXAGON NUT DIN0936-M20X1,5 | HEXAGON NUT DIN0936-M20X1,5 | 1 | — | Obsolete | View Details |
| 23 | 0760122270 SHAFT SEAL RING 12 X 22 X 7 B | SHAFT SEAL RING 12 X 22 X 7 B | 1 | $18.58 | Available | 1 |
| 30 | 57730007000 I PISTON I 89MM CPL. CAST '99 | PISTON I 89MM CPL. CAST '99 | 1 | — | Obsolete | View Details |
| 30 | 57730007000 II PISTON II 89MM CPL. CAST '99 | PISTON II 89MM CPL. CAST '99 | 1 | — | Obsolete | View Details |
| 31 | 57530031000 OIL SCRAPER RING 89MM | OIL SCRAPER RING 89MM | 1 | — | Obsolete | View Details |
| 32 | 57530132000 TAPERED COMPR.PISTON RING 89MM | TAPERED COMPR.PISTON RING 89MM | 1 | — | Obsolete | View Details |
| 33 | 57530032000 RECTANGULAR RING 89MM | RECTANGULAR RING 89MM | 1 | $54.11 | Available | 1 |
| 34 | 57730033000 * PISTON BOLT 22X13X54,2 ' | * PISTON BOLT 22X13X54,2 ' | 1 | — | Obsolete | View Details |
| 45 | 58030074100 CIRCLIP C 22 X 1,5 | CIRCLIP C 22 X 1,5 | 2 | — | Obsolete | View Details |
