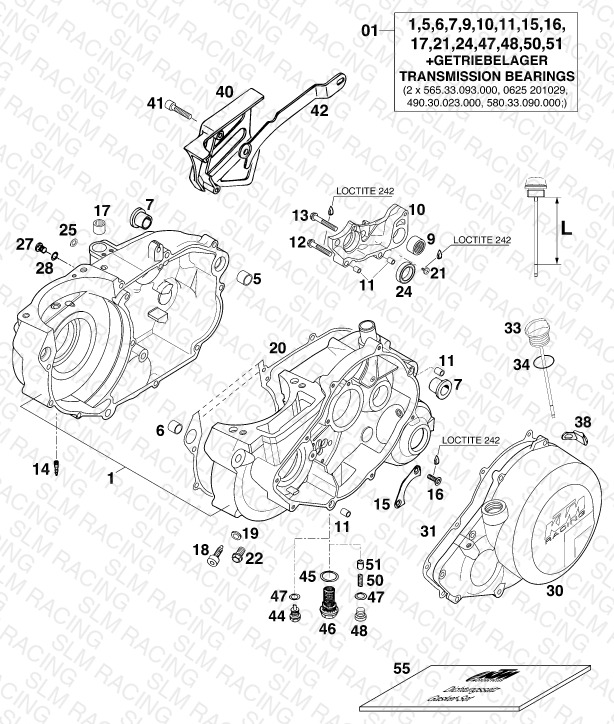

ENGINE CASE
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 5 | 50130027000 DOWEL 19 X15,1X12 | DOWEL 19 X15,1X12 | 1 | — | Check availability | View Details |
| 6 | 51030026100 DOWEL 17 X 13 X 12 | DOWEL 17 X 13 X 12 | 1 | — | Check availability | |
| 7 | 50130010000 CRANK CASE BUSH | CRANK CASE BUSH | 2 | — | Check availability | View Details |
| 9 | 58033097000 NEEDLE BEARING HK 2216 | NEEDLE BEARING HK 2216 | 4 | — | Check availability | |
| 10 | 58330011000 SHIFT MECHANISM SUPPORT LC4'94 | SHIFT MECHANISM SUPPORT LC4'94 | 1 | — | Check availability | View Details |
| 11 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | — | Check availability | View Details |
| 12 | 0015060353 HH COLLAR SCREW M 6X35 WS=8 | HH COLLAR SCREW M 6X35 WS=8 | — | — | Check availability | View Details |
| 13 | 0015060403 HH COLLAR SCREW M 6X40 WS=8 | HH COLLAR SCREW M 6X40 WS=8 | 1 | — | Check availability | View Details |
| 14 | 49130450050 TUBE LW 3 | TUBE LW 3 | 1 | — | Check availability | |
| 15 | 56530017000 RETAINING PLATE | RETAINING PLATE | 1 | — | Check availability | View Details |
| 16 | 0991060163 FLAT HEAD SCR. DIN7991-M 6X16 | FLAT HEAD SCR. DIN7991-M 6X16 | 5 | — | Check availability | |
| 17 | 50332095000 NEEDLE BEARING HK 1212 | NEEDLE BEARING HK 1212 | 2 | — | Check availability | View Details |
| 18 | 58030080000 LOCATING SCREW M8 L=23 | LOCATING SCREW M8 L=23 | 1 | — | Check availability | |
| 19 | 58038032000 CU-SEAL RING DIN7603- 8X12X1 | CU-SEAL RING DIN7603- 8X12X1 | 3 | — | Check availability | |
| 20 | 58330039100 ENGINE CASE GASKET SX,SXC '98 | ENGINE CASE GASKET SX,SXC '98 | 1 | — | Check availability | View Details |
| 21 | 0985050103 OVAL HEAD SCR. DIN7985-M 5X10 | OVAL HEAD SCR. DIN7985-M 5X10 | 1 | — | Check availability | |
| 22 | 0015080103 HH COLLAR SCREW M 8X10 WS=10 | HH COLLAR SCREW M 8X10 WS=10 | — | — | Check availability | View Details |
| 24 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | — | Check availability | |
| 25 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability | |
| 27 | 49030029000 OIL DRAIN PLUG M10X1,5 AH-WS=6 | OIL DRAIN PLUG M10X1,5 AH-WS=6 | — | — | Check availability | |
| 28 | 58038032010 CU-SEAL RING DIN7603-10X14X1 | CU-SEAL RING DIN7603-10X14X1 | 7 | — | Check availability | |
| 30 | 58330001400 CLUTCH COVER SX'97 | CLUTCH COVER SX'97 | 1 | — | Check availability | |
| 31 | 58330025400 CLUTCH COVER GASKET SX'97 | CLUTCH COVER GASKET SX'97 | 1 | — | Check availability | View Details |
| 33 | 58330020144 OIL DIPSTICK CPL. L=93MM '96 | OIL DIPSTICK CPL. L=93MM '96 | 1 | — | Check availability | View Details |
| 34 | 0770160030 O-RING 16,00X3,00 NBR 70 | O-RING 16,00X3,00 NBR 70 | 1 | — | Check availability | |
| 38 | 58333041000 BUMP RUBBER | BUMP RUBBER | 1 | — | Check availability | View Details |
| 40 | 58030050600 CHAIN COVER BLACK ' | CHAIN COVER BLACK ' | 1 | — | Check availability | |
| 41 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | — | Check availability | |
| 42 | 58030047515 CHAIN DAMPER SHEET LC4 '90 | CHAIN DAMPER SHEET LC4 '90 | 1 | — | Check availability | View Details |
| 44 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | — | Check availability | View Details |
| 45 | 58038017100 CU-SEAL RING DIN7603-22X27X2 | CU-SEAL RING DIN7603-22X27X2 | 1 | — | Check availability | |
| 47 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | — | Check availability | |
| 48 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | — | Check availability | |
| 50 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | — | Check availability | |
| 51 | 58038028000 VALVE PISTON D=10MM | VALVE PISTON D=10MM | 1 | — | Check availability | |
| 55 | 58330099300 GASKET SET 400-620 SX,SXC '98 | GASKET SET 400-620 SX,SXC '98 | 1 | — | Check availability | View Details |
