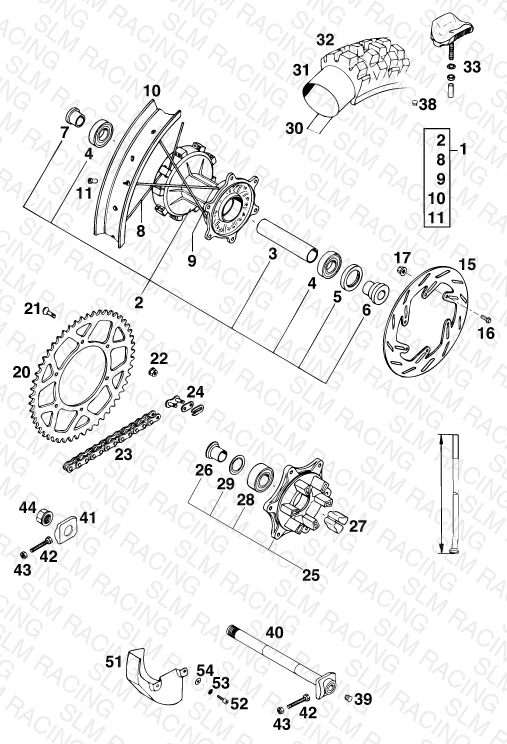

REAR WHEEL
Parts (49)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58310001044 REAR WHEEL 2,50X18'' DID | REAR WHEEL 2,50X18'' DID | 1 | — | Check availability | View Details |
| 2 | 58310010044 | 1 | — | Check availability | ||
| 3 | 54610411100 BEARING SPACER TUBE L=98,3MM | BEARING SPACER TUBE L=98,3MM | 1 | — | Check availability | |
| 4 | 0625062052 Grooved ball bear. 6205-2RSHC3 | Grooved ball bear. 6205-2RSHC3 | 2 | — | Check availability | |
| 5 | 0760325272 SHAFT SEAL RING 32X52X7 B | SHAFT SEAL RING 32X52X7 B | 1 | — | Check availability | |
| 6 | 54610016000 BUSHING FOR HUB | BUSHING FOR HUB | 2 | — | Check availability | View Details |
| 7 | 54610416300 BUSHING FOR REAR DAMPED HUB | BUSHING FOR REAR DAMPED HUB | 1 | — | Check availability | |
| 8 | 54610471000 SPOKE M5X223-10G 18'' | SPOKE M5X223-10G 18'' | 18 | — | Check availability | |
| 9 | 56510171600 SPOKE M5X198-10G 18'' | SPOKE M5X198-10G 18'' | 18 | — | Check availability | |
| 10 | 58010470100 REAR RIM 2,50X18'' DID | REAR RIM 2,50X18'' DID | 1 | — | Check availability | View Details |
| 11 | 56509072000 STEEL NIPPLE M5 | STEEL NIPPLE M5 | 36 | — | Check availability | |
| 15 | 58010060600 REAR BRAKE DISK 220MM COUNTERS | REAR BRAKE DISK 220MM COUNTERS | 1 | — | Check availability | |
| 16 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | — | Check availability | View Details |
| 17 | 56509064000 SELF LOCKING NUT M6 | SELF LOCKING NUT M6 | 1 | — | Check availability | |
| 20 | 54610051045 REAR SPROCKET 45 T | REAR SPROCKET 45 T | 1 | — | Check availability | |
| 20 | 54610051048 REAR SPROCKET 48 T | REAR SPROCKET 48 T | 1 | — | Check availability | |
| 20 | 54610051050 REAR SPROCKET 50 T | REAR SPROCKET 50 T | 1 | — | Check availability | |
| 20 | 54610051052 REAR SPROCKET 52 T | REAR SPROCKET 52 T | — | — | Check availability | |
| 20 | 58310051038 REAR SPROCKET 38-T | REAR SPROCKET 38-T | — | — | Check availability | |
| 20 | 58310151040 REAR SPROCKET 40-T | REAR SPROCKET 40-T | — | — | Check availability | |
| 21 | 54510052000 SPROCKET SCREW-AH M 8X26 | SPROCKET SCREW-AH M 8X26 | 6 | — | Check availability | |
| 22 | 54310086000 | 2 | — | Check availability | ||
| 23 | 53010065001 * O-RING CHAIN 5/8X1/4 PER MET | * O-RING CHAIN 5/8X1/4 PER MET | — | — | Check availability | |
| 23 | 53010065118 O-RING CHAIN 5/8X1/4'' | O-RING CHAIN 5/8X1/4'' | 1 | — | Check availability | |
| 24 | 53010066000 MASTER LINK 5/8X1/4'' O-RING | MASTER LINK 5/8X1/4'' O-RING | 1 | — | Check availability | |
| 25 | 58310050044 SPROCKET SUPPORT CPL. | SPROCKET SUPPORT CPL. | 1 | — | Check availability | View Details |
| 26 | 54610417300 BUSH. F.SPROCKETSUPPORT L=25MM | BUSH. F.SPROCKETSUPPORT L=25MM | 1 | — | Check availability | |
| 27 | 54610459000 Rubber damping block 91 | Rubber damping block 91 | 6 | — | Check availability | |
| 28 | 0625032057 GR. BALL BEARING 3205B-2RSRTNG | GR. BALL BEARING 3205B-2RSRTNG | 1 | — | Check availability | View Details |
| 29 | 54610018000 SEAL WASHER 3205 AV | SEAL WASHER 3205 AV | 1 | — | Check availability | View Details |
| 30 | 52010073000 | 1 | — | Check availability | ||
| 31 | 54010075000 HOSE 4.00/4.50/120/130-18'' | HOSE 4.00/4.50/120/130-18'' | 1 | — | Check availability | |
| 32 | 50210074500 * TYRE 140/80-18" 70R MCE | * TYRE 140/80-18" 70R MCE | 1 | — | Check availability | |
| 32 | 57510074000 * TIRE 120/80-18" 62R MT 70 | * TIRE 120/80-18" 62R MT 70 | 1 | — | Check availability | |
| 32 | 58010074100 * TIRE 4.50-18" NHS 70M MT 16 | * TIRE 4.50-18" NHS 70M MT 16 | 1 | — | Check availability | |
| 32 | 58310074000 TIRE 130/80-18" 66R MT 70 | TIRE 130/80-18" 66R MT 70 | — | — | Check availability | |
| 32 | 58310074200 | 1 | — | Check availability | ||
| 33 | 56410100100 RIM LOCK VM4 (2.50'') | RIM LOCK VM4 (2.50'') | 1 | — | Check availability | |
| 38 | 55003135000 PLUG FOR RIM | PLUG FOR RIM | — | — | Check availability | |
| 39 | 50210086000 Plug SFL16 | Plug SFL16 | — | — | Check availability | |
| 40 | 50210085044 WHEEL SPINDLE REAR CPLL=264MM | WHEEL SPINDLE REAR CPLL=264MM | 1 | — | Check availability | View Details |
| 41 | 56510084100 CHAIN TENSIONER '95 | CHAIN TENSIONER '95 | 1 | — | Check availability | View Details |
| 42 | 50203030090 HH SCREW M8X40 WS=10 | HH SCREW M8X40 WS=10 | 2 | — | Check availability | |
| 43 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | — | Check availability | |
| 44 | 54310099000 HEXAGON NUT M20X1,5 | HEXAGON NUT M20X1,5 | 1 | — | Check availability | |
| 51 | 58113081000 COVER BRAKE DISC REAR | COVER BRAKE DISC REAR | 1 | — | Check availability | |
| 52 | 0912060123 AH SCREW DIN0912-M 6X12 | AH SCREW DIN0912-M 6X12 | 1 | — | Check availability | View Details |
| 53 | 0797060003 TOOTH LOCK WASH. DIN6797-A 6,4 | TOOTH LOCK WASH. DIN6797-A 6,4 | 1 | — | Check availability | |
| 54 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 2 | — | Check availability |
