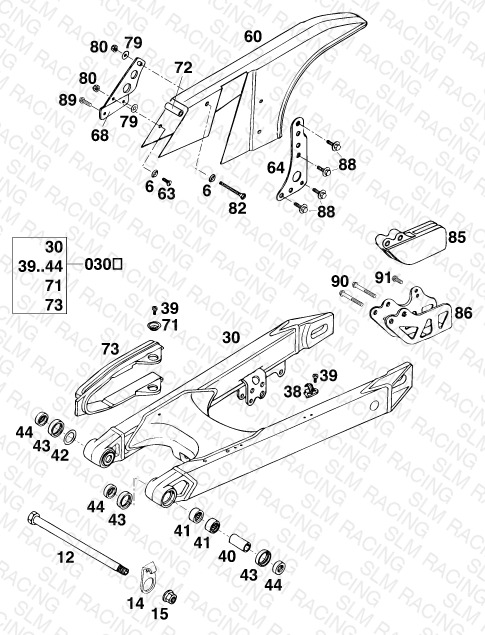

SWING ARM
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 6 | 40006006000 WASHER 6MM | WASHER 6MM | 0 | — | Check availability | |
| 12 | 54603014000 | 1 | — | Check availability | ||
| 14 | 50230211000 BRAKE HOSE GUIDE '89 | BRAKE HOSE GUIDE '89 | 1 | — | Check availability | View Details |
| 15 | 54603015000 Self locking nut M14x1.5 WS19 | Self locking nut M14x1.5 WS19 | 1 | — | Check availability | |
| 30 | 58303030100 % SWINGARM LOOSE 570MM "4" '94 | % SWINGARM LOOSE 570MM "4" '94 | 1 | — | Check availability | |
| 30 | 58303030144 SWINGARM CPL. 570MM ''4'' '94 | SWINGARM CPL. 570MM ''4'' '94 | 1 | — | Check availability | |
| 30 | 58303130100 SWINGARM LOOSE 570MM LC4'95 | SWINGARM LOOSE 570MM LC4'95 | 1 | — | Check availability | View Details |
| 30 | 58303130144 % SWINGARM CPL. 570MM LC4'95 | % SWINGARM CPL. 570MM LC4'95 | 1 | — | Check availability | |
| 38 | 54611076000 RETAINING CLAMP FOR BRAKE HOSE | RETAINING CLAMP FOR BRAKE HOSE | 2 | — | Check availability | |
| 39 | 0010050103 SPECIAL SCREW M 5,0X10 | SPECIAL SCREW M 5,0X10 | 4 | — | Check availability | |
| 40 | 50203081700 BUSHING SLEEVE 15X20X38,75 | BUSHING SLEEVE 15X20X38,75 | 2 | — | Check availability | |
| 41 | 50203097000 NEEDLE BUSH HK 2012 | NEEDLE BUSH HK 2012 | 4 | — | Check availability | |
| 42 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | — | Check availability | View Details |
| 43 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | — | Check availability | |
| 44 | 54603090000 BUCKET F.SHAFTSEALRING 15X25X9 | BUCKET F.SHAFTSEALRING 15X25X9 | 4 | — | Check availability | |
| 60 | 50207060000 CHAIN GUARD '87 | CHAIN GUARD '87 | 1 | — | Check availability | View Details |
| 64 | 54407064000 RETAINING PLATE FOR CHAINGUARD | RETAINING PLATE FOR CHAINGUARD | 1 | — | Check availability | |
| 68 | 50207068000 RETAINING PLATE | RETAINING PLATE | 1 | — | Check availability | |
| 71 | 72210079000 BUCKET | BUCKET | 2 | — | Check availability | View Details |
| 72 | 50107072100 SPACER L=36MM | SPACER L=36MM | 1 | — | Check availability | |
| 73 | 50207073000 * CHAIN SLIDING GUARD '92 | * CHAIN SLIDING GUARD '92 | 1 | — | Check availability | |
| 79 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 0 | — | Check availability | |
| 80 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 0 | — | Check availability | |
| 82 | 0963060553 * FLAT HEAD SCREW DIN963 M6x55 | * FLAT HEAD SCREW DIN963 M6x55 | 1 | — | Check availability | |
| 85 | 54607066100 CHAIN GUIDE REAR '94 | CHAIN GUIDE REAR '94 | 1 | — | Check availability | |
| 86 | 50207070000 RETAINING PLATE CHAIN GUIDE' | RETAINING PLATE CHAIN GUIDE' | 1 | — | Check availability | |
| 88 | 0014060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 4 | — | Check availability | |
| 89 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 2 | — | Check availability | View Details |
| 90 | 0015060503 HH COLLAR SCREW M 6X50 WS=8 | HH COLLAR SCREW M 6X50 WS=8 | 2 | — | Check availability | View Details |
| 91 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 1 | — | Check availability | View Details |
