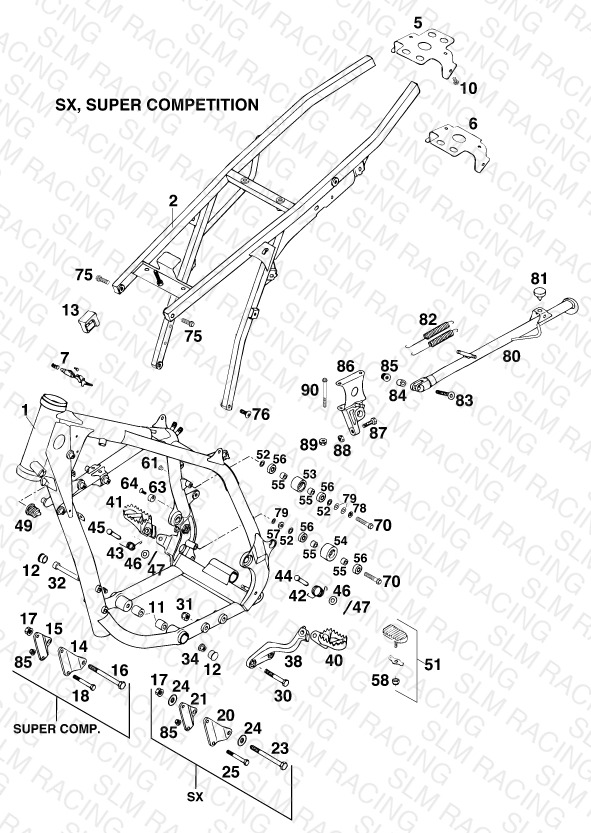

FRAME
Parts (59)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58303001300 FRAME SX 4-STROKE 50MM '96 | FRAME SX 4-STROKE 50MM '96 | 1 | — | Check availability | |
| 2 | 58303102300 % SUB FRAME CPL. ALU LC4'95 | % SUB FRAME CPL. ALU LC4'95 | 1 | — | Check availability | |
| 5 | 58303002045 BUSHING EXC-NUMBERPLATECARRIER | BUSHING EXC-NUMBERPLATECARRIER | 1 | — | Check availability | |
| 6 | 58303002145 BUSHING EGS-NUMBERPLATECARRIER | BUSHING EGS-NUMBERPLATECARRIER | 1 | — | Check availability | |
| 7 | 44003007000 STEERING HEAD LOCK | STEERING HEAD LOCK | 1 | — | Check availability | |
| 10 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 | HH COLLAR SCREW M 6X12 WS=8 | 3 | — | Check availability | View Details |
| 11 | 58003012000 SPACER ROLLER 10,3X20X22 | SPACER ROLLER 10,3X20X22 | 2 | — | Check availability | View Details |
| 12 | 71001012000 PVC CAP D=22MM | PVC CAP D=22MM | 2 | — | Check availability | View Details |
| 13 | 58307015000 TANK SUPPORT '93 | TANK SUPPORT '93 | 2 | — | Check availability | View Details |
| 14 | 58003055500 ENGINE SUPPORT L/S STEEL '90 | ENGINE SUPPORT L/S STEEL '90 | 1 | — | Check availability | |
| 15 | 58003155500 ENGINE SUPPORT R/S STEEL '90 | ENGINE SUPPORT R/S STEEL '90 | 1 | — | Check availability | |
| 16 | 0931101103 HH SCREW DIN0931-M10X110 | HH SCREW DIN0931-M10X110 | 1 | — | Check availability | |
| 17 | 49009082000 flanged hex nut DIN 6927 M10 W | flanged hex nut DIN 6927 M10 W | 1 | — | Check availability | |
| 18 | 0931080753 * HH SCREW DIN931 M8x75 | * HH SCREW DIN931 M8x75 | 1 | — | Check availability | |
| 20 | 58003055600 ENGINE SUPPORT L/S ALU SX | ENGINE SUPPORT L/S ALU SX | 1 | — | Check availability | |
| 21 | 58003155600 * ENGINE SUPPORT R/S ALU SX | * ENGINE SUPPORT R/S ALU SX | 1 | — | Check availability | |
| 23 | 0931101203 HH SCREW DIN0931-M10X120 | HH SCREW DIN0931-M10X120 | 1 | — | Check availability | |
| 24 | 31004001100 WASHER 10,5 X 21 X 3 | WASHER 10,5 X 21 X 3 | 1 | — | Check availability | View Details |
| 25 | 0931080803 HH SCREW DIN0931-M 8X80 | HH SCREW DIN0931-M 8X80 | 2 | — | Check availability | View Details |
| 30 | 0931100603 HH SCREW DIN0931-M10X60 | HH SCREW DIN0931-M10X60 | 2 | — | Check availability | |
| 31 | 0985100003 SELF LOCKING NUT DIN0985-M10 | SELF LOCKING NUT DIN0985-M10 | 2 | — | Check availability | |
| 32 | 0912101603 AH SCREW DIN0912-M10X160 | AH SCREW DIN0912-M10X160 | 1 | — | Check availability | |
| 34 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | — | Check availability | View Details |
| 38 | 58303038000 FOOTREST BRACKET L/S '93 | FOOTREST BRACKET L/S '93 | 1 | — | Check availability | View Details |
| 40 | 58303040000 FOOTREST L/S ' | FOOTREST L/S ' | 1 | — | Check availability | View Details |
| 41 | 5460314000019 FOOTREST R/S '93 | FOOTREST R/S '93 | 1 | — | Check availability | |
| 42 | 58303041000 FOOTREST SPRING L/S '93 | FOOTREST SPRING L/S '93 | 1 | — | Check availability | View Details |
| 43 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | — | Check availability | |
| 44 | 58303044000 BOLT FOR FOOTREST | BOLT FOR FOOTREST | 1 | — | Check availability | View Details |
| 45 | 54603044000 BOLT FOR FOOTREST 9,8 X 50 | BOLT FOR FOOTREST 9,8 X 50 | 2 | — | Check availability | View Details |
| 46 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | — | Check availability | |
| 47 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | — | Check availability | View Details |
| 49 | 42007049000 PLASTIC CAP | PLASTIC CAP | — | — | Check availability | View Details |
| 52 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 2 | — | Check availability | |
| 53 | 50203053000 CHAIN ROLL D=30MM | CHAIN ROLL D=30MM | 1 | — | Check availability | |
| 54 | 50203053100 CHAIN ROLL D=35MM | CHAIN ROLL D=35MM | 1 | — | Check availability | |
| 55 | 74003021000 BUSHING 8.2 X 12 X 6 | BUSHING 8.2 X 12 X 6 | 1 | — | Check availability | |
| 56 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | — | Check availability | |
| 57 | 71004038000 WASHER 8,4 X 17 X 3 | WASHER 8,4 X 17 X 3 | 2 | — | Check availability | |
| 58 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | — | Check availability | |
| 61 | 54403135000 PLASTIC CAP SFL10 | PLASTIC CAP SFL10 | 1 | — | Check availability | |
| 63 | 58303063000 BRAKE LEVER STOP '93 | BRAKE LEVER STOP '93 | 1 | — | Check availability | |
| 64 | 0991060203 FLAT H.SCREW DIN7991-M6X20 | FLAT H.SCREW DIN7991-M6X20 | 6 | — | Check availability | View Details |
| 70 | 0015080403 HH COLLAR SCREW M 8X40 WS=10 | HH COLLAR SCREW M 8X40 WS=10 | 4 | — | Check availability | View Details |
| 75 | 0015080253 HH COLLAR SCREW M 8X25 WS=10 | HH COLLAR SCREW M 8X25 WS=10 | 8 | — | Check availability | View Details |
| 76 | 54510052000 SPROCKET SCREW-AH M 8X26 | SPROCKET SCREW-AH M 8X26 | 6 | — | Check availability | |
| 78 | 0797080003 TOOTHLOCK WASHER DIN6797-J 8,4 | TOOTHLOCK WASHER DIN6797-J 8,4 | 1 | — | Check availability | |
| 79 | 0125080003 washer DIN 125 A -8.4 | washer DIN 125 A -8.4 | 1 | — | Check availability | |
| 80 | 54503023100 % SIDE STAND '89 | % SIDE STAND '89 | 1 | — | Check availability | View Details |
| 81 | 51007069100 RUBBER BUFFER | RUBBER BUFFER | 1 | — | Check availability | View Details |
| 82 | 51003021000 SIDESTAND SPRING LONG | SIDESTAND SPRING LONG | 1 | — | Check availability | |
| 83 | 0991080353 FLAT HEAD SCREW DIN7991-M 8X35 | FLAT HEAD SCREW DIN7991-M 8X35 | 1 | — | Check availability | View Details |
| 84 | 57103225000 BUSHING 8,2 X 12 X 10 | BUSHING 8,2 X 12 X 10 | 1 | — | Check availability | |
| 85 | 54310086000 | 2 | — | Check availability | ||
| 86 | 5020302610019 * LEVER HOLDER SIDE STAND '93 | * LEVER HOLDER SIDE STAND '93 | 1 | — | Check availability | |
| 87 | 0933080253 HH SCREW DIN0933-M 8X25 | HH SCREW DIN0933-M 8X25 | 2 | — | Check availability | |
| 88 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | — | Check availability | |
| 89 | 56509064000 SELF LOCKING NUT M6 | SELF LOCKING NUT M6 | 1 | — | Check availability | |
| 90 | 0015060703 HH COLLAR SCREW M 6X70 WS=8 | HH COLLAR SCREW M 6X70 WS=8 | 4 | — | Check availability | View Details |
