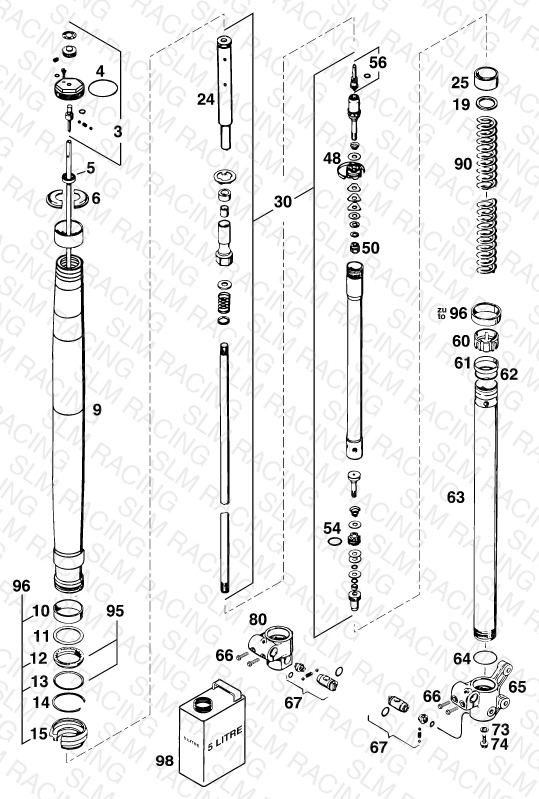

FRONT FORK DISASSEMBLED
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 3 | 57601036044 SCREW CAP CPL.IBS '94 | SCREW CAP CPL.IBS '94 | 2 | — | Obsolete | View Details |
| 4 | 0770430030 O-RING 43,00X3,00 | O-RING 43,00X3,00 | 2 | — | Obsolete | View Details |
| 5 | 54501051000 * RUBBER GASKET 14,1X22X4 | * RUBBER GASKET 14,1X22X4 | 2 | — | Obsolete | View Details |
| 6 | 54501050000 % KEY HALF | % KEY HALF | 4 | — | Obsolete | View Details |
| 9 | 57601004000 * OUTER TUBE L=606MM ' | * OUTER TUBE L=606MM ' | 2 | — | Obsolete | View Details |
| 10 | 57501026000 GUIDE BUSHING 40 X 44 X 20-1 | GUIDE BUSHING 40 X 44 X 20-1 | 2 | — | Obsolete | View Details |
| 11 | 56401027000 RING 42X49,2X1,5 | RING 42X49,2X1,5 | 2 | — | Obsolete | View Details |
| 12 | 58001805000 SHAFT SEAL RING 40X49,5X9LF | SHAFT SEAL RING 40X49,5X9LF | 2 | — | Obsolete | View Details |
| 13 | 56401127000 RING 49,5X45X1 | RING 49,5X45X1 | 2 | — | Obsolete | View Details |
| 14 | 56401029000 SEEGER LOCK RING SB50 | SEEGER LOCK RING SB50 | 2 | — | Obsolete | View Details |
| 15 | 56401025100 DUST BELLOWS D40 ' | DUST BELLOWS D40 ' | 2 | — | Obsolete | View Details |
| 19 | 54501019000 WASHER 24,5X34X2 | WASHER 24,5X34X2 | 2 | — | Obsolete | View Details |
| 24 | 56501457244 HYDROSTOP CPL IBS L=227,5 MM | HYDROSTOP CPL IBS L=227,5 MM | 2 | — | Obsolete | View Details |
| 25 | 56401022000 * PRELOAD BUSHING 25X34X5 | * PRELOAD BUSHING 25X34X5 | — | — | Obsolete | View Details |
| 25 | 56401022100 % PRELOAD BUSHING 25X34X10 | % PRELOAD BUSHING 25X34X10 | 2 | — | Obsolete | View Details |
| 25 | 56401022200 * PRELOAD BUSHING 25X34X2,5 | * PRELOAD BUSHING 25X34X2,5 | — | — | Obsolete | View Details |
| 30 | 57601030244 CARTRIDGE CPL. L/S K4T95K | CARTRIDGE CPL. L/S K4T95K | 1 | — | Obsolete | View Details |
| 30 | 57601130244 * CARTRIDGE CPL. R/S K4T95K | * CARTRIDGE CPL. R/S K4T95K | 1 | — | Obsolete | View Details |
| 30 | 58301030444 CARTRIDGE CPL. L/S K4T95 L | CARTRIDGE CPL. L/S K4T95 L | 1 | — | Obsolete | View Details |
| 30 | 58301130444 * CARTRIDGE CPL. R/S K4T95L | * CARTRIDGE CPL. R/S K4T95L | 1 | — | Obsolete | View Details |
| 48 | 54501070000 * PISTON RING 4X1X62 | * PISTON RING 4X1X62 | 2 | — | Obsolete | View Details |
| 50 | 54501072000 * HEX.NUT M6X0,5 | * HEX.NUT M6X0,5 | 2 | — | Obsolete | View Details |
| 54 | 0770020160 O-RING 15,60X1,78 | O-RING 15,60X1,78 | 2 | — | Obsolete | View Details |
| 56 | 56501467244 * ADJUSTMENT SCREW CPL IBS '93 | * ADJUSTMENT SCREW CPL IBS '93 | 2 | — | Obsolete | View Details |
| 60 | 54501077000 BUSHING | BUSHING | 2 | — | Obsolete | View Details |
| 61 | 54501045000 ANILLO DE RODAMIENTO 42,8X13 | ANILLO DE RODAMIENTO 42,8X13 | 2 | — | Obsolete | View Details |
| 62 | 54501046000 % RING 39X42X1 | % RING 39X42X1 | 2 | — | Obsolete | View Details |
| 63 | 54501003300 % INNER TUBE L=625MM "0618Q712 | % INNER TUBE L=625MM "0618Q712 | 2 | — | Obsolete | View Details |
| 63 | 57601003200 INNER TUBE L=605MM | INNER TUBE L=605MM | 2 | — | Obsolete | View Details |
| 64 | 0770380020 O-RING 38,00X2,00 NBR 70 SH | O-RING 38,00X2,00 NBR 70 SH | 3 | $3.99 | Available | 3 |
| 65 | 54501206100 % FORK LEG AX.PASSAG. D17 BREM | % FORK LEG AX.PASSAG. D17 BREM | 1 | — | Obsolete | View Details |
| 66 | 0015070253 HH COLLAR SCREW M 7X25 WS=8 | HH COLLAR SCREW M 7X25 WS=8 | 4 | — | Obsolete | View Details |
| 67 | 54501078144 % ADJUSTMENT SCREW COMP.DAMPIN | % ADJUSTMENT SCREW COMP.DAMPIN | 2 | — | Obsolete | View Details |
| 73 | 54501081000 SEAL RING 8X12X1,5 | SEAL RING 8X12X1,5 | 2 | — | Obsolete | View Details |
| 74 | 54501082000 COLLAR SCREW M8X20 | COLLAR SCREW M8X20 | 2 | — | Obsolete | View Details |
| 80 | 57601106000 % AXLE CLAMP R/S '94 | % AXLE CLAMP R/S '94 | 1 | — | Obsolete | View Details |
| 90 | 54501021380 * SPRING 530 MM 3,8 KG | * SPRING 530 MM 3,8 KG | — | — | Obsolete | View Details |
| 90 | 54501021405 * SPRING 530 MM / 4,0 KG | * SPRING 530 MM / 4,0 KG | — | — | Obsolete | View Details |
| 90 | 54501021420 * SPRING 543 MM / 4,2 KG | * SPRING 543 MM / 4,2 KG | — | — | Obsolete | View Details |
| 90 | 54501021440 SPRING 530 MM / 4,4 KG | SPRING 530 MM / 4,4 KG | 2 | — | Obsolete | View Details |
| 90 | 54501021460 * SPRING 530 MM / 4,6 KG | * SPRING 530 MM / 4,6 KG | — | — | Obsolete | View Details |
| 95 | 50201669244 REPAIR KIT SEAL SHAFT RINGS | REPAIR KIT SEAL SHAFT RINGS | 2 | — | Obsolete | View Details |
| 96 | 50201668244 % REPAIR KIT SEAL S.RINGS+BUSH | % REPAIR KIT SEAL S.RINGS+BUSH | 2 | — | Obsolete | View Details |
| 98 | 306007 FORK OIL SAE5 5 LITER | FORK OIL SAE5 5 LITER | 1 | — | Obsolete | View Details |
