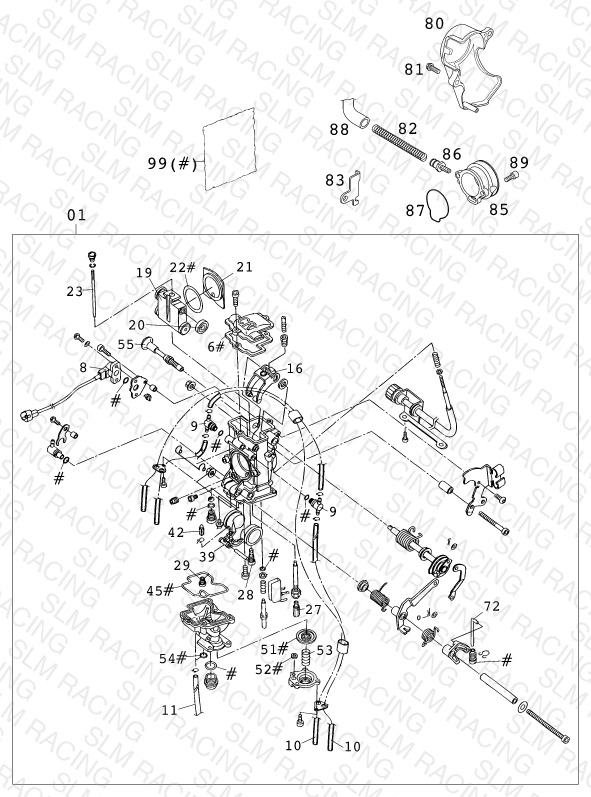

CARBURETOR
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 59031001000 OBERROHR LINKS 07 | OBERROHR LINKS 07 | 1 | — | Check availability | |
| 6 | 59031028000 GASKET CARBURETOR COVER | GASKET CARBURETOR COVER | 1 | — | Check availability | View Details |
| 8 | 59031077000 TPS-SENSOR FCR 200MM 99-03 | TPS-SENSOR FCR 200MM 99-03 | 1 | — | Check availability | View Details |
| 9 | 59031083000 T-JOINT BREATHER HOSE | T-JOINT BREATHER HOSE | 2 | — | Check availability | View Details |
| 10 | 31007007101 PVC-HOSE 4X6MM | PVC-HOSE 4X6MM | 2 | — | Check availability | |
| 11 | 52031137001 PVC-HOSE 3X5MM | PVC-HOSE 3X5MM | 0 | — | Check availability | |
| 16 | 59031035051 LINK ARM THROTTLE VALVE CPL. | LINK ARM THROTTLE VALVE CPL. | 1 | — | Check availability | View Details |
| 19 | 59031035015 THROTTLE VALVE 15 CPL. | THROTTLE VALVE 15 CPL. | 1 | — | Check availability | |
| 20 | 59031035050 BUSHING THROTTLE VALVE | BUSHING THROTTLE VALVE | 1 | — | Check availability | |
| 21 | 59031035053 GASKET PLATE THROTTLE VALVE | GASKET PLATE THROTTLE VALVE | 1 | — | Check availability | |
| 22 | 59031035052 GASKET WASHER THROTTLE VALVE | GASKET WASHER THROTTLE VALVE | 1 | — | Check availability | |
| 23 | 590310340TM JET NEEDLE KEIHIN OBDTM | JET NEEDLE KEIHIN OBDTM | 1 | — | Check availability | View Details |
| 23 | 590310340VR JET NEEDLE KEIHIN OBDVR | JET NEEDLE KEIHIN OBDVR | 1 | — | Check availability | View Details |
| 27 | 59031023172 MAIN JET 172 | MAIN JET 172 | 0 | — | Check availability | View Details |
| 27 | 59031023175 MAIN JET 175 | MAIN JET 175 | 1 | — | Check availability | View Details |
| 27 | 59031023178 MAIN JET 178 | MAIN JET 178 | 0 | — | Check availability | View Details |
| 27 | 59031023180 MAIN JET 180 | MAIN JET 180 | 0 | — | Check availability | View Details |
| 28 | 59031607048 IDLE JET 48 | IDLE JET 48 | 1 | — | Check availability | |
| 28 | 59031607050 IDLE JET 50 | IDLE JET 50 | 0 | — | Check availability | View Details |
| 28 | 59031607052 IDLE JET 52 | IDLE JET 52 | 1 | — | Check availability | View Details |
| 29 | 59031051085 STARTER JET 85 | STARTER JET 85 | 1 | — | Check availability | |
| 39 | 59031009000 FLOAT CPL. | FLOAT CPL. | 1 | — | Check availability | View Details |
| 42 | 59031020000 FLOAT VALVE CPL. | FLOAT VALVE CPL. | 1 | — | Check availability | |
| 45 | 59031010000 GASKET FLOAT CHAMBER | GASKET FLOAT CHAMBER | 1 | — | Check availability | |
| 51 | 59031057000 DIAPHRAGM ACCELERATOR PUMP | DIAPHRAGM ACCELERATOR PUMP | 1 | — | Check availability | View Details |
| 52 | 59031058000 U-RING | U-RING | 1 | — | Check availability | |
| 53 | 59031059000 COIL SPRING | COIL SPRING | 1 | — | Check availability | |
| 54 | 59031058100 O-RING | O-RING | 1 | — | Check availability | |
| 55 | 59031048000 STARTER VALVE CPL. | STARTER VALVE CPL. | 1 | — | Check availability | View Details |
| 72 | 59031061000 ROD ACCELERATOR PUMP | ROD ACCELERATOR PUMP | 1 | — | Check availability | |
| 80 | 59031086000 CARBURETOR COVER RACING 2000 | CARBURETOR COVER RACING 2000 | 1 | — | Check availability | View Details |
| 81 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 2 | — | Check availability | View Details |
| 82 | 32003073000 PRESSURE SPRING | PRESSURE SPRING | 1 | — | Check availability | |
| 83 | 59031029024 SLIDE STOP 24,5MM | SLIDE STOP 24,5MM | 1 | — | Check availability | View Details |
| 85 | 59031040000 INTAKE FUNNEL | INTAKE FUNNEL | 1 | — | Check availability | View Details |
| 86 | 59031040050 CONNECTION SCREW WS=13 | CONNECTION SCREW WS=13 | 1 | — | Check availability | |
| 87 | 59031040010 O-RING FOR INTAKE FUNNEL | O-RING FOR INTAKE FUNNEL | 1 | — | Check availability | |
| 88 | 59031050000 TUBE ENGINE BREATHER 0,71M | TUBE ENGINE BREATHER 0,71M | 1 | — | Check availability | |
| 89 | 0912050123 AH SCREW DIN0912-M 5X12 | AH SCREW DIN0912-M 5X12 | 2 | — | Check availability | |
| 99 | 59031099000 GASKET SET FCR KEIHIN | GASKET SET FCR KEIHIN | 1 | — | Check availability |
