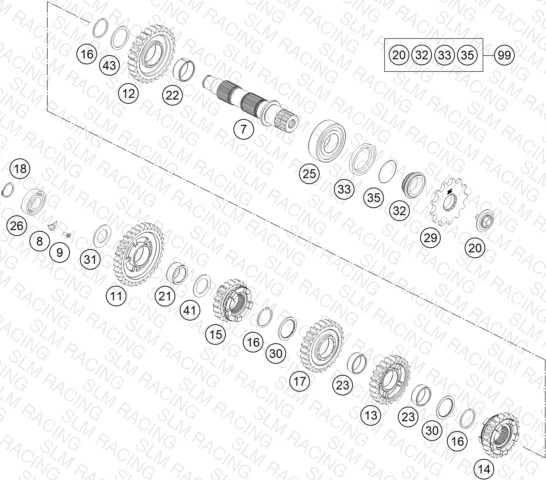

TRANSMISSION II - COUNTERSHAFT
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 7 | 77233110100 Output shaft | Output shaft | 1 | — | Check availability | |
| 8 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 1 | — | Check availability | View Details |
| 9 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 1 | — | Check availability | |
| 11 | 54833211100 Idler gear 1.G. Z=32 | Idler gear 1.G. Z=32 | 1 | — | Check availability | View Details |
| 12 | 54833212100 Idler gear 2 nd. gear T=26 | Idler gear 2 nd. gear T=26 | 1 | — | Check availability | |
| 13 | 54833214100 Idler gear 4.G, Z=23 | Idler gear 4.G, Z=23 | 1 | — | Check availability | View Details |
| 14 | 54833215100 Sliding gear 5th Z=22 | Sliding gear 5th Z=22 | 1 | — | Check availability | View Details |
| 15 | 54833216100 Sliding gear 6 th, Z=20 | Sliding gear 6 th, Z=20 | 1 | — | Check availability | View Details |
| 16 | 0417024000 CIRCLIP WS24 | CIRCLIP WS24 | 3 | — | Check availability | |
| 17 | 54833213100 Idler gear 3th, Z=25 | Idler gear 3th, Z=25 | 1 | — | Check availability | View Details |
| 20 | 59033034044 SCREW 10.9+SPRING WASHER | SCREW 10.9+SPRING WASHER | 1 | — | Check availability | |
| 21 | 0405202612 NEEDLE BEARING K 20X26X12 | NEEDLE BEARING K 20X26X12 | 1 | — | Check availability | |
| 22 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. | NEDDLE BEAR. K24X28X11,9 DIV. | 1 | — | Check availability | |
| 23 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED | NEEDLE BEAR.K 22X26X10 DIVIDED | 1 | — | Check availability | |
| 25 | 49030023000 cylindrical roller bearing NJ2 | cylindrical roller bearing NJ2 | 1 | — | Check availability | |
| 26 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 1 | — | Check availability | |
| 29 | 79233029013 Sprocket 13-t | Sprocket 13-t | 0 | — | Check availability | View Details |
| 29 | 79233129014 ENGINE SPROCKET 14Z | ENGINE SPROCKET 14Z | 1 | — | Check availability | |
| 30 | 54833043000 STOP DISC 25X0,8X30X30X7H | STOP DISC 25X0,8X30X30X7H | 2 | — | Check availability | |
| 31 | 77233020000 STOP DISK 17,2X30X1,3 | STOP DISK 17,2X30X1,3 | 1 | — | Check availability | |
| 32 | 78133014000 SPACER SLEEVE COUNTER | SPACER SLEEVE COUNTER | 1 | — | Check availability | |
| 33 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR | SHAFT SEAL RING 32X45X7 BSLNBR | 1 | — | Check availability | |
| 35 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | — | Check availability | |
| 41 | 54833080000 STOP DISC 20,2X30X1 | STOP DISC 20,2X30X1 | 1 | — | Check availability | |
| 43 | 54833044000 STOP DISC 25X31X1,5 | STOP DISC 25X31X1,5 | 1 | — | Check availability | |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE | COUNTER SHAFT REP.KIT 4 STROKE | 0 | — | Check availability | View Details |
| 18 | 0471170015 CIRCLIP DIN 0471-17X1, 5 | CIRCLIP DIN 0471-17X1, 5 | 1 | — | Check availability |
