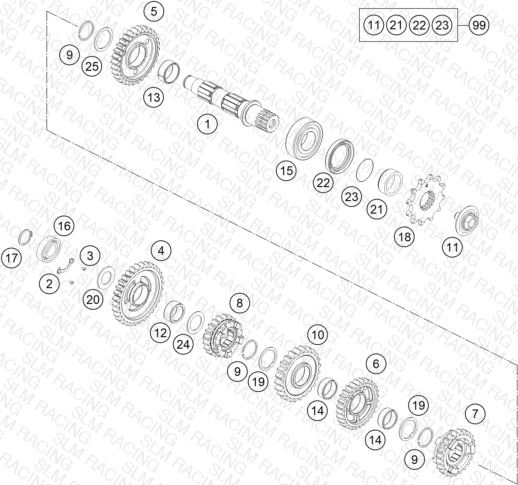

TRANSMISSION II - COUNTERSHAFT
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77733110000 COUNTERSHAFT | COUNTERSHAFT | 1 | — | Check availability | View Details |
| 2 | 78033132000 TAB WASHER BEARING COUNT.SHAFT | TAB WASHER BEARING COUNT.SHAFT | 1 | — | Check availability | |
| 3 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 2 | — | Check availability | |
| 4 | 77733011000 IDLER GEAR 1ST G. T=32 | IDLER GEAR 1ST G. T=32 | 1 | — | Check availability | View Details |
| 5 | 77733112000 IDLER GEAR 2ND G. T=30 | IDLER GEAR 2ND G. T=30 | 1 | — | Check availability | View Details |
| 6 | 77733114100 IDLER GEAR 4.G. Z=28 | IDLER GEAR 4.G. Z=28 | 1 | — | Check availability | View Details |
| 7 | 77733115100 SLIDING GEAR 5.G.,Z=23 | SLIDING GEAR 5.G.,Z=23 | 1 | — | Check availability | View Details |
| 8 | 72033016000 SLIDING GEAR 6TH GEAR, 20T | SLIDING GEAR 6TH GEAR, 20T | 1 | — | Check availability | View Details |
| 9 | 0417024000 CIRCLIP WS24 | CIRCLIP WS24 | 3 | — | Check availability | |
| 10 | 77733113100 IDLER GEAR 3.G. Z=24 | IDLER GEAR 3.G. Z=24 | 1 | — | Check availability | View Details |
| 11 | 59033034044 SCREW 10.9+SPRING WASHER | SCREW 10.9+SPRING WASHER | 1 | — | Check availability | |
| 12 | 0405202612 NEEDLE BEARING K 20X26X12 | NEEDLE BEARING K 20X26X12 | 1 | — | Check availability | |
| 13 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. | NEDDLE BEAR. K24X28X11,9 DIV. | 1 | — | Check availability | |
| 14 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED | NEEDLE BEAR.K 22X26X10 DIVIDED | 2 | — | Check availability | |
| 15 | 49030023000 cylindrical roller bearing NJ2 | cylindrical roller bearing NJ2 | 1 | — | Check availability | |
| 16 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 1 | — | Check availability | |
| 17 | 0471170015 CIRCLIP DIN 0471-17X1, 5 | CIRCLIP DIN 0471-17X1, 5 | 1 | — | Check availability | |
| 18 | 50033029012 FRONT SPROCKET 12-T | FRONT SPROCKET 12-T | 1 | — | Check availability | |
| 19 | 77733043000 STOP DISC 23,4X31X1,5 | STOP DISC 23,4X31X1,5 | 2 | — | Check availability | |
| 20 | 77233020000 STOP DISK 17,2X30X1,3 | STOP DISK 17,2X30X1,3 | 1 | — | Check availability | |
| 21 | 54633014100 SPACER BUSHING 12MM | SPACER BUSHING 12MM | 1 | — | Check availability | |
| 22 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR | SHAFT SEAL RING 32X45X7 BSLNBR | 1 | — | Check availability | |
| 23 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | — | Check availability | |
| 24 | 54833080000 STOP DISC 20,2X30X1 | STOP DISC 20,2X30X1 | 1 | — | Check availability | |
| 25 | 77733044000 STOP DISC 24X32X1,5 | STOP DISC 24X32X1,5 | 1 | — | Check availability | |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE | COUNTER SHAFT REP.KIT 4 STROKE | 0 | — | Check availability | View Details |
| 18 | 50033029013 FRONT SPROCKET 13-T | FRONT SPROCKET 13-T | 0 | — | Check availability | View Details |
| 18 | 50033029014 FRONT SPROCKET 14-T | FRONT SPROCKET 14-T | 0 | — | Check availability | View Details |
