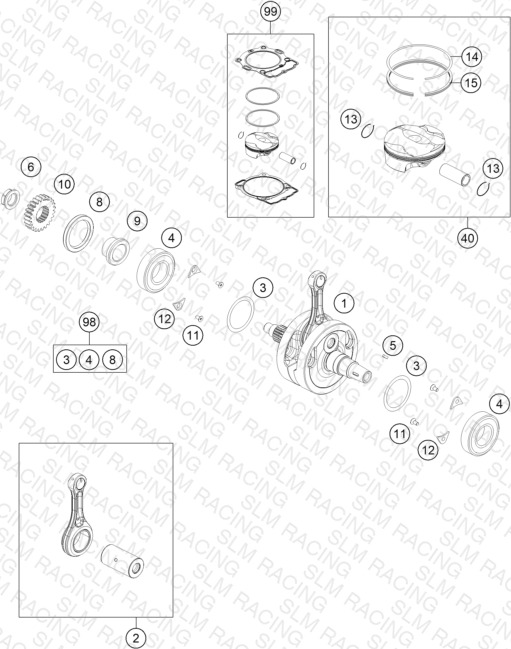

CRANKSHAFT, PISTON
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79230118100 CRANKSHAFT CPL. | CRANKSHAFT CPL. | 1 | — | Check availability | View Details |
| 2 | 79230115144 CONROD REPAIR KIT | CONROD REPAIR KIT | 1 | — | Check availability | |
| 3 | 0988324510 THRUST WASHER 988ST 32X0,1 | THRUST WASHER 988ST 32X0,1 | 0 | — | Check availability | |
| 3 | 0988324515 THRUST WASHER 988ST 32X0,15 | THRUST WASHER 988ST 32X0,15 | 0 | — | Check availability | |
| 3 | 0988324530 THRUST WASHER 988ST 32X0,30 | THRUST WASHER 988ST 32X0,30 | 0 | — | Check availability | |
| 4 | 77330082200 BEARING NJ 206 ECP/HN3C4HVA624 | BEARING NJ 206 ECP/HN3C4HVA624 | 2 | — | Check availability | |
| 5 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | — | Check availability | |
| 6 | 77230029000 NUT PRIMARY WHEEL | NUT PRIMARY WHEEL | 1 | — | Check availability | View Details |
| 8 | 0760405561 SHAFT SEAL RING A 40X55X6 V. | SHAFT SEAL RING A 40X55X6 V. | 1 | — | Check availability | |
| 9 | 77232022000 SPACER BUSHING PRIMARY GEAR | SPACER BUSHING PRIMARY GEAR | 1 | — | Check availability | View Details |
| 10 | 79232023024 PRIMARY GEAR 24T. | PRIMARY GEAR 24T. | 1 | — | Check availability | View Details |
| 11 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 4 | — | Check availability | |
| 12 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 4 | — | Check availability | View Details |
| 13 | 79230274000 CIRCLIP PISTON PIN | CIRCLIP PISTON PIN | 2 | — | Check availability | |
| 14 | 77230030000 COMPRESSIONRING 350 | COMPRESSIONRING 350 | 1 | — | Check availability | |
| 40 | 79230507000 I PISTON I CPL. 350 | PISTON I CPL. 350 | 0 | — | Check availability | |
| 40 | 79230507000 II PISTON II CPL. 350 | PISTON II CPL. 350 | 0 | — | Check availability | |
| 98 | 00050002316 CRANKSHAFT REP. KIT | CRANKSHAFT REP. KIT | 0 | — | Check availability | View Details |
| 99 | 00050000241 PISTON KIT I 350 2017 | PISTON KIT I 350 2017 | 0 | — | Check availability | View Details |
| 99 | 00050000242 PISTON KIT II 350 2017 | PISTON KIT II 350 2017 | 0 | — | Check availability | View Details |
| 15 | 79230232000 OIL SCRAPER RING | OIL SCRAPER RING | 1 | — | Check availability | View Details |
