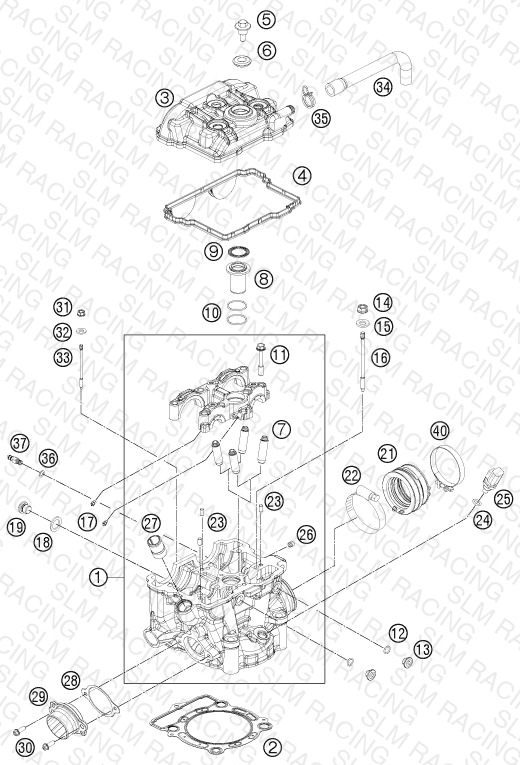

CYLINDER HEAD
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77536020000 CYLINDER HEAD CPL. | CYLINDER HEAD CPL. | 1 | — | Obsolete | View Details |
| 2 | 77230036000 CYLINDER HEAD GASKET | CYLINDER HEAD GASKET | 1 | $70.28 | Available | 1 |
| 3 | 7723605200033 VALVE COVER | VALVE COVER | 1 | $64.34 | Available | 1 |
| 4 | 77236053000 VALVE COVER GASKET | VALVE COVER GASKET | 1 | $18.47 | Available | 1 |
| 5 | 77336054150 VALVE COVER SCREW | VALVE COVER SCREW | 2 | $6.15 | Available | 2 |
| 6 | 77036054050 RUBBER GASKET FOR SCREW 05 | RUBBER GASKET FOR SCREW 05 | 3 | $6.47 | Out of Stock | Notify Me |
| 7 | 77236025001 VALVE GUIDE INTAKT | VALVE GUIDE INTAKT | 4 | $34.20 | Available | 4 |
| 8 | 77236075000 INSERT SPARK-PLUG SHAFT | INSERT SPARK-PLUG SHAFT | 1 | $39.15 | Available | 1 |
| 9 | 77336053050 GASKET SPARK-PLUG SHAFT | GASKET SPARK-PLUG SHAFT | 1 | $6.92 | Backorder — Restocking | 1 |
| 10 | 0770260015 O-RING 1,5x26 | O-RING 1,5x26 | 2 | $3.99 | Available | 2 |
| 11 | 77330067142 HH COLLAR SCREW M7X1X42 | HH COLLAR SCREW M7X1X42 | 8 | $1.99 | Available | 8 |
| 12 | 0770090015 O-RING 9X1,5 NBR | O-RING 9X1,5 NBR | 2 | $2.99 | Available | 2 |
| 13 | 77236080000 SCREW PLUG | SCREW PLUG | 2 | $7.80 | Available | 2 |
| 14 | 77336088210 COLLAR NUT M10X1,25 SW13 | COLLAR NUT M10X1,25 SW13 | 4 | $2.99 | Available | 4 |
| 15 | 77336089010 washer 19x10.5x2.5 | washer 19x10.5x2.5 | 4 | $4.99 | Available | 4 |
| 16 | 77230044000 STUD SCREW M10X1,25 | STUD SCREW M10X1,25 | 4 | $10.44 | Available | 4 |
| 17 | 60030063050 oil jet 50 M5 | oil jet 50 M5 | 1 | $11.10 | Available | 1 |
| 18 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 19 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | $4.99 | Available | 1 |
| 21 | 77236044000 CONNECTION RUBBER EFI | CONNECTION RUBBER EFI | 1 | $42.67 | Available | 1 |
| 22 | 61036047000 Hose clamp GEMI 63mm 05 | Hose clamp GEMI 63mm 05 | 1 | $8.90 | Available | 1 |
| 23 | 0402050980 needle roller DIN 5402 5x9.8 | needle roller DIN 5402 5x9.8 | 2 | $1.99 | Available | 2 |
| 24 | 0770100020 o-ring 10.00x2.00 silicone | o-ring 10.00x2.00 silicone | 1 | $2.99 | Available | 1 |
| 25 | 60011252000 TEMPERAT.-SENSOR WATER LC8 02 | TEMPERAT.-SENSOR WATER LC8 02 | 1 | $43.11 | Available | 1 |
| 26 | 59030296000 SCREW PLUG | SCREW PLUG | 3 | $7.36 | Available | 3 |
| 27 | 58030010200 SCREW IN NOZZLE M20X1,5 | SCREW IN NOZZLE M20X1,5 | 1 | $10.44 | Available | 1 |
| 28 | 77236041000 GASKET EXHAUST FLANGE | GASKET EXHAUST FLANGE | 1 | $12.86 | Available | 1 |
| 29 | 77236139000 ENGINEFLANGE | ENGINEFLANGE | 1 | $58.51 | Available | 1 |
| 30 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 4 | $3.99 | Available | 4 |
| 31 | 77336088106 COLLAR NUT M6X1 SW8 | COLLAR NUT M6X1 SW8 | 1 | $14.84 | Available | 1 |
| 32 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 33 | 77330043000 STUD SCREW M6 | STUD SCREW M6 | 1 | $13.08 | Available | 1 |
| 34 | 77538087000 ENGINE BREATHER TUBE | ENGINE BREATHER TUBE | 1 | $12.97 | Available | 1 |
| 35 | 58431082100 YDNAC-clamp 10173 (16MM) | YDNAC-clamp 10173 (16MM) | 1 | $1.99 | Available | 1 |
| 36 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 37 | 60036023100 VACUUM CONECTION M6/0,5MM | VACUUM CONECTION M6/0,5MM | 1 | $33.21 | Available | 1 |
| 40 | 77236048000 Hose clip GEMI 58 | Hose clip GEMI 58 | 1 | $14.18 | Available | 1 |
