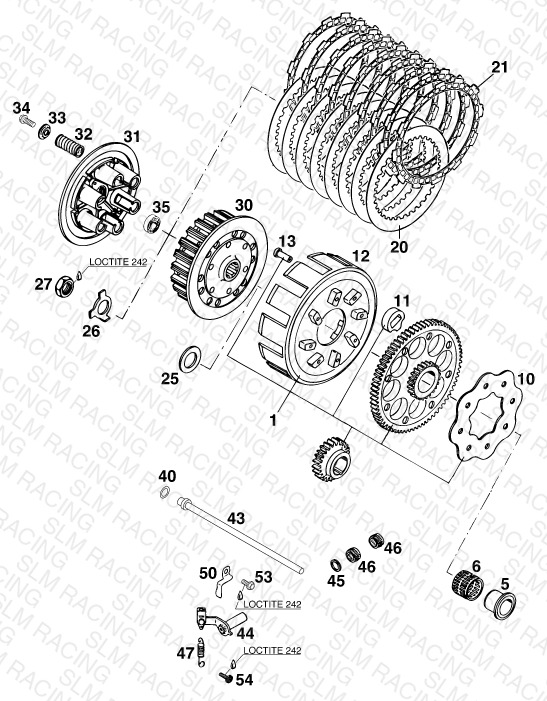

CLUTCH
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 0 | 0988121805 SHIM WASHER DIN0988-12X18X0,50 | SHIM WASHER DIN0988-12X18X0,50 | 0 | — | Check availability | |
| 0 | 0988121810 SHIM WASHER DIN988 12x18x1,0 | SHIM WASHER DIN988 12x18x1,0 | 0 | — | Check availability | View Details |
| 1 | 54632001272 OUTER CLUTCH HUB 72T PRIM. 25T | OUTER CLUTCH HUB 72T PRIM. 25T | 1 | — | Check availability | View Details |
| 1 | 54632001372 OUTER CLUTCH HUB 72T PRIM. 26T | OUTER CLUTCH HUB 72T PRIM. 26T | 1 | — | Check availability | View Details |
| 5 | 50332070000 INNER RING WITH COLLAR | INNER RING WITH COLLAR | 1 | — | Check availability | |
| 6 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | — | Check availability | |
| 10 | 58132028000 RETAINING PLATE | RETAINING PLATE | 1 | — | Check availability | View Details |
| 11 | 58132026000 DAMPING ELEMENT | DAMPING ELEMENT | 8 | — | Check availability | |
| 12 | 54632001200 OUTER CLUTCH HUB LOOSE | OUTER CLUTCH HUB LOOSE | 1 | — | Check availability | View Details |
| 13 | 0733060150 CLUTCH RIVET DIN7338- 6X15 | CLUTCH RIVET DIN7338- 6X15 | 8 | — | Check availability | |
| 20 | 54632012000 STEEL DISK 1,2 MM | STEEL DISK 1,2 MM | 8 | — | Check availability | View Details |
| 21 | 54632011300 LINING DISK 2,7 MM '96 | LINING DISK 2,7 MM '96 | 9 | — | Check availability | View Details |
| 25 | 57532013000 SUPPORTWASHER 22,2X35X3 HARDE. | SUPPORTWASHER 22,2X35X3 HARDE. | 1 | — | Check availability | View Details |
| 26 | 56532018000 LOCK WASHER | LOCK WASHER | 1 | — | Check availability | |
| 27 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | — | Check availability | |
| 30 | 54632002200 INNER CLUTCH HUB | INNER CLUTCH HUB | 1 | — | Check availability | View Details |
| 31 | 58132003100 PRESSURE CAP '96 | PRESSURE CAP '96 | 1 | — | Check availability | |
| 32 | 54632080000 CLUTCH SPRING 2,5X43 8,5W | CLUTCH SPRING 2,5X43 8,5W | 6 | — | Check availability | |
| 33 | 58132081000 SPRING RETAINER 6,2 X 20 X 3,2 | SPRING RETAINER 6,2 X 20 X 3,2 | 6 | — | Check availability | |
| 34 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 6 | — | Check availability | View Details |
| 35 | 0625060010 BALL BEARING 6001 C3 | BALL BEARING 6001 C3 | 1 | — | Check availability | View Details |
| 40 | 0988121802 SHIM WASHER DIN988 12x18x0,2 | SHIM WASHER DIN988 12x18x0,2 | 0 | — | Check availability | View Details |
| 43 | 54632017344 * PUSH ROD CPL 219 MM '96 | * PUSH ROD CPL 219 MM '96 | 1 | — | Check availability | |
| 44 | 54632014544 CLUTCH RELEASE SHAFT '93 | CLUTCH RELEASE SHAFT '93 | 1 | — | Check availability | View Details |
| 45 | 54632090000 SEAL RING DH/GR 12X16X3 | SEAL RING DH/GR 12X16X3 | 1 | — | Check availability | |
| 46 | 50232095000 NEEDLE BEARING HK 1210 | NEEDLE BEARING HK 1210 | 2 | — | Check availability | View Details |
| 47 | 54632050500 RELEASE LEVER SPRING L=33MM93 | RELEASE LEVER SPRING L=33MM93 | 1 | — | Check availability | View Details |
| 50 | 54632016500 * RELEASE RETAINING PLATE '93 | * RELEASE RETAINING PLATE '93 | 1 | — | Check availability | |
| 53 | 0015050123 HH COLLAR SCREW M 5X12 WS=8 | HH COLLAR SCREW M 5X12 WS=8 | 1 | — | Check availability | View Details |
| 54 | 0985050103 OVAL HEAD SCR. DIN7985-M 5X10 | OVAL HEAD SCR. DIN7985-M 5X10 | 1 | — | Check availability |
